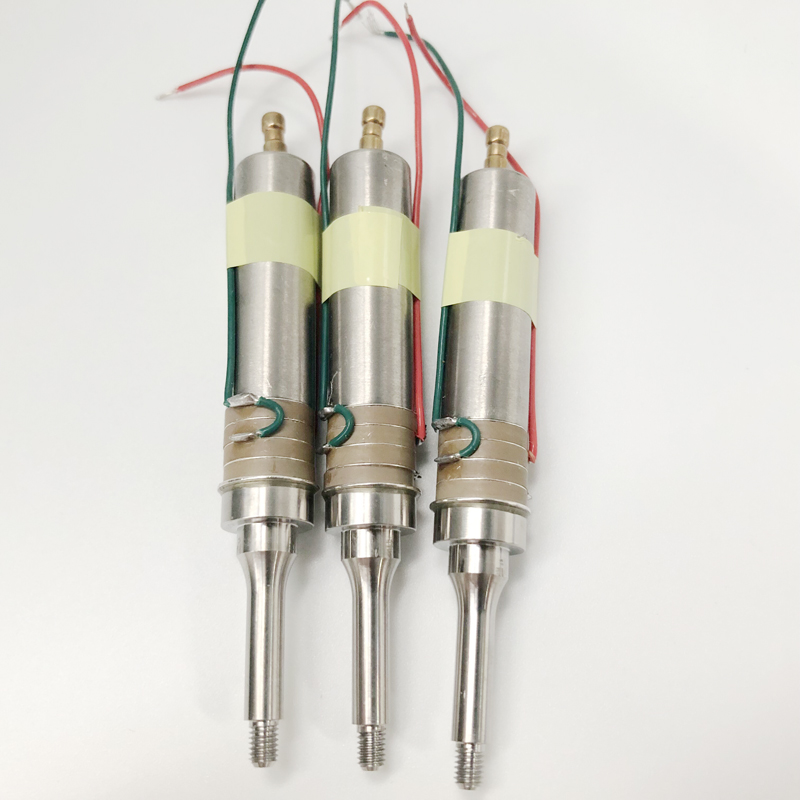

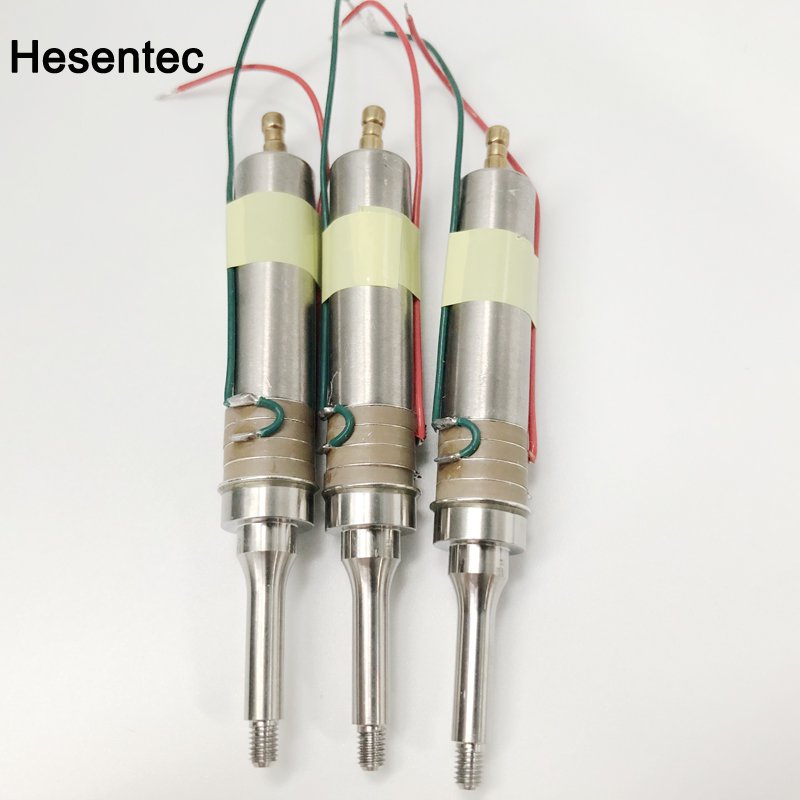

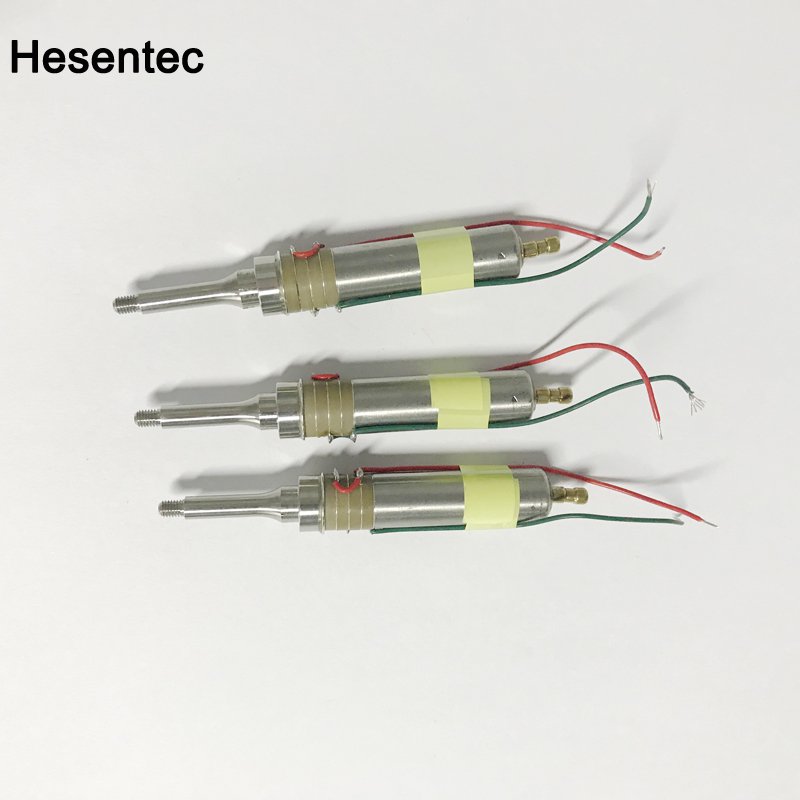

Dental Scaler Ultrasonic Cleaning Teeth Transducer 30KHz

Dental Scaler Ultrasonic Cleaning Teeth Transducer 30KHz Introduction

Dental Scaler Ultrasonic Cleaning Teeth Transducer 30KHz

The ultrasonic tooth cleaner is composed of an ultrasonic generator and a transducer. The generator generates electromagnetic oscillation and amplifies the power. The transducer converts high frequency electric energy into ultrasonic vibration. The frequency of vibration reaches 20,000 to 45,000 Hz. Through the high frequency oscillation of the working head on the transducer, the odontolith attached to the tooth surface is removed. There are many shapes of the working head of the ultrasonic dental cleaner, such as pointed, round and flat. The suitable working head can be selected according to the size and location of the odontolith.

In addition, there is a sprinkling system on the ultrasonic cleaning machine. When the ultrasonic vibration of the working head is started, the water spraying system simultaneously sprinkled water to the working head to form an aerosol. On the one hand, it played the role of cooling head, and another important aspect was the formation of cavitation, that is, there was a rapid collapse of tiny vacuum bubbles in the droplets of spray. It can scour dental stone, plaque and so on, and wash away the broken dental stone and blood stain.
Ultrasound scaling has the advantage of saving time and effort. Generally, it can complete the supragingival scaling of the whole mouth teeth in about an hour.

Type Frequency Power Scaler Interface Water Interface
HS-JEYA30 30khz +/-3khz 20W M3*0.5*4.5 3*7.6



Dental Scaler Ultrasonic Cleaning Teeth Transducer 30KHz
Dental Scaler Ultrasonic Cleaning Teeth Transducer 30KHz
