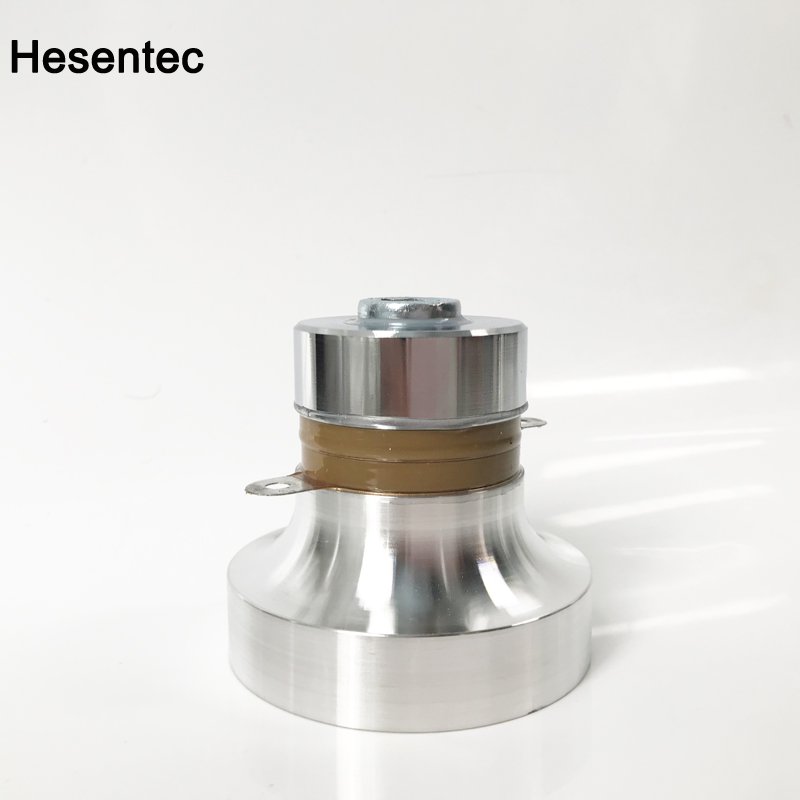

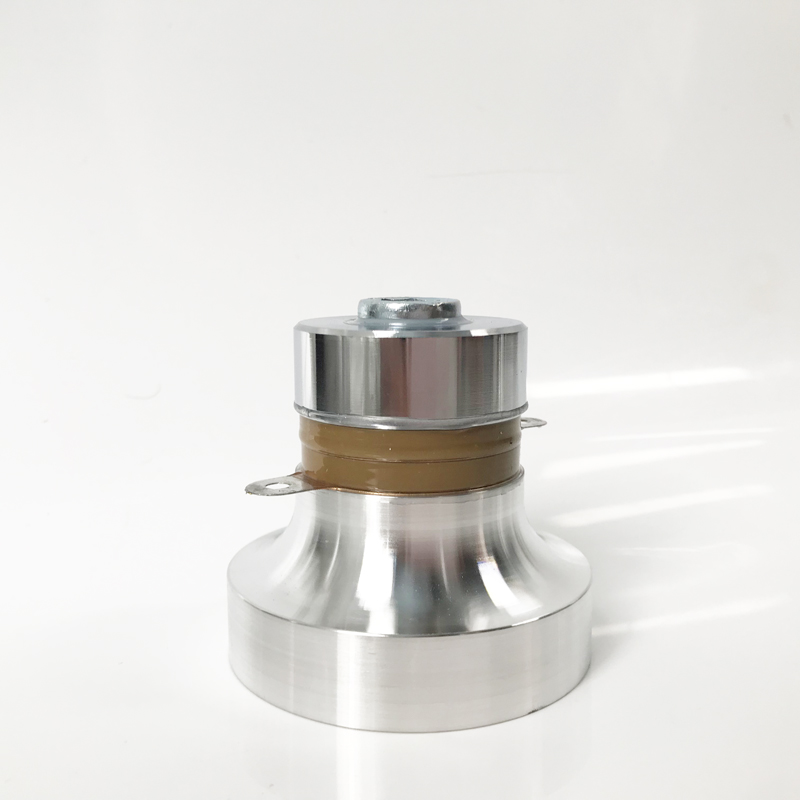

HS-8SE-3828/40 Hesentec Multi Frequency Ultrasonic Transducer
Main Features Of Multi Frequency Ultrasonic Cleaning Transducer:
Ultrasound Cleaning Transducer, also known as ultrasonic vibrator, ultrasonic cleaning transducer, is a kind of ultrasonic transducer, is the core component of the ultrasonic cleaning machine.
Ultrasonic Industry standard name: ultrasonic transducer, belongs to piezoelectric ceramic material, one of the main parts of ultrasonic cleaning machine. In terms of power, the single ultrasonic head is 60W and 100W.In terms of frquency, frequency: 20KHZ, 25KHZ, 28KHZ,33KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, 120KHZ,125KHZ,135khz,200KHZ, conventional multi frequency:28KHZ/40KHZ,40KHZ/130KHZ,40KHZ/80KHZ/120KHZ,20KHZ/40KHZ/60KHZ, respectively; from the shape of the difference is: straight column, horn, etc.
The company mainly produces ultrasonic transducers, non-standard ultrasonic transducers, ultrasonic generators, ultrasonic vibration plates, etc. The company has a complete, scientific quality management system. With integrity, strength, product quality and quality service, it has been recognized by the industry. You are welcome to email us.
|
Model |
Frequency |
Capacitance |
Resonance Impedance |
Size |
Power |
Insulation resistance |
|
（KHz） |
（pF） |
（Ω） |
Radiation Head*Height (mm) |
（W） |
(2500VDC) |
|
HS-8SE-3828/40 |
28/40±1.0 |
3800±10% |
≤30Ω |
65*70 |
60w |
≥100MΩ |
|
HS-8SS-2540/130 |
40/130±2.0 |
3100±10% |
≤30Ω |
25*58 |
20w |
≥100MΩ |
|
HS-4SS-3840/68 |
38/66±2.0 |
4800±10% |
≤20Ω |
50*65 |
50w |
≥100MΩ |
|
HS-4SS-3840/80/130 |
38/79/128±2.0 |
4200±10% |
≤25Ω |
40*54 |
60w |
≥100MΩ |
|
HS-4SS-3840/60/80 |
38/65/84±2.0 |
4800±10% |
≤25Ω |
40*54 |
60w |
≥100MΩ |
|
HS-8SH-5020/40/60 |
20/40/60±2.0 |
5200±10% |
≤25Ω |
78*94 |
120w |
≥100MΩ |
|
HS-4SS-3840/100/160 |
38/100/160±2.0 |
4800±10% |
≤25Ω |
40*57 |
60w |
≥100MΩ |
