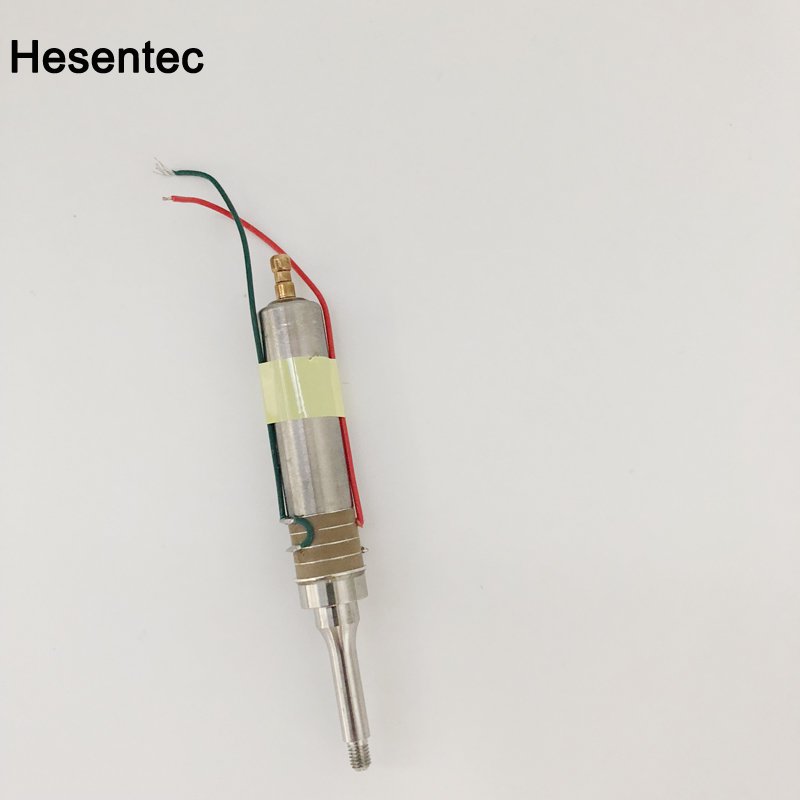

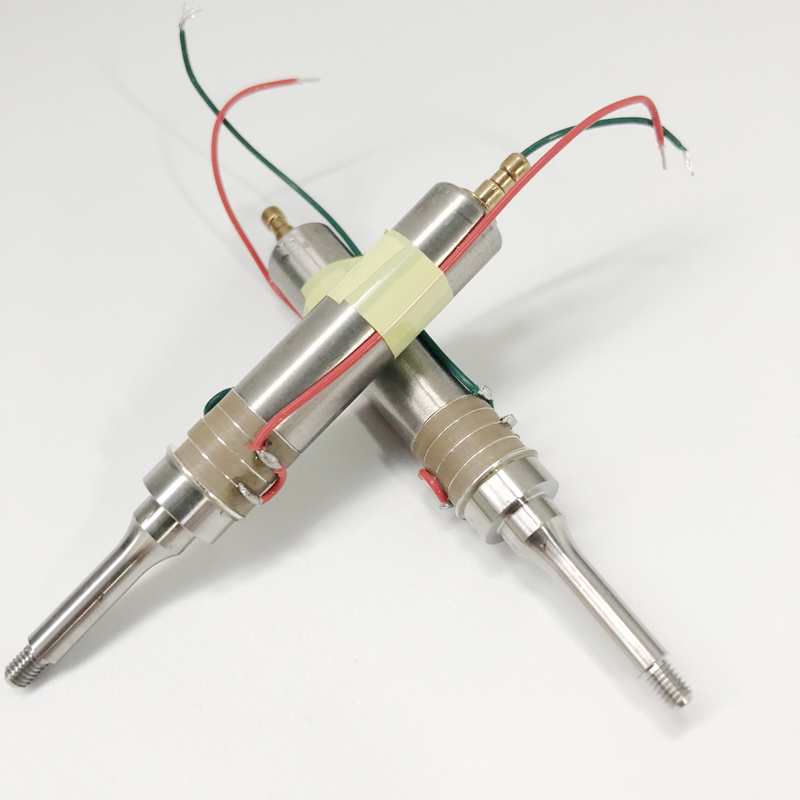

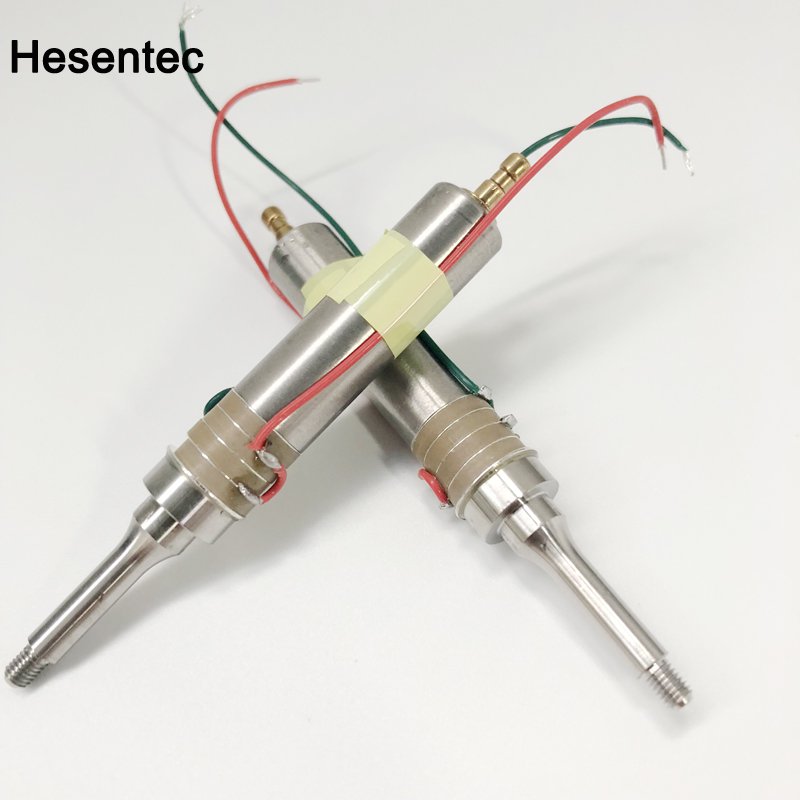

Lightweight Ultrasonic Cleaning Transducer 30KHz

Lightweight Ultrasonic Cleaning Transducer 30KHz

A new type of transducer for ultrasonic dental cleaner can solve the following problems: 1. The existing transducer can reduce the probability of internal fire failure, but the actual processing is difficult; 2. The existing transducer has high noise and low electromechanical conversion efficiency. The technical scheme of the patented technology is: a new type of transducer for ultrasonic dental cleaner, which includes the front horn, the middle piezoelectric ceramic and the back main pole, and the transducer includes the water channel through the whole horn and the main pole; the back end of the horn is provided with a connecting groove, and the front end of the connecting pole is provided with a connecting pole extending into the connecting groove; and the front end of the connecting pole passes through the piezoelectricity. The ceramic through hole is sealed with the connecting groove, and the transducer also includes a sleeve, which is arranged in the connecting groove, one end of the sleeve is connected with the inner wall of the connecting groove, and the other end of the sleeve is connected with the front end face of the connecting column.

Type	Frequency	Power	Scaler Interface	Water Interface
HS-JEYA30	30khz +/-3khz	20W	M3*0.5*4.5	3*7.6
