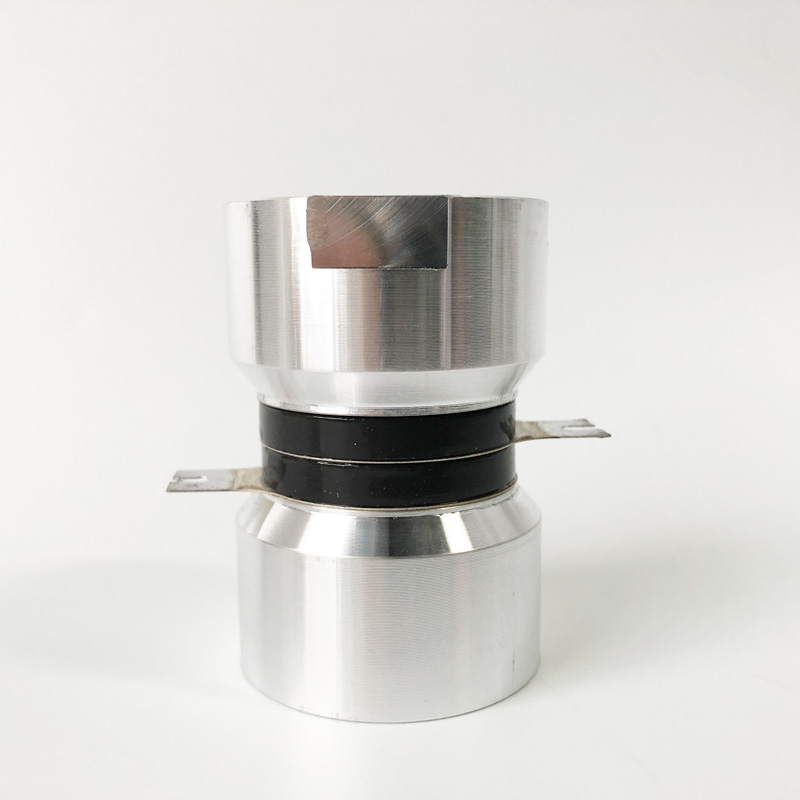

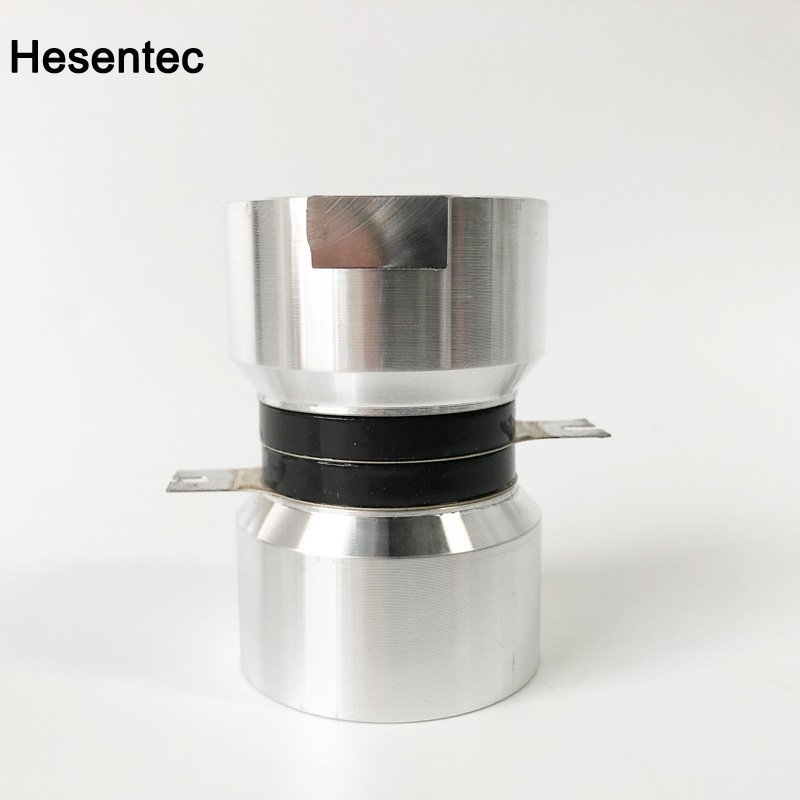

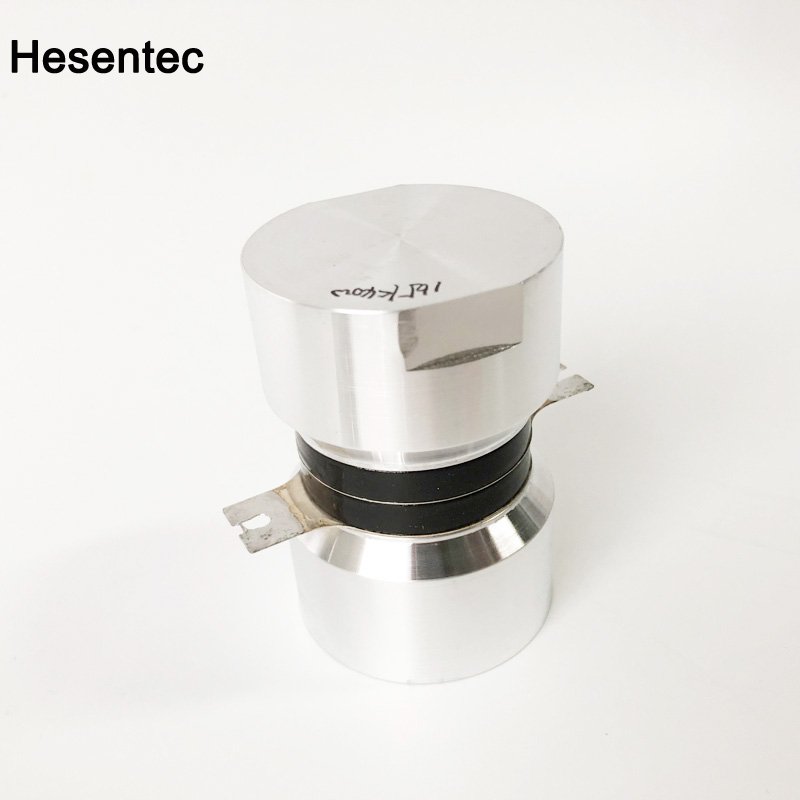

165K 40W Hesen High Frequency Ultrasonic Piezoceramic Transducer

165K 40W Hesen High Frequency Ultrasonic Piezoceramic Transducer Introduction

165K 40W Hesen High Frequency Ultrasonic Piezoceramic Transducer

Shape classification of piezoelectric transducer
   The main forms of ultrasonic transducers according to different designs are:
   1. Column type (NTK type) 2. Inverted horn type (must be able to letter type) 3 steel back cover type 4. Middle clamp aluminum type
   Mainly applicable to, ultrasonic plastic welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic sonochemical equipment.
Piezoelectric transducer composition
1. Central piezoelectric ceramic component 2. Front and rear metal cover 3. Prestressed screw 4. Electrode piece 5. Insulation tube
This sandwich transducer produces stable ultrasonic waves when the load changes, and is the most basic and most important method for obtaining a power ultrasonic driving source.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
(KHz) (pF) (Ω)  Radiation Head*Height (mm) (W) (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

165K 40W Hesen High Frequency Ultrasonic Piezoceramic Transducer
165K 40W Hesen High Frequency Ultrasonic Piezoceramic Transducer
