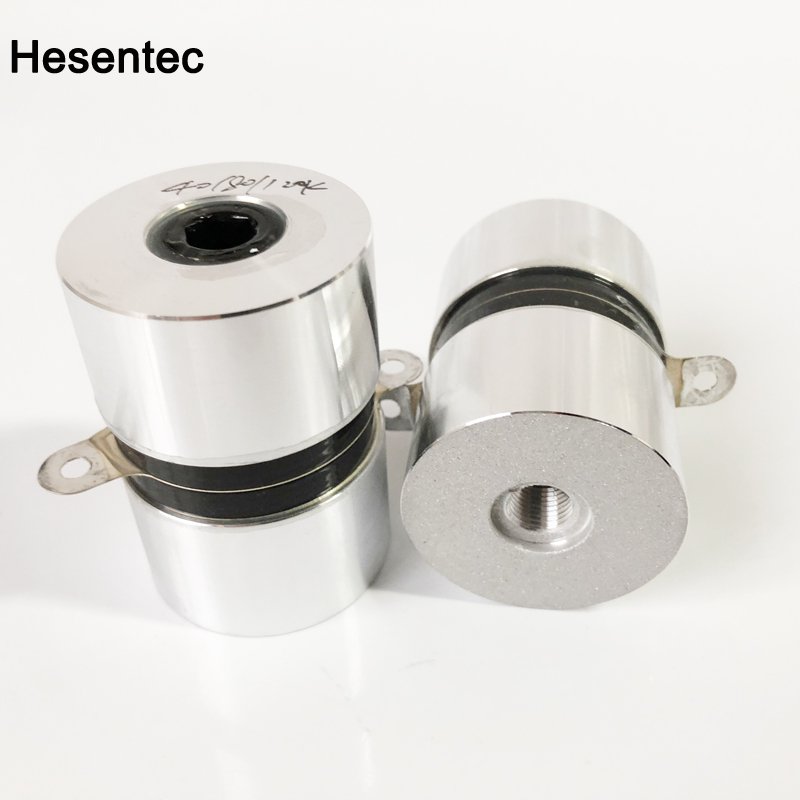

  • 40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer

40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer

40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer Introduction

40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer

Hesen is a high-tech enterprise specializing in the research, development and production of piezoelectric ceramic materials and ultrasonic devices. The company's main products are: piezoelectric ceramic power ultrasonic transducer components, ultrasonic cleaning transducers, ultrasonic piezoelectric transducers, ultrasonic welding transducers, ultrasonic beauty transducers and other products.
The company has gathered many industry elites, established technical cooperation with domestic and foreign companies, tracked the development trend of international piezoelectric ceramics, and constantly pursued innovation. The company uses domestic and foreign raw materials, and combines international piezoelectric ceramic technology and professional R&D team to ensure With leading technology in the industry, it has become a major supplier of many well-known ultrasonic application manufacturers at home and abroad. Products all over the country and exported to Europe and the United States and other places.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

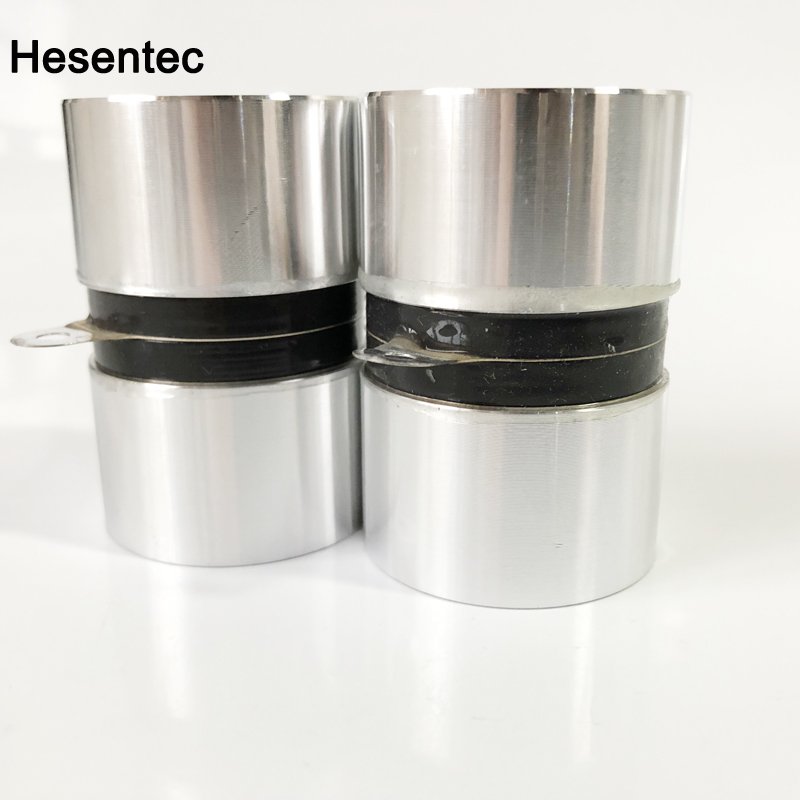

40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer

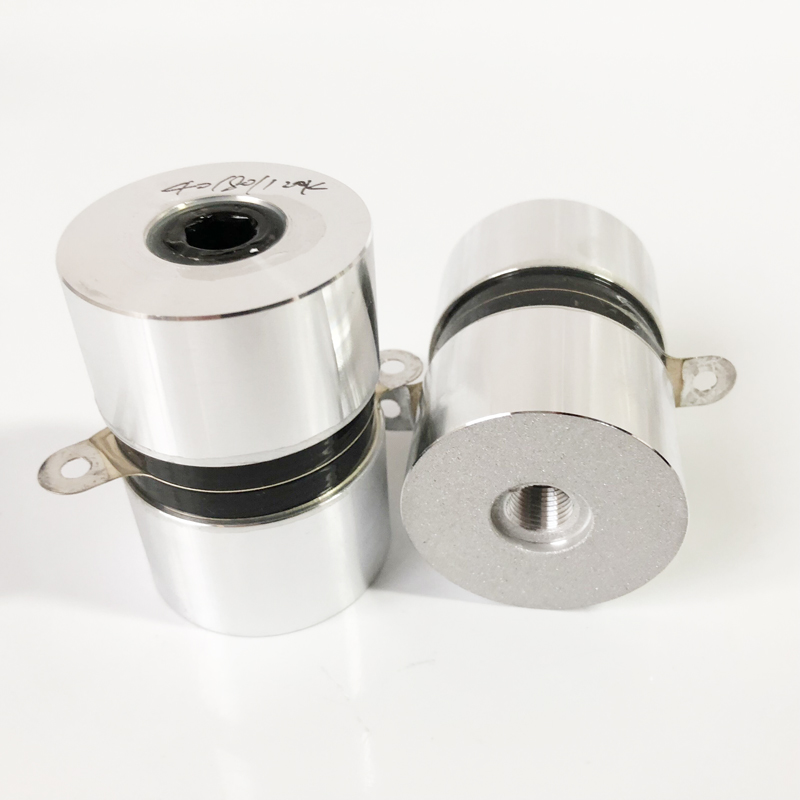

40K/80K/120K Hesen Multi Frequency Ultrasonic Piezo Transducer
