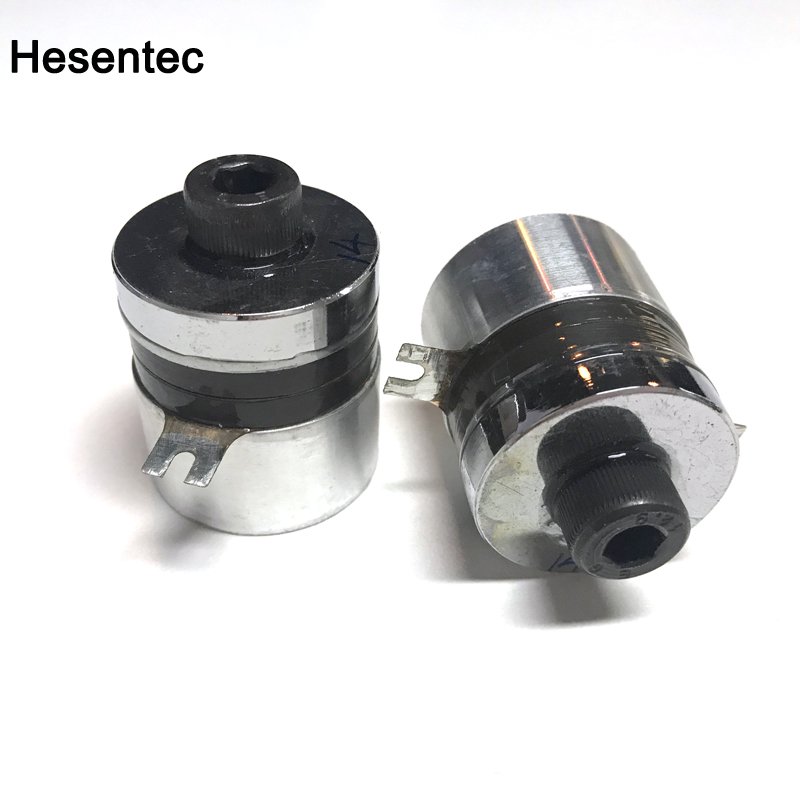

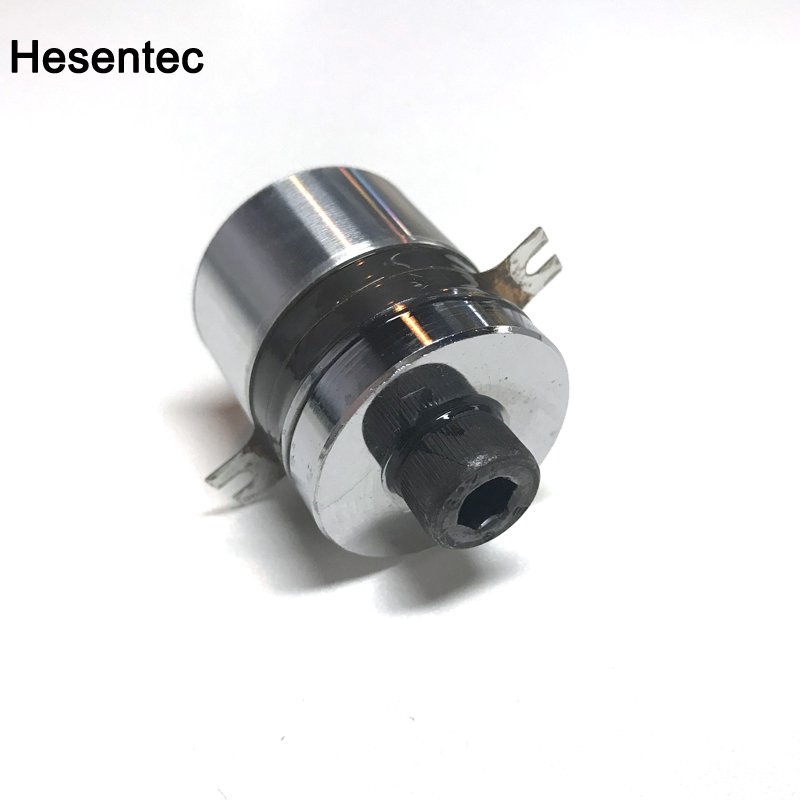

54KHz 35Watts PZT-4 Hesen Ultrasonic Piezoceramic Transducer
Ultrasound oscillator, also known as ultrasonic head, ultrasonic head, is one of the ultrasonic transducers, is the core component of the ultrasonic cleaning machine, we call the whole of the ultrasonic transducer connected with the horn oscillator.
Considering serving customers and improving product quality and reliability, we can provide customers with a complete set of services, such as ultrasonic vibrator (transducer equipped with horn) and ultrasonic head glue, ultrasonic generator, assembly shell, wiring, plug and so on, to minimize unnecessary labor for customers.
At the same time, through professional production, strict quality inspection, as well as long-term use experience, product quality has been more conducive to the best guarantee. All products are swapped in March with a one-year warranty.
Characteristics of ultrasonic oscillator:
1. High performance: high Q value, high conversion efficiency and good quality;
2. The ultrasonic oscillator transducer has large amplitude and excellent performance.
3. Heat resistance of ultrasonic oscillator transducer: piezoelectric ceramic material has good heat resistance, can expand the range of temperature, at the same time, Q value is high, resonance impedance is small, calorific value is small;
4. The product of ultrasonic oscillator transducer has clean appearance, no rust, no obvious depression and scratch.
Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude
Payment Terms:Prepaid by Bnak, T/T and West Union, ect.
Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.
|
Model |
Frequency |
Capacitance |
Resonance Impedance |
Size |
Power |
Insulation resistance |
|
（KHz） |
（pF） |
（Ω） |
Radiation Head*Height (mm) |
（W） |
(2500VDC) |
|
HS-8SH-3825 |
25±0.8 |
3800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-8SH-3828 |
28±0.5 |
3800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-8SH-3833 |
33±0.5 |
3800±10% |
≤20Ω |
48*61 |
60w |
≥100MΩ |
|
HS-8SH-3840 |
40±0.5 |
3800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-8SH-4520 |
21.5±0.8 |
5600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-8SH-4528 |
28±0.5 |
5600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-8SH-5028 |
28±0.5 |
7200±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-3528 |
28 ±0.5 |
4000±10% |
≤20Ω |
45*79 |
50w |
≥100MΩ |
|
HS-4AH-3540 |
40 ±1.0 |
4000±10% |
≤20Ω |
45*55 |
50w |
≥100MΩ |
|
HS-4SH-3825 |
25±0.8 |
4800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-4SH-3828 |
28±0.5 |
4800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-4SS-3833 |
33±0.5 |
4800±10% |
≤20Ω |
48*62 |
60w |
≥100MΩ |
|
HS-4SH-3840 |
40±0.5 |
4800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-4SH-4520 |
22±0.5 |
7600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-4SH-4525 |
25±0.5 |
7600±10% |
≤20Ω |
67*76 |
100w |
≥100MΩ |
|
HS-4SH-4528 |
28±0.5 |
7600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-4SH-4540 |
40±0.5 |
7600±10% |
≤20Ω |
55*53 |
100w |
≥100MΩ |
|
HS-4SH-5028 |
28±0.5 |
9600±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-38100 |
100±1.5 |
4800±10% |
≤25Ω |
40*57 |
60w |
≥100MΩ |
|
HS-4AS-38120 |
120±1.5 |
4800±10% |
≤25Ω |
40*58 |
60w |
≥100MΩ |
|
HS-4AH-25200 |
200±2.0 |
2300±10% |
≤35Ω |
30*35 |
20w |
≥100MΩ |
