  • 600W Hesentec Submersible Ultrasonic Transducer Pack 28KHz/40KHz

600W Hesentec Submersible Ultrasonic Transducer Pack 28KHz/40KHz

600W Hesentec Submersible Ultrasonic Transducer Pack 28KHz/40KHz Introduction

600W Hesentec Submersible Ultrasonic Transducer Pack 28KHz/40KHz

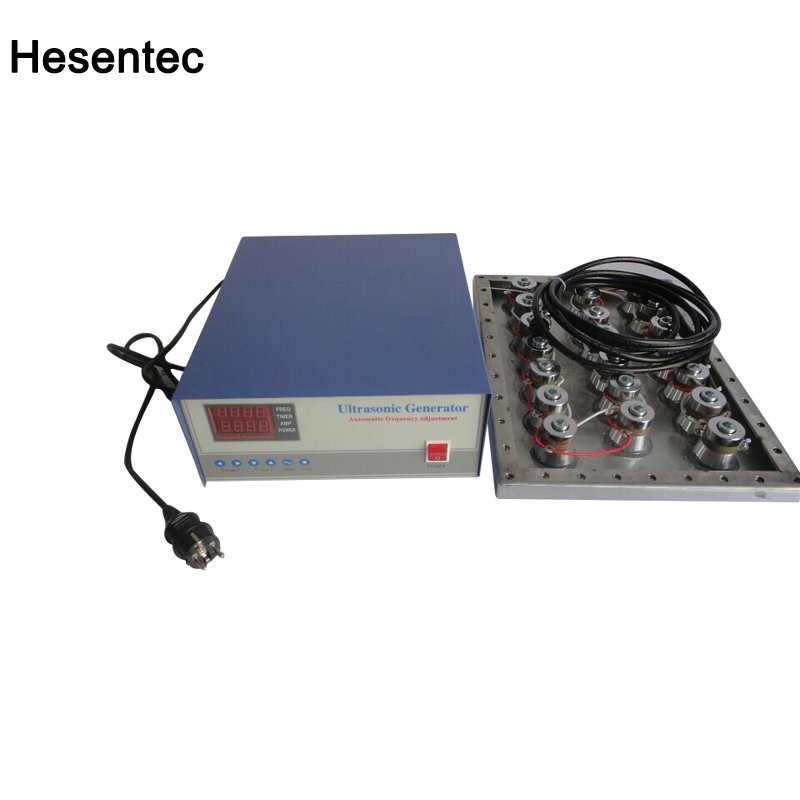

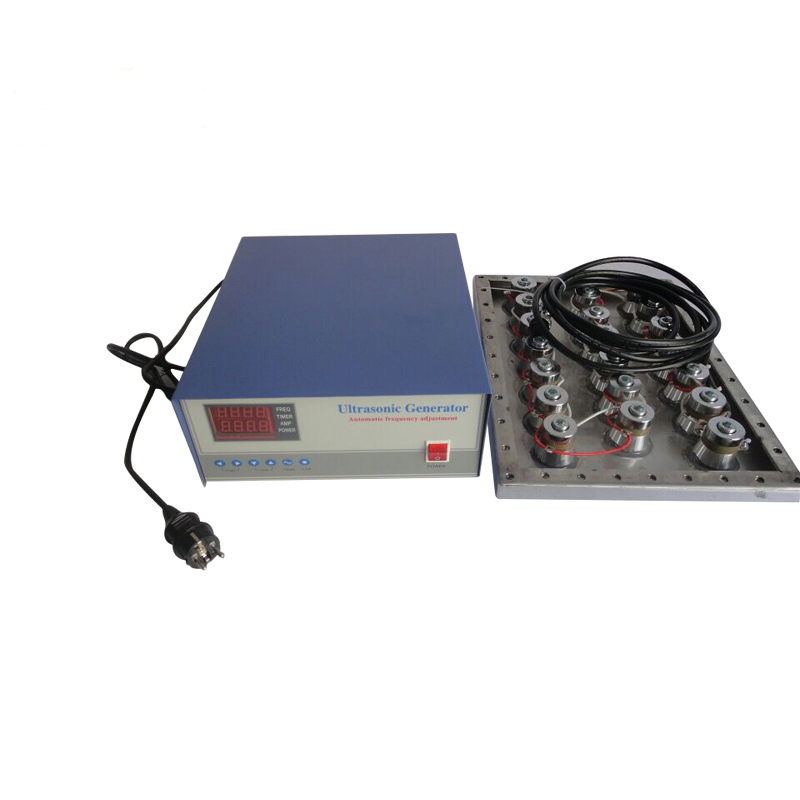

Submersible Ultrasonic Transducer overview

Ultrasonic input type ultrasonic vibration plate

Composition: Ultrasonic vibration plate and ultrasonic generator are composed of two parts.

product structure:

1: All stainless steel structure, acid and alkali resistant, beautiful and durable.

2: The split structure is adopted, and the high frequency connection with the socket is adopted between the vibration plate and the ultrasonic generator, and the use and maintenance are convenient.

3: The installation and layout are flexible, and can be made into bottom shock type, side shock type and top shock type according to different needs to meet various cleaning requirements.

4: Advantages of ultrasonic vibration plate. Easy maintenance

5: When the power of the trough ultrasonic cleaning machine is too small, the input vibrating plate device can be used. If the vibration plate device is added to the existing cleaning tank, it is converted into an ultrasonic cleaning machine. Is also a low cost way


Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）

600W Hesentec Submersible Ultrasonic Transducer Pack 28KHz/40KHz
