  • Waterproof Transducer Submersible Ultrasonic Transducer 20KHz

Waterproof Transducer Submersible Ultrasonic Transducer 20KHz

Waterproof Transducer Submersible Ultrasonic Transducer 20KHz Introduction

Waterproof Transducer Submersible Ultrasonic Transducer 20KHz

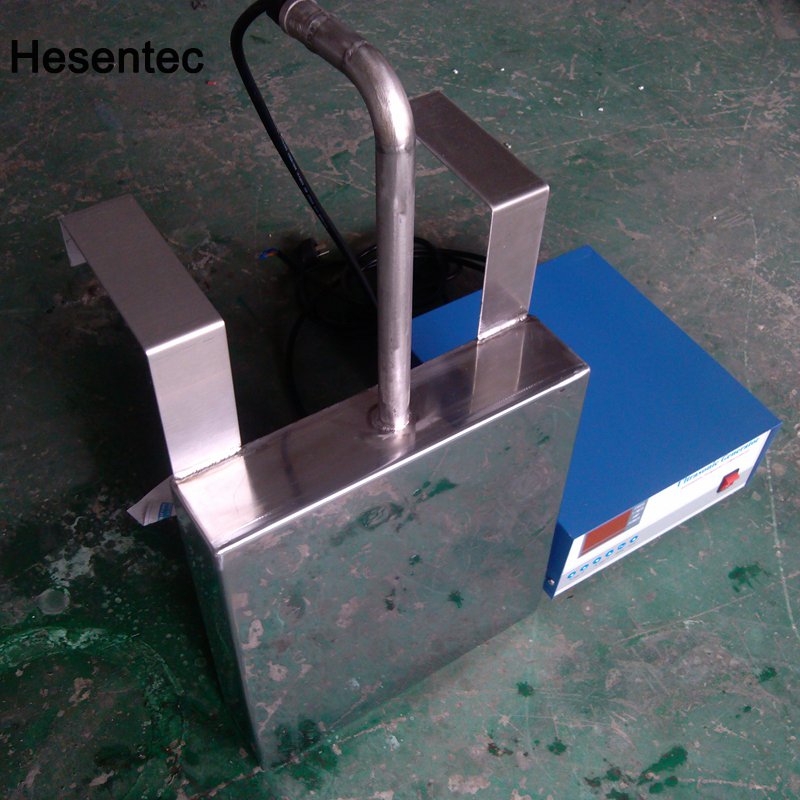

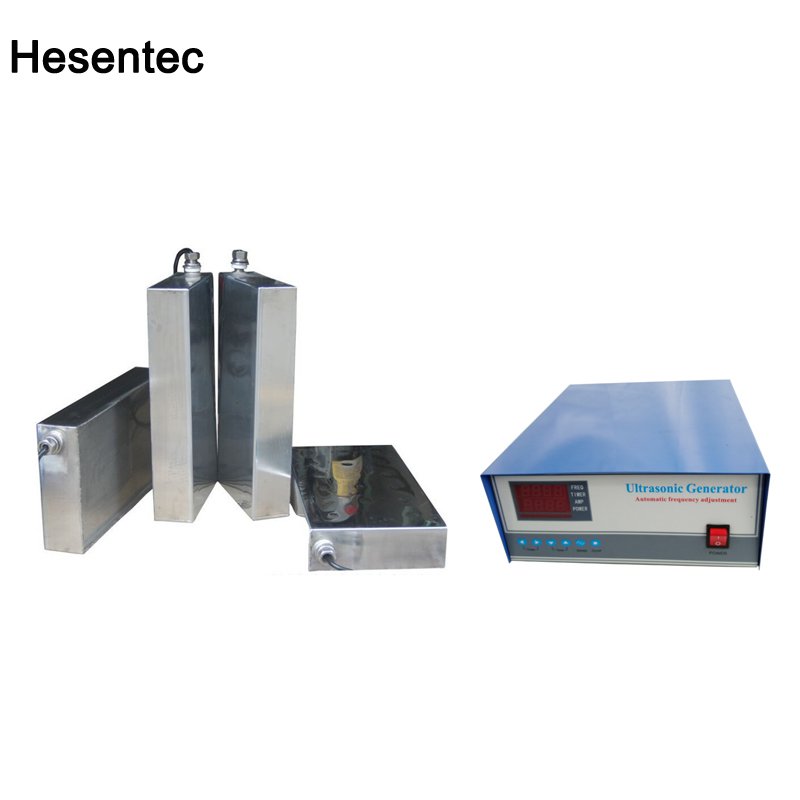

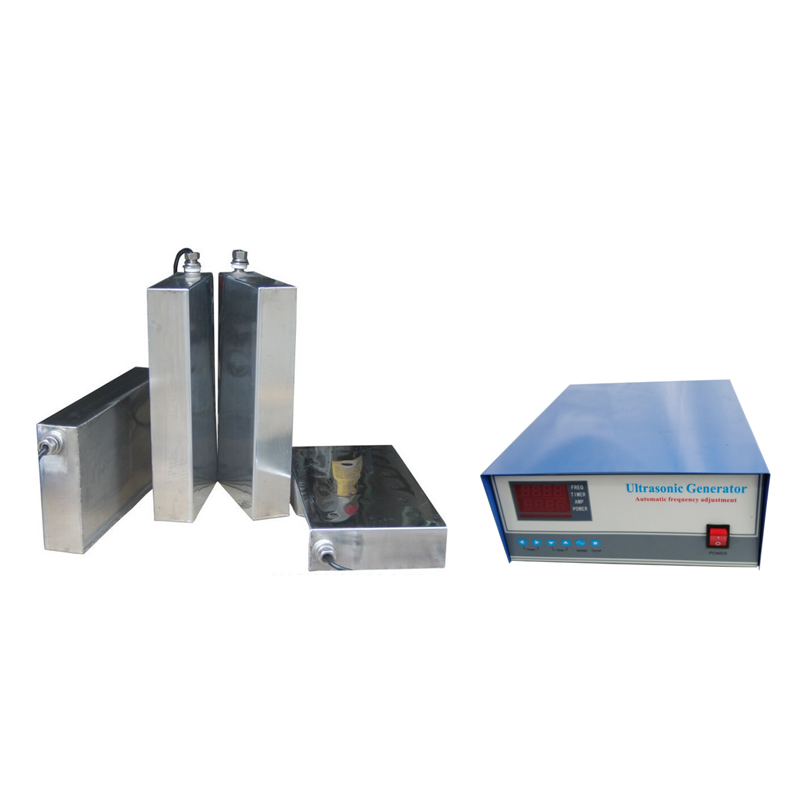

The input type ultrasonic vibration plate (shock plate) consists of two parts: the stainless steel shock box and the ultrasonic generator, which are all sealed by the ultrasonic transducer. When the trough-type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic shock plate is not only suitable for self-construction of cleaning trough or adding ultrasonic function to existing cleaning trough, but also suitable for maintenance and replacement of engineering personnel of existing ultrasonic cleaning equipment. It is easy to operate and suitable for installing ultrasonic wave in large-scale ultrasonic cleaning machine system. It is also suitable for ultrasonic extraction equipment and ultrasonic sewage. The treatment equipment is equipped with ultrasonic wave. It can be flexibly installed in the cleaning tank (top, side, bottom) to achieve different cleaning effects. Ultrasound vibration plate (vibration plate) is generally customized according to user needs and actual working conditions.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）


Waterproof Transducer Submersible Ultrasonic Transducer 20KHz
Waterproof Transducer Submersible Ultrasonic Transducer 20KHz
