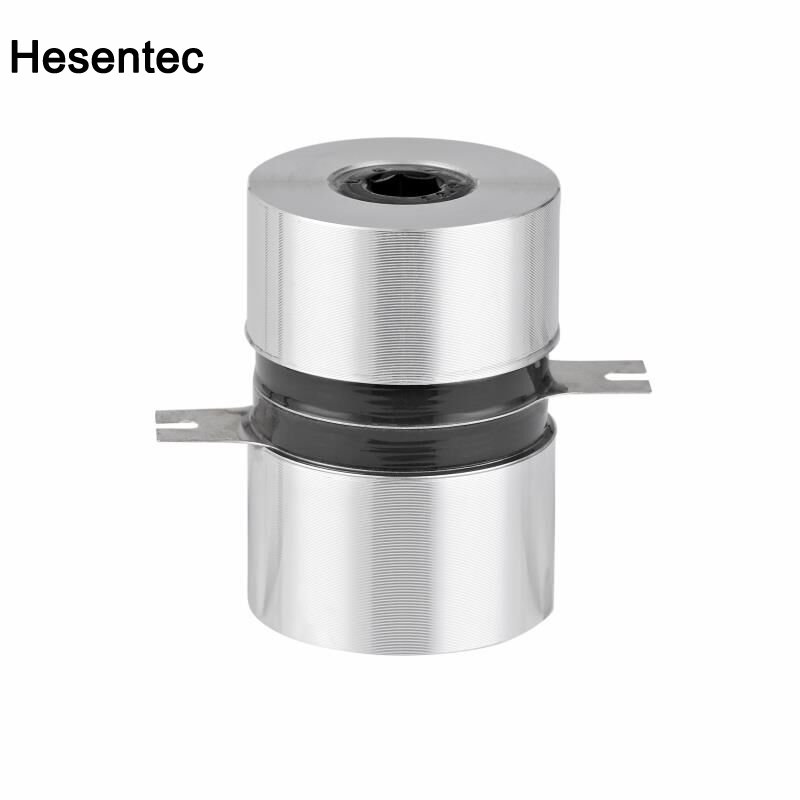

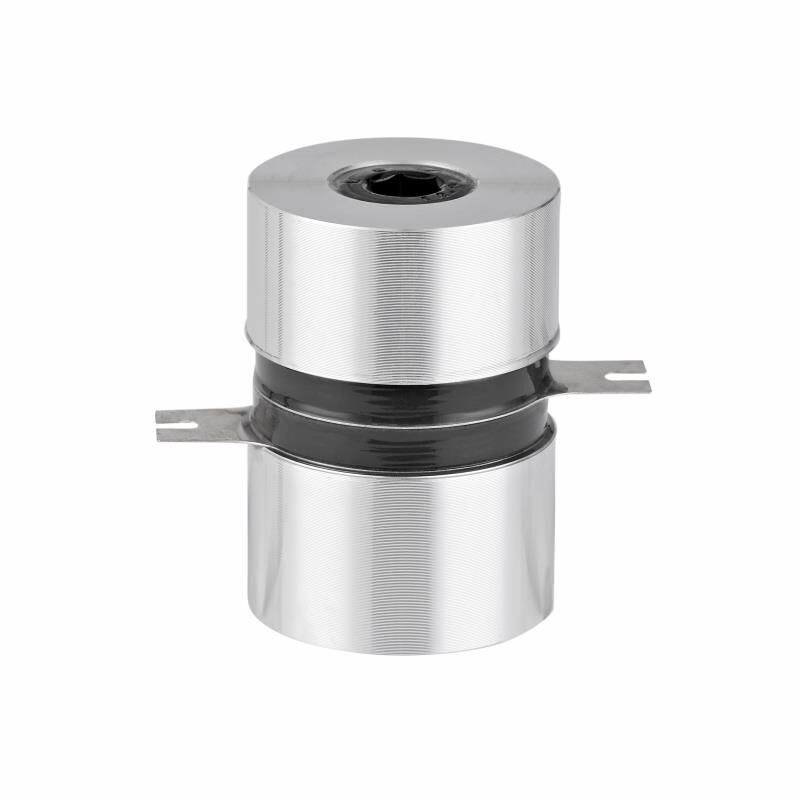

135khz Ultrasonic Transducer For Medical Cleaning

Ultrasonic vibration head installation process:



1. Preparatory Tools: Argon arc welding, No. 10 hexagonal wrench, ferrochrome wire, 2.5 square high temperature wire, 2*2.5 cable, vibrator glue, (stripping pliers, bushing, strapping, sand blasting machine, pipe fittings, etc.). 2. Welding screws: Calculate the placement of the vibrator, weld the screw in the cleared position, then clean the screw around, make sure it is smooth, so as not to affect the installation of the vibrator. Three, glue configuration: the glue should be evenly mixed according to the prescribed proportion. (Mei Rui, Ai Da Da, 4030 glue before mixing, KMD398 glue mixed in the bonding process). 4. Installing vibrator: Apply glue evenly to the bottom of ultrasonic vibrator, squeeze out air and excess glue between the bottom of transducer and the contact surface of cylinder bottom by gently twisting, so that the vibrator is tighter and stainless steel is combined as a whole. Fifth, solidification condensation: put in a relatively high room temperature place solidification, 4-8 hours can be connected, 24 hours after power-on test machine, test machine absolutely not allow air vibration. Note: 1. Metal seed nail machine can also replace argon arc welding. 2, welding screws must be fully welded, otherwise easy to fall off. 3. Regarding solidification, the time should consider the temperature, the temperature is low, the time is long, the temperature is high, it is faster, it is recommended to operate at room temperature, even if the heating should not be overheated, the appropriate best.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
