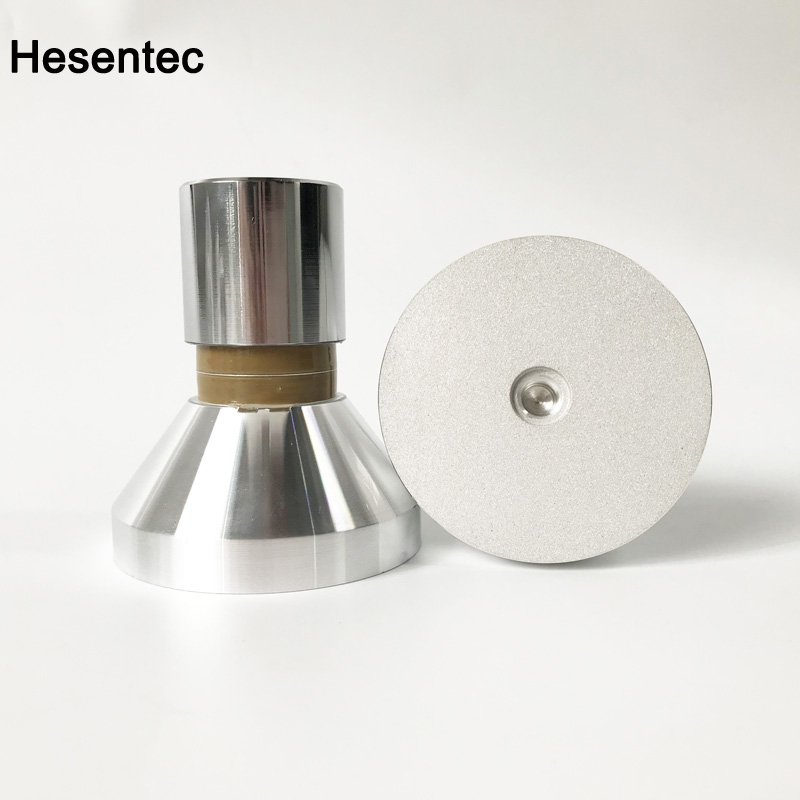

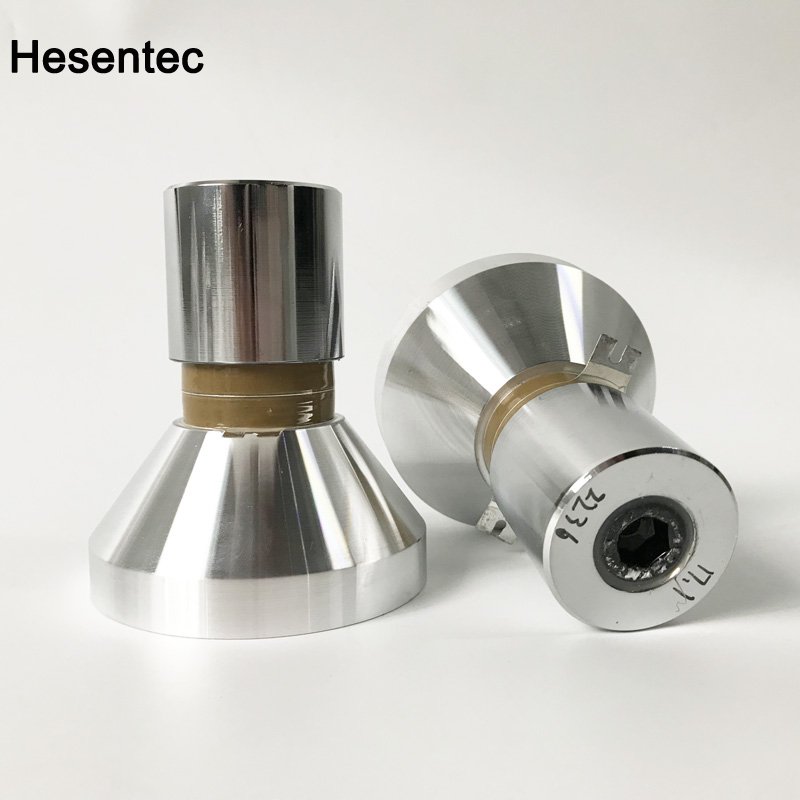

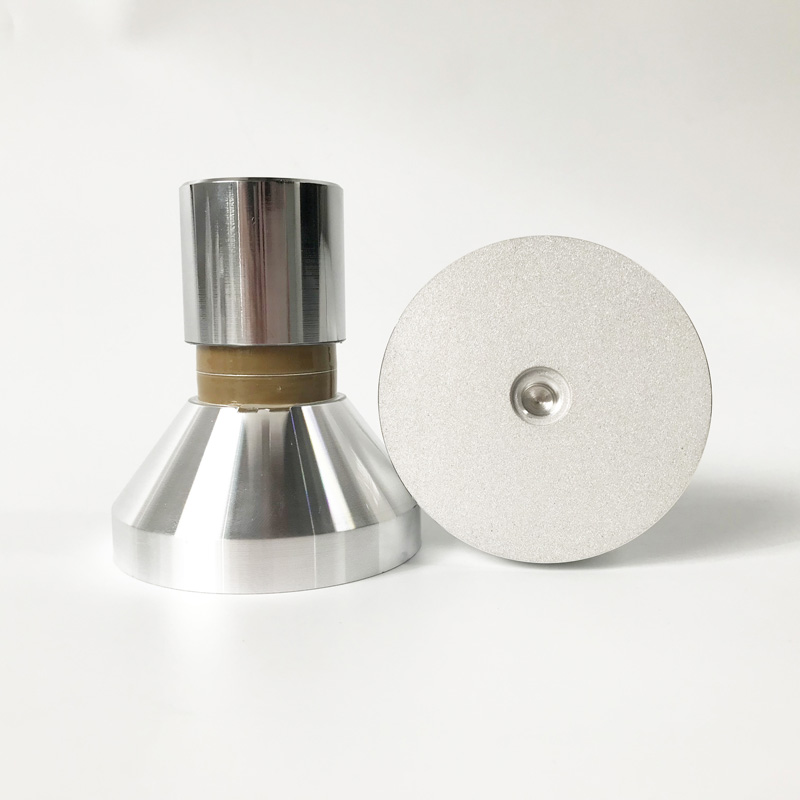

17KHz Hesen Ultrasonic Cleaning Transducer Vibration Sensor

17KHz Hesen Ultrasonic Cleaning Transducer Vibration Sensor

The ultrasonic cleaning transducer mainly consists of shell, sound window (matching layer), piezoelectric ceramic disc transducer, backing, lead cable, Cymbal array receiver and so on. Among them, the piezoelectric ceramic disk transducer plays the same role as the general transducer, mainly used for transmitting and receiving ultrasonic waves; and on the top of the piezoelectric ceramic disk transducer is a Cymbal array receiver, mainly composed of lead cable, Cymbal transducer, metal ring and rubber washer, which is used as an ultrasonic receiver to receive the Doppler generated outside the frequency band of the piezoelectric ceramic disk transducer. Pull back the call signal.
Ultrasound dishwasher cleaning transducer is actually piezoelectric ceramics with the same frequency as its resonant frequency. It uses piezoelectric effect of material to convert electric energy into mechanical vibration. Usually, the ultrasonic wave is generated by the ultrasonic generator, which is transformed into mechanical vibration by the ultrasonic transducer, and then the ultrasonic wave can be generated by the ultrasonic derivation device and the ultrasonic receiving device.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
