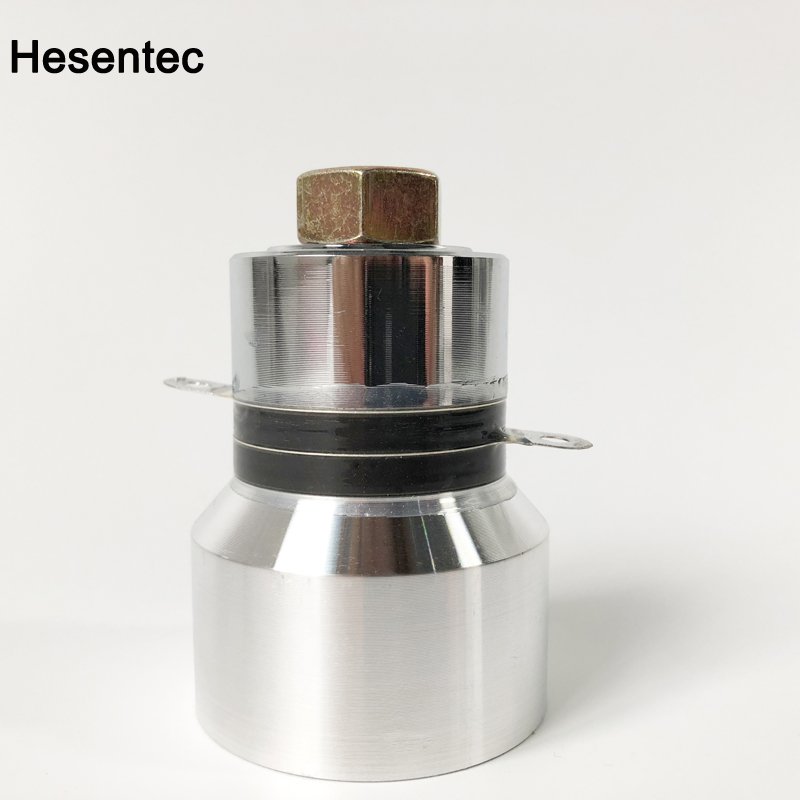

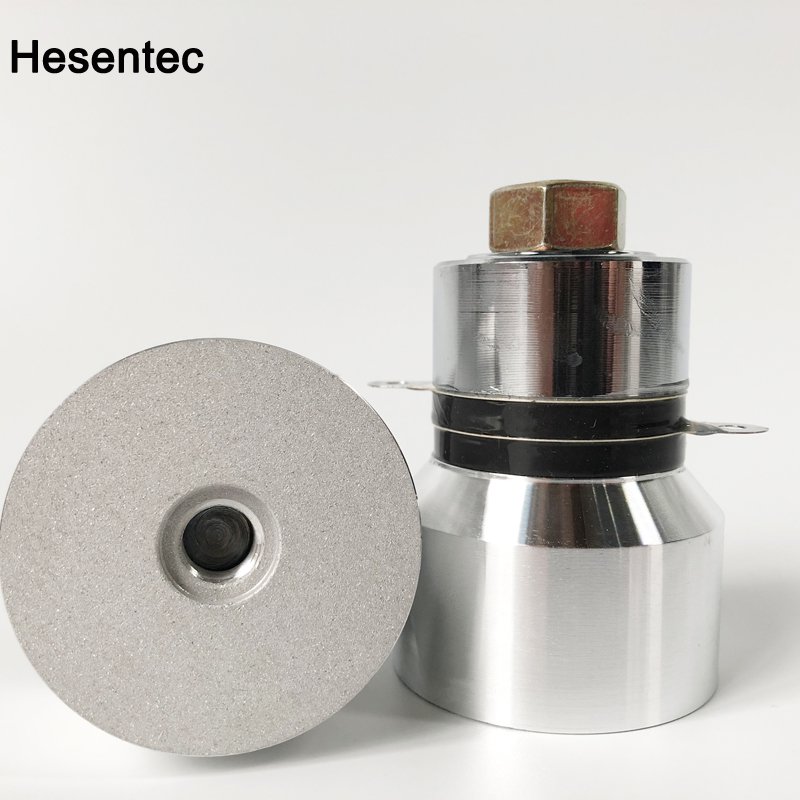

HS-4SS-3868 Hesentec Ultrasonic Transducer

HS-4SS-3868 Hesentec Ultrasonic Transducer

Ultrasonic Cleaning transducer,ultrasonic transducer for cleaner,ultrasonic transducer,ultrasonic transducers,piezoelectric transducer,piezo transducer,BLT ultrasonic transducer,ultrasonic sensor.

The company mainly produces ultrasonic equipment, ultrasonic accessories, ultrasonic cleaner, non-standard ultrasound, ultrasonic transducer, ultrasonic generator, ultrasonic vibration plate, etc. The company has a complete and scientific quality management system. With integrity, strength, product quality and high quality service, it has been recognized by the industry. Welcome friends from all walks of life to visit our company, guidance and business negotiation.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
