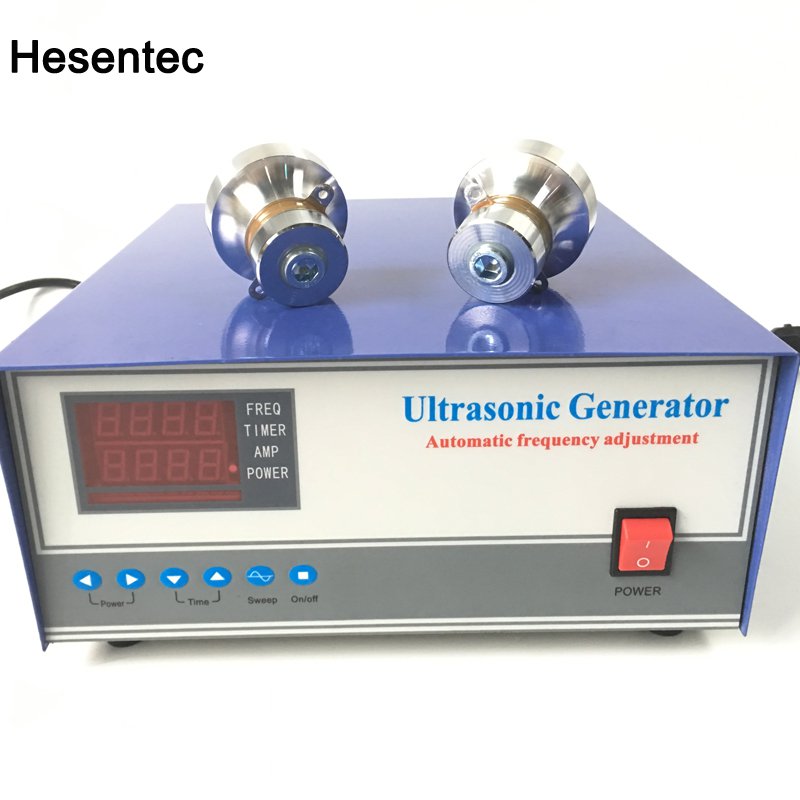

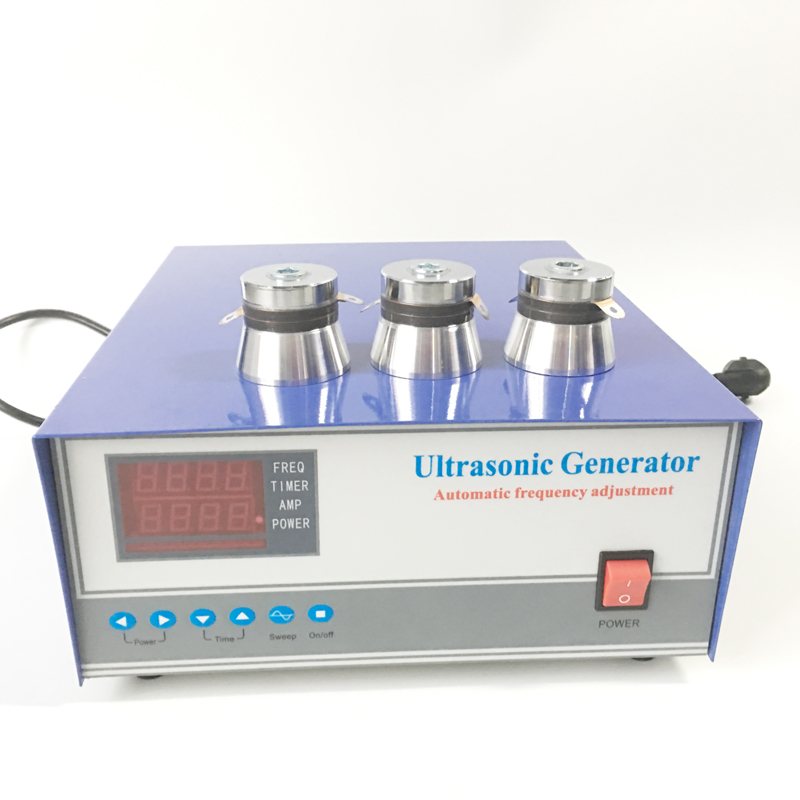

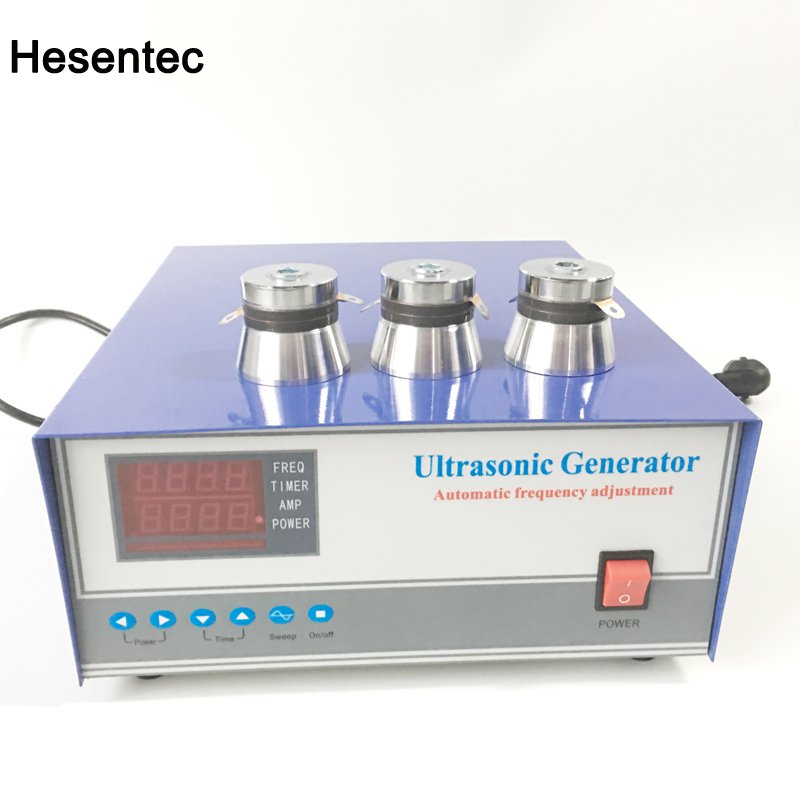

1800W Ultrasonic Generator Power Adjustable Cleaning generator
The frequency range of the ultrasonic wave is at 20-200 kHz, which refers to the frequency of the shock, the number of waves per second (or the number of repeated changes), and the power is the energy of the shock. The result may be different when an object is affected by the same energy, but the frequency is different. Of course, the frequency is the same, but the power is different (the effect of the ultrasonic wave with different energy is different. "
The frequency of the ultrasonic generator is fixed in some equipment, such as the ultrasonic humidifier, only working at the design frequency, but can adjust the output power, but in some equipment, the setting has a certain adjustment range for the user to adjust, that is to say, the frequency of the ultrasonic generator can be adjusted in these devices. And should be adjusted in use: if in the use of large ultrasonic cleaning machine, in order to make the cleaning device in the resonance state when cleaning, after setting the cleaning power, with the micro tune output ultrasonic frequency, so that the cleaning effect is best.
Our service:
1.1and half years free maintenance, all lifetime maintenance service from us;
2. Rechangable within a month, Reply your enquiry in 24 working hours.
3. Experienced staffs answer all your questions in fluent English.
4. OEM is available if the quantity is large.
5. We assure our product of quality, with innovative design, industrial grade quality circuit board, advanced production line and strict quality control procedures, the failure rate is less than 0.01%, which is the lowest in this line.
Shipping information:
1. First step: Seal this ultrasonic cleaning machine in PP bags
2. Second step: Use PU foams to fasten and fix the machine
3. The last step: Package it in carton or colour box, seal it, and put up packaging list
1800W Ultrasonic Clear Generator Power Adjustable Digital Ultrasonic generator
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
