20khz ultrasonic generator cleaning Introduction

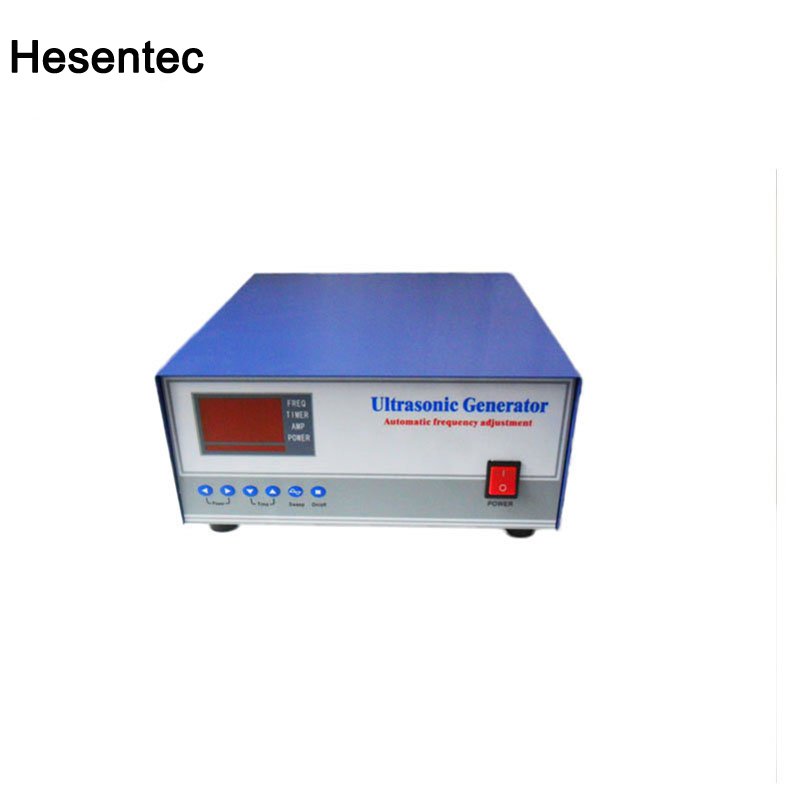

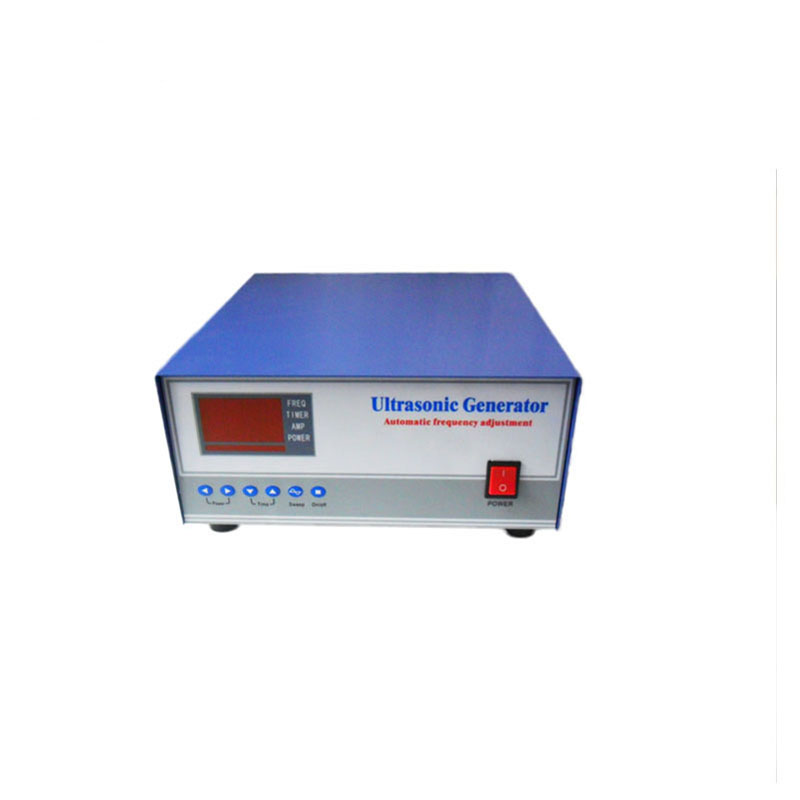

An automatic frequency tracking power ultrasonic generator, including a DC power supply (1), a pulse signal generating circuit (2), a switching power amplifier circuit (5) and a harmonic loop (6), is characterized by a A. resonant circuit (6) consisting of a matching transformer B and a transducer G with impedance conversion, electrical energy transmission and the three heavy distribution sense of distribution; B. The power sampling signal output by the resonant circuit (6) is connected to the phase comparison circuit (7) and the pulse signal generating circuit (2), which is converted to a mechanical oscillation of the same frequency by the piezoelectric inverse effect of the transducer.
The form of the audio longitudinal wave is radiated in the cleaning fluid. Due to the positive pressure and negative pressure alternating effects of the propagation of super audio longitudinal waves, there are numerous micro waves exceeding 1000 atmospheres.
The small bubbles are burst at any time, forming a slight partial high pressure bombardment on the surface of the cleaning material, so that the dirt on the surface and the crevice of the body is spalling quickly.
The "cavitation effect" characteristic of sound wave cleaning.

new ultrasonic generators adopt international leading high-frequency laser, which more stable and more intensive. Compared with the formers, it can clean more complete and faster. Coupled with the unique anti-corrosion technology, guarantee the using environment unlimited. Besides, adopt the imported international leading power tube drive, greatly enhance the stability of the product, its transferring rate reach above 95%.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
