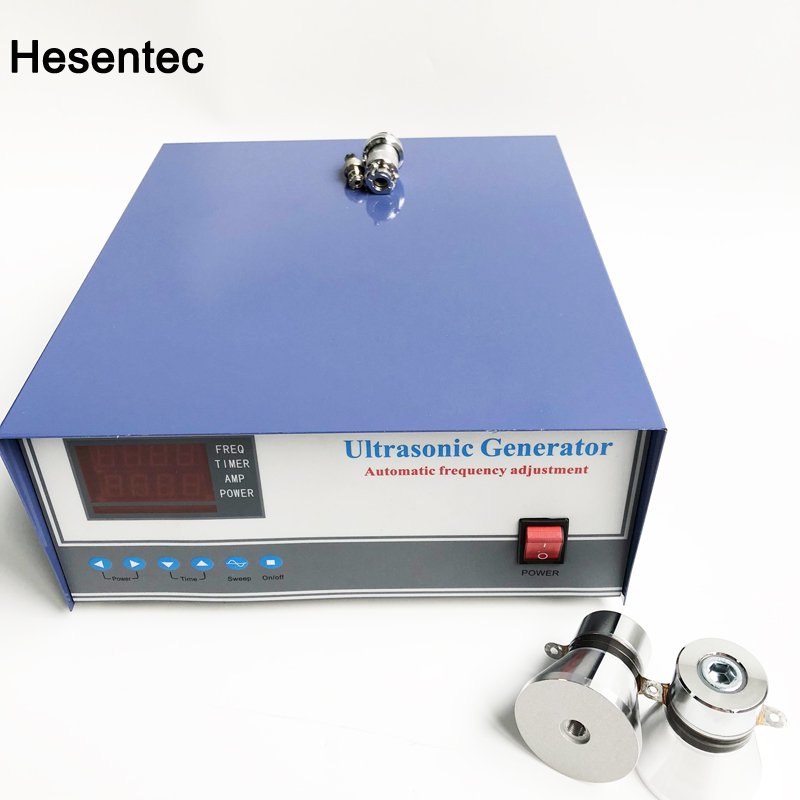

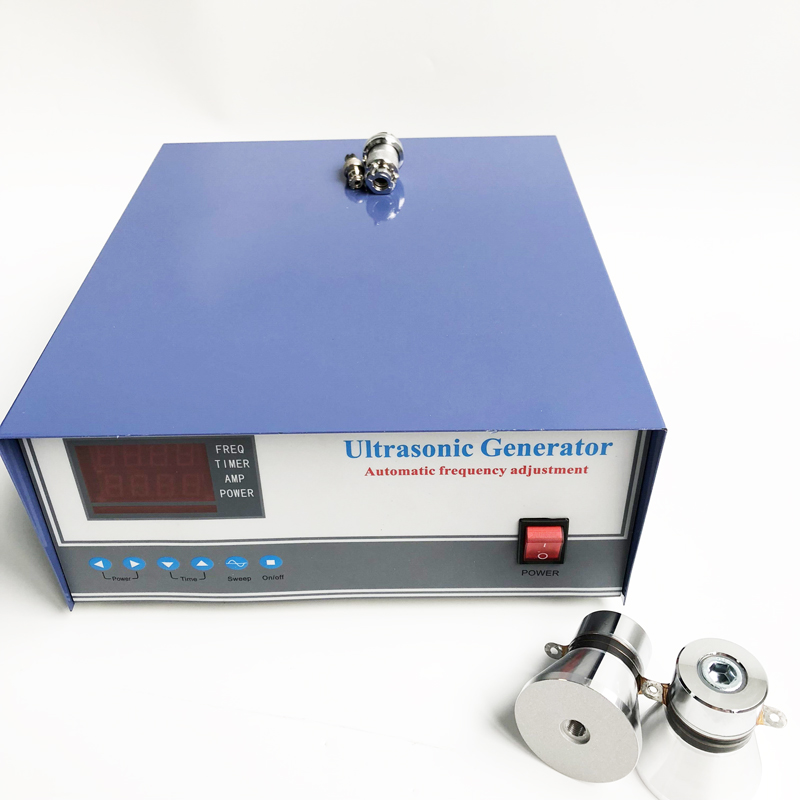

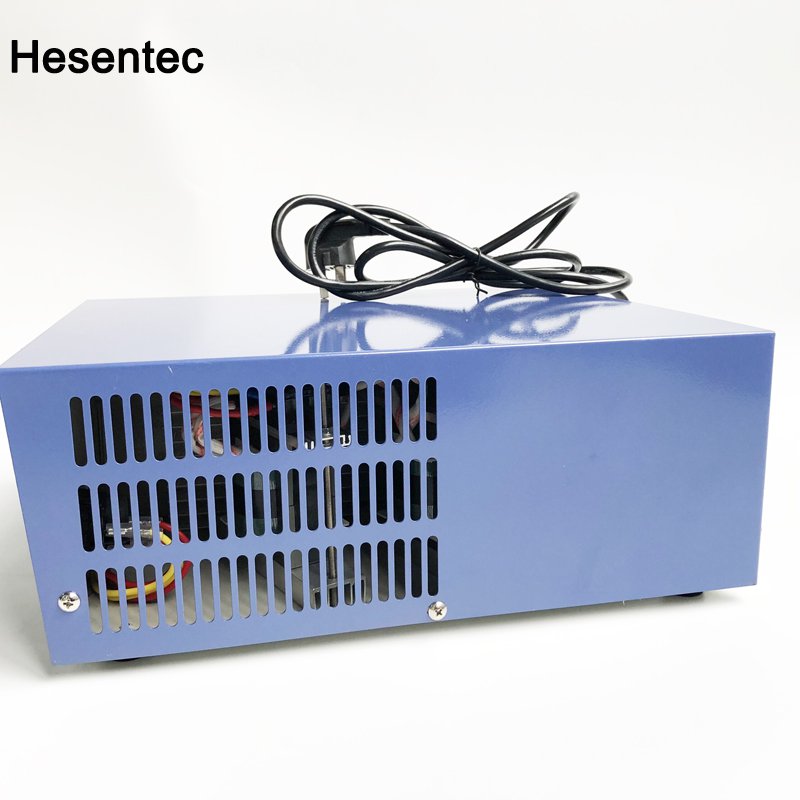

28K 1800W Ultrasonic Generator Transmitter For Cleaning Machine
The ordinary power ultrasonic generator usually uses the fixed frequency and the ultrasonic transducer to supply the energy, and the resonance is resonate with the equivalent capacitance of the inductor and the transducer. This instrument has two shortcomings as follows, one is that the equivalent capacitance resonance frequency of the matching inductor and the transducer can not be guaranteed on the inherent mechanical oscillation frequency of the transducer. (even when the frequency of the mechanical oscillation is tuned, the Q value of the resonant circuit is very high and the frequency band is very narrow.) one is that in the power ultrasonic vibration processing system, the changes in the mechanical load cause the changes of the system parameters (such as the resonant frequency point of the system, the equivalent impedance of the negative load, etc.), and the power ultrasonic generator. The frequency of the transducer does not change, and the amplitude of the transducer decreases.
Our service:
1.1and half years free maintenance, all lifetime maintenance service from us;
2. Rechangable within a month, Reply your enquiry in 24 working hours.
3. Experienced staffs answer all your questions in fluent English.
4. OEM is available if the quantity is large.
5. We assure our product of quality, with innovative design, industrial grade quality circuit board, advanced production line and strict quality control procedures, the failure rate is less than 0.01%, which is the lowest in this line.
Shipping information:
1. First step: Seal this ultrasonic cleaning machine in PP bags
2. Second step: Use PU foams to fasten and fix the machine
3. The last step: Package it in carton or colour box, seal it, and put up packaging list
Crest Ultrasonic Cleaner Generator 1500W , Ultrasonic Supply Power For Cleaning
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
