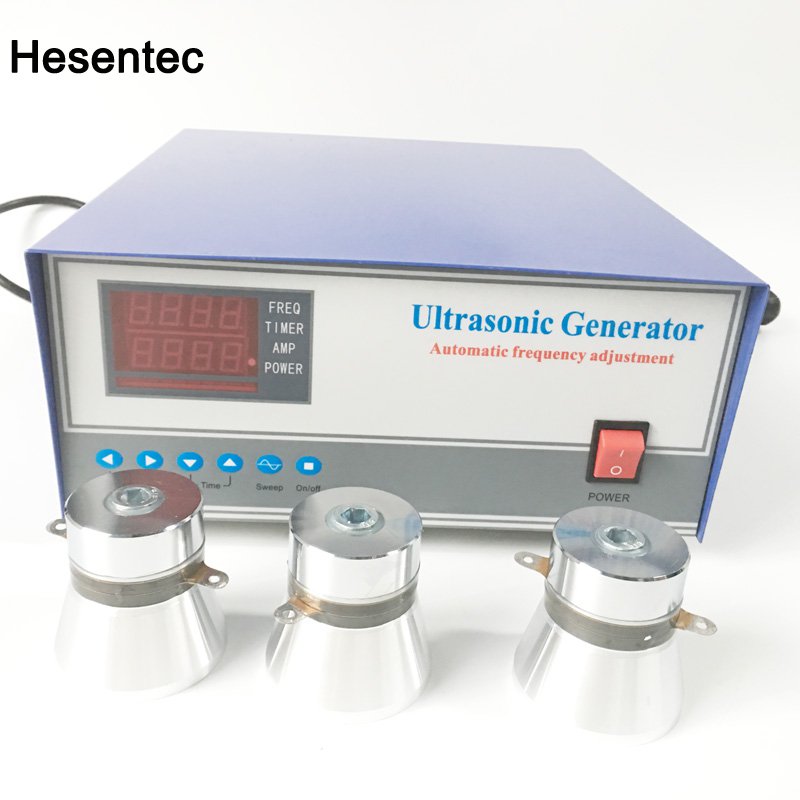

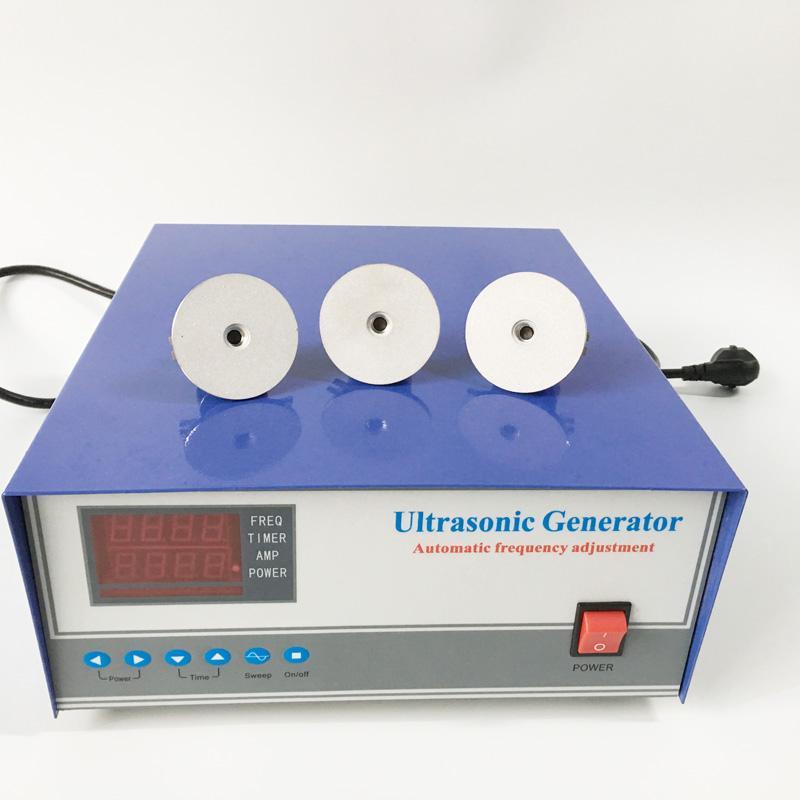

3000W Hesen High Power Ultrasonic Generator For Cleaning Machine
40khz/54khz ultrasonic generator for washing machine with ultrasonic waves 1500W/1800W
Ultrasound generator, also known as ultrasonic driving power supply, electronic box and ultrasonic controller, is an important part of high-power ultrasound system. The function of the ultrasonic generator is to convert electricity into high frequency AC signal matched with the ultrasonic transducer and drive the ultrasonic transducer to work. High power ultrasonic power supply generally adopts switching power supply in terms of conversion efficiency. Ultrasound generator is mainly used for ultrasonic cleaning machine, ultrasonic vibration board and ultrasonic cleaning line. It is suitable for electronics, hardware, clocks and watches, electroplating, stainless steel, ceramics, lighting, automobile industry, tableware disinfection, precision instruments, optics and other industries. It has the characteristics of high efficiency, low cost, thorough cleaning, no dead angle, strong practicability, etc.
1. Frequency sweeping function: advanced sweeping circuit in the international market can effectively protect the shock plate;
2. All IGBT power output components are imported devices, which have the advantages of small size, high power and fast response.
3. Power transistor: imported 50A/1200V imported tube is used to eliminate the possibility of tube burning.
4. Unique sealing and anti-corrosion technology to ensure long-term stable and reliable operation of internal circuit boards;
5. The output power of its excitation control circuit is over 98%, which greatly improves the ultrasonic cavitation density.
6. The output current is sinusoidal wave, which can prolong the service life of transducer and generator itself.
7. Wide-range sweep frequency: 15KHz-80KHz adjustable, suitable for all kinds of transducers; 8. Constant output design, small output current ripple, more stable output, protect transducer from damage; 9. Output over-current and short-circuit protection can protect generator power tube.
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
