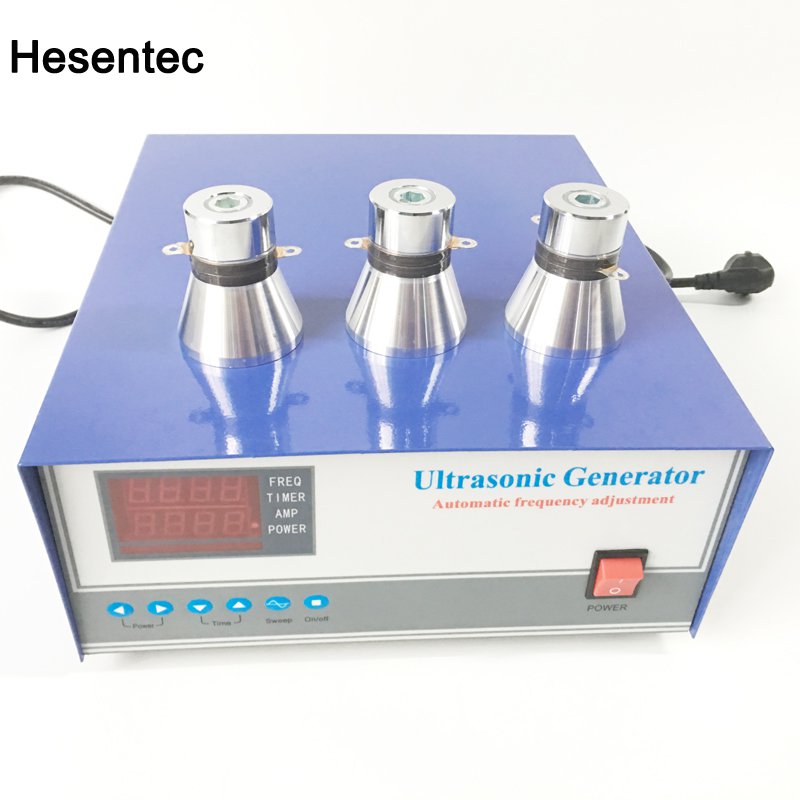

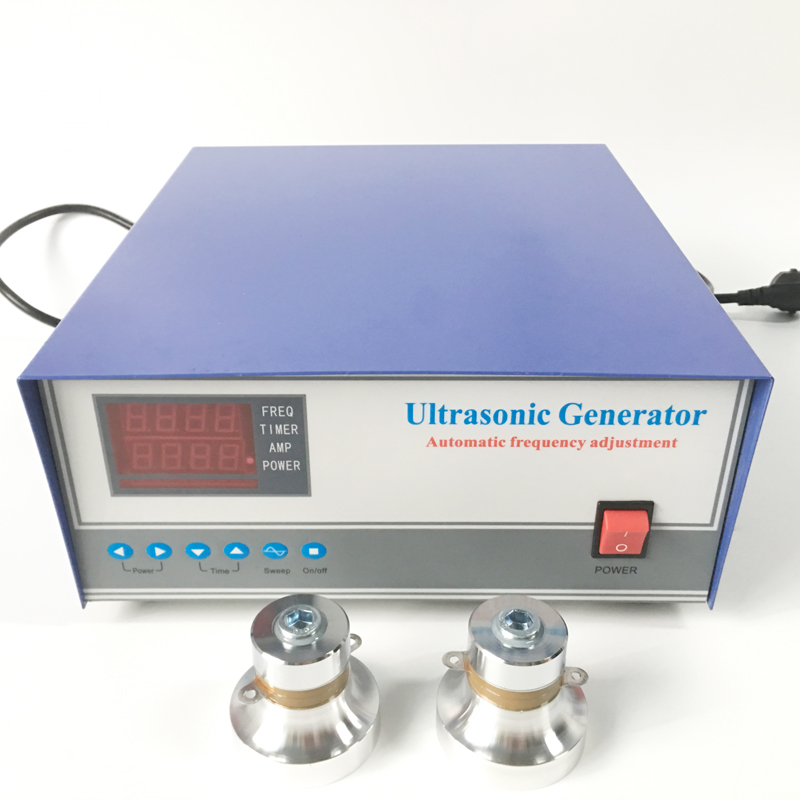

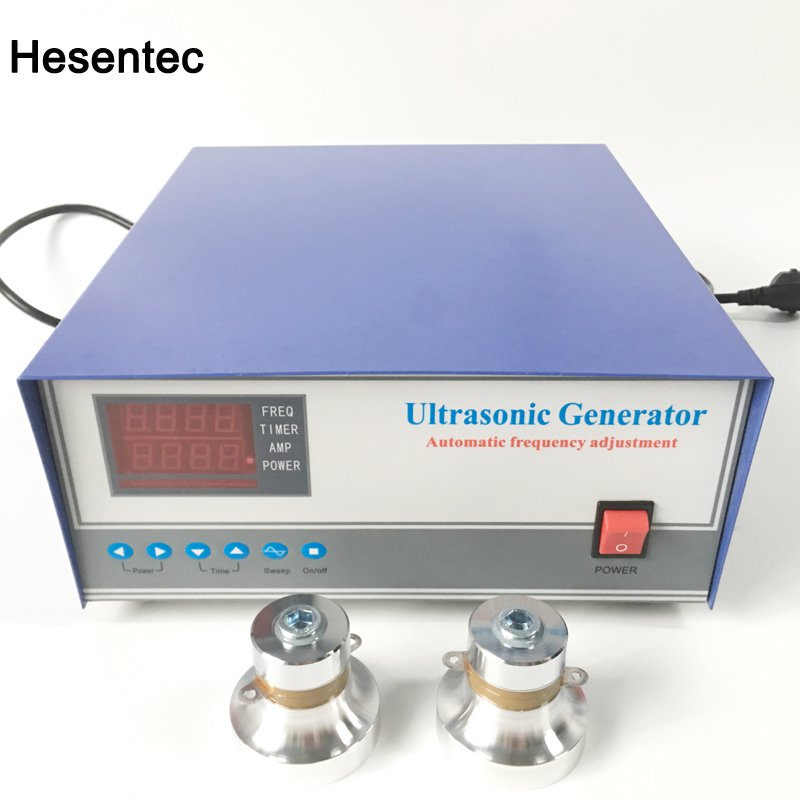

300W-2400W High Power Pulse Ultrasonic Cleaner Generator 220V
Main Technology Reference of Ultrasonic Generator
Working volt: 220V(±10%) or 110V(±10%)
Working current:Please notice that equipment can not work long time under the current which is greater than the rated current.
Ultrasonic power 300W 600W 900W 1000W 1200W 1500W
Working current 1A 2.5A 3.5A 3.7A 4.5A
Working Environment temperature: 0-40C°
Relative humidity: 40%–90%
Working frequency: 28KHz(40KHz,80 KHz,135KHz, etc)
Time control: 0—59 minutes 59 seconds
Range of power control: 0-100% digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Ultrasonic generator is a kind of equipment which converts the city electricity into the corresponding high-frequency alternating current of the transducer to drive the transducer to work. It is an important component of the high-power ultrasonic system. It can also be called electronic box, ultrasonic power supply and ultrasonic controller.
Application
Ultrasonic Circuit is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on
Some Features ofUltrasonic Sound Generator
Timer Function:set working time from 0-60 mins according to the cleaning objects.
Sweep frequency tracking function:achieved sweep frquency cleaning and automatic frequency tracking.
Display working time frquency current by digital.More intuitive and convenient for data observation.
With over-voltage,over-current and overheating protection function,which prevent tube and plate from burning,reduced damage to the generator.
Effective power output which is as high as 98% above.
External PLC control switch.the remote control ultrasonic cleaning machine.
Ultrasonic power,time and frequency can be Continuous adjustable.
High Power Pulse Ultrasonic Cleaner Generator 220V High Output Transducer
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
