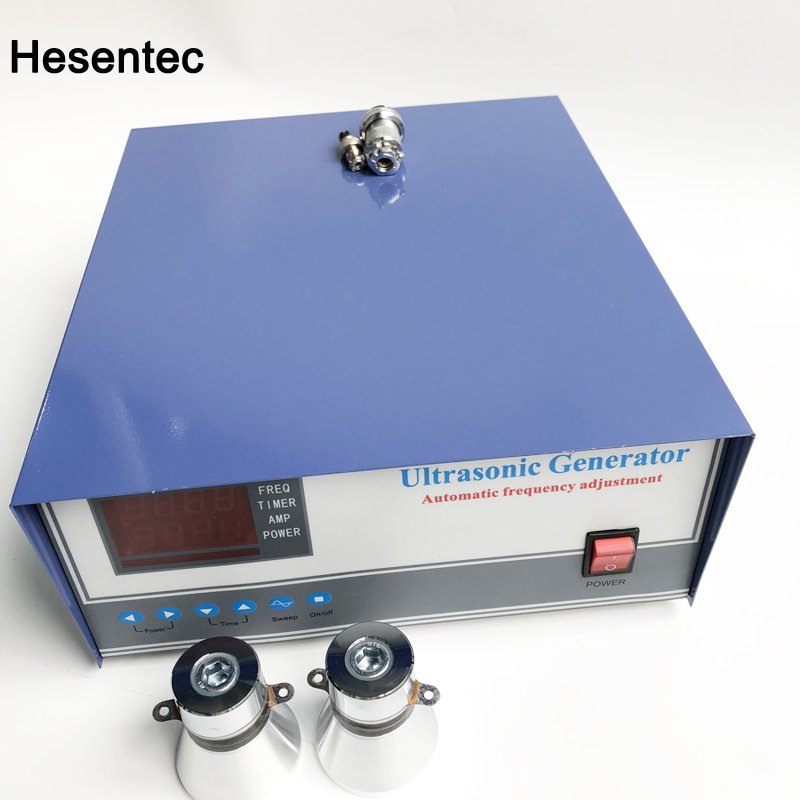

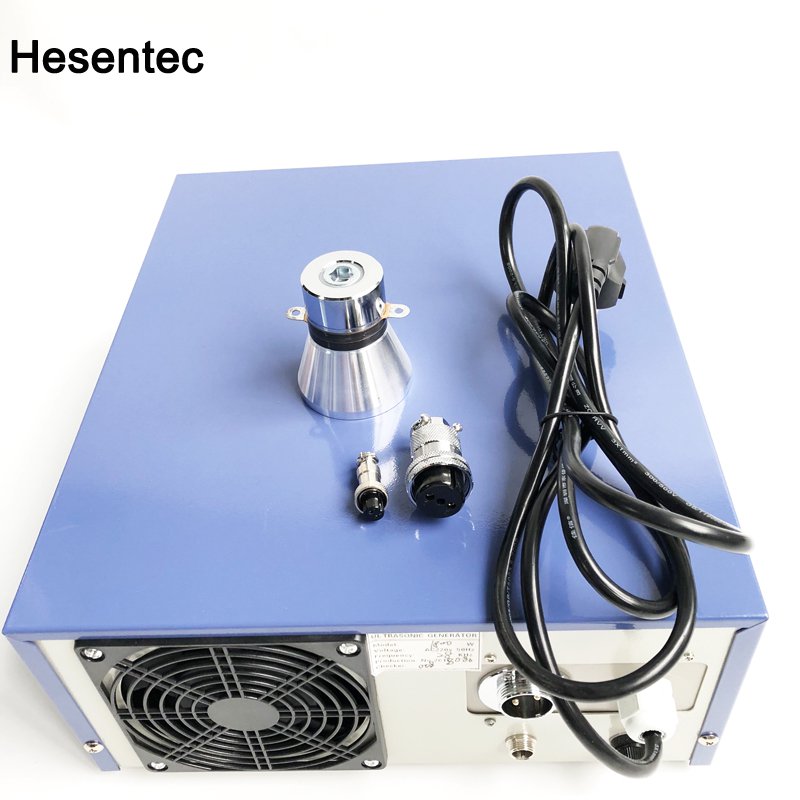

300W Ultrasonic Cleaner Generator Of Ultrasonic Generator 40KHz
Digital ultrasonic cleaner generator, also called ultrasonic electric box, ultrasonic power supply, ultrasonic control box, ultrasonic generator and so on, is mainly matched with ultrasonic cleaning machine, ultrasonic vibration plate or ultrasonic cleaning line. In the rapid development of industrialization today, ultrasonic cleaning has been completely replaced by artificial cleaning and suitable for electricity. Sub, hardware, circuit, electroplating, stainless steel, ceramics, lighting, lighting, automobile industry, tableware disinfection, precision instrument, optics and other industries, with high efficiency, low cost, thorough cleaning, no dead angle, strong practicality and so on, have been widely used by many customers at home and abroad.
With advanced microcomputer control technology and brand new circuit design concept, a new generation of multifunctional power source for ultrasonic cleaning machine has been launched.
(1) the control box adopts digital frequency synthesis technology controlled by microcomputer and frequency automatic tracking.
(2) digital ultrasonic power can be adjusted continuously and used more flexibly. The power is stronger and the efficiency is higher.
(3) perfect protection function: overheat protection and over current protection, and work more reliable.
(4) four timer, time control to seconds to ensure the quality of your work.
(5) it can display "working state", "frequency", "current" and so on.
(6) provide external control interface to facilitate connection with other control devices.
Ultrasonic cleaner Application
Ultrasonic Circuit is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on.
Digital Ultrasonic Generator 300W Ultrasonic Cleaner Generator Of Ultrasonic Cleaning:
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
