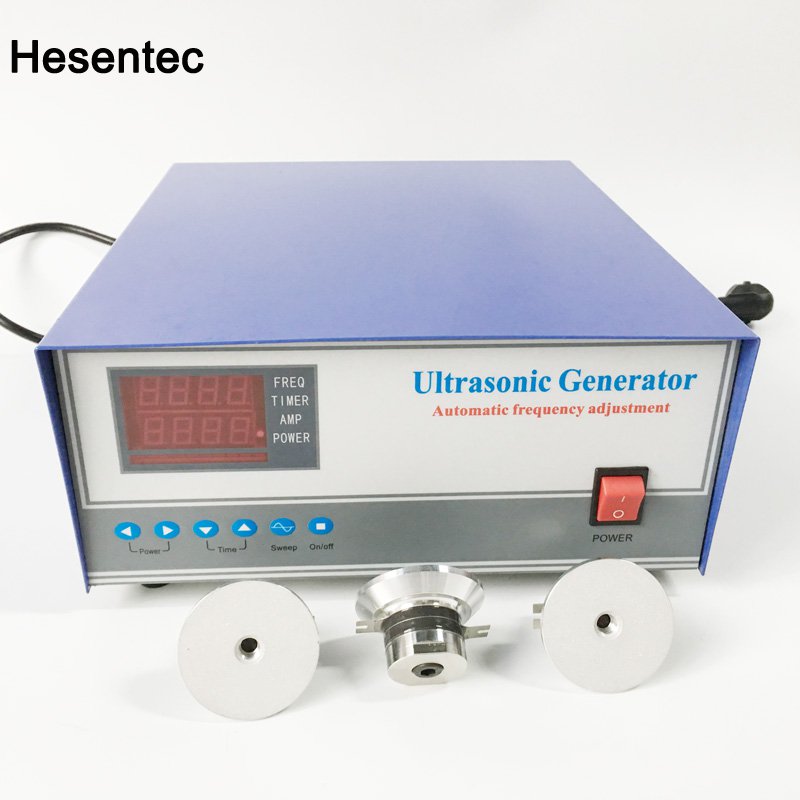

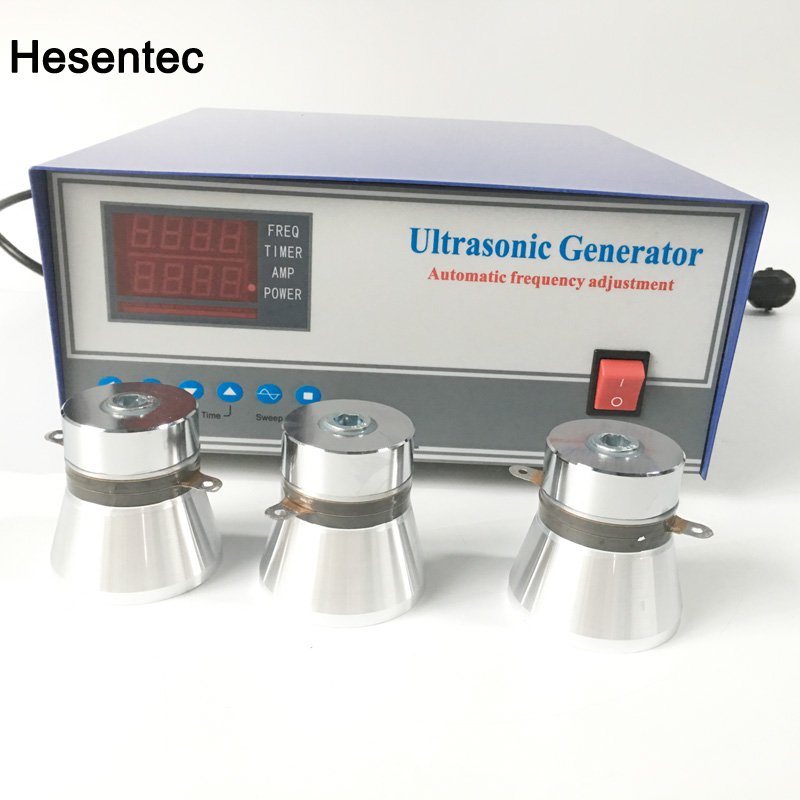

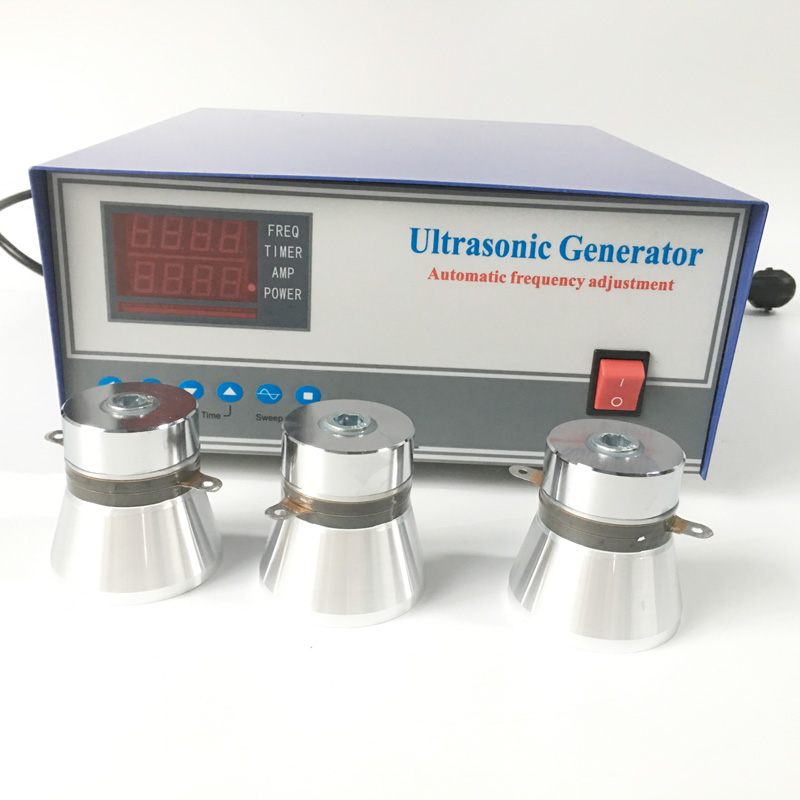

40KHz 2000W Ultrasonic Generator Used In Industry Cleaning

40KHz 2000W Ultrasonic Generator Used In Industry Cleaning

28khz/40khz ultrasound frequency generator for Industrial ultrasonic cleaner 1000w/2000w

Overview of the ultrasonic generator: The ultrasonic power supply is divided into self-excitation power supply and other excitation power supply. The self-excitation power supply is called the ultrasonic analog power supply, and its excitation power supply is called the ultrasonic generator. The ultrasonic generator, also known as the ultrasonic generator, the ultrasonic control power supply, the ultrasonic control box and the ultrasonic controller, is an important part of the ultrasonic cleaning system. Summary of Foshan Juhe Brand Ultrasound Generator Products: Current Display of Ultrasound Generator: LED Amperometer Display Ultrasound generator circuit control: dual-chip circuit board control, low power loss, effective power up to 98%. Ultrasound generator driving mode: driven by IGBT tube imported from Japan, with high voltage and current resistance, low failure rate and stable output. Ultrasound generator frequency range: 28KHz ~ 40KHz universal. Ultrasound Generator Power Control: The SCR of Japan Sanshe is used for power regulation, and the performance is stable. Ultrasound generator protection modes: short circuit protection of vibration head, overheating protection, leakage protection, etc. Internal structure of ultrasonic generator: unique anti-corrosion design, not affected by the working environment, adapted to various workplaces. Ultrasound generator power range: automatic sweep function, in the power allowable range of 10% - 100% stepless adjustable.


Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
