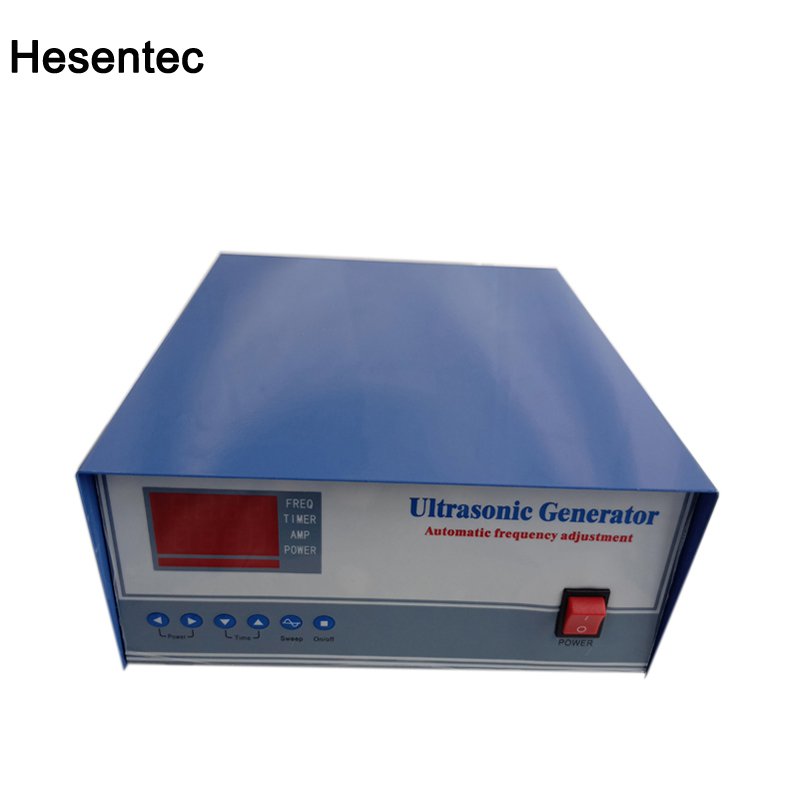

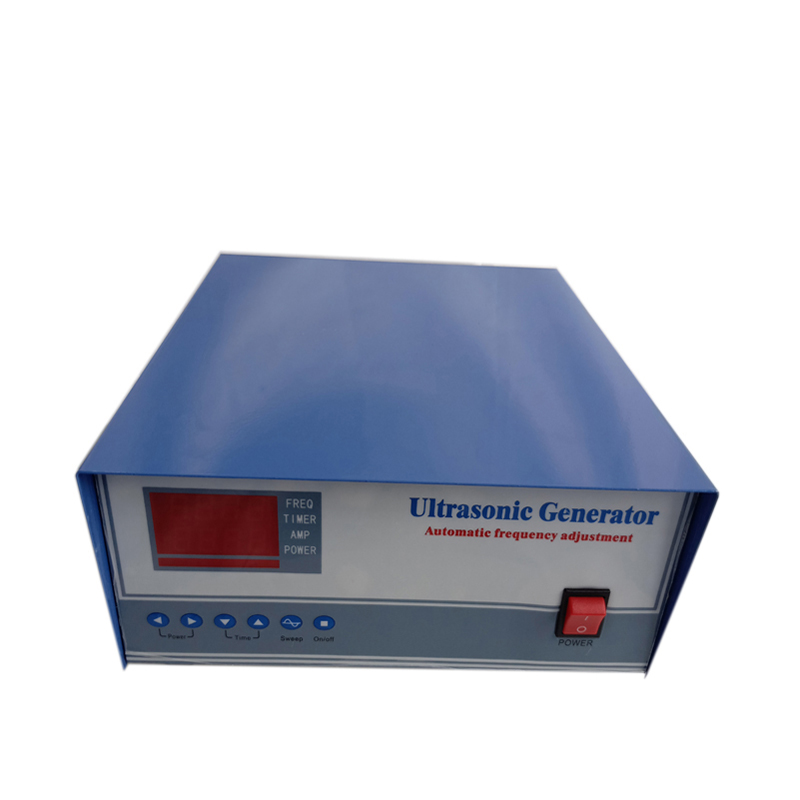

ultrasonic generator is a kind of equipment which converts the city electricity to the transducer with high frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. It can also be called the electronic box, the ultrasonic driving power supply and the ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, in fact, the ultrasonic generator is only part of the ultrasonic power supply. The ultrasonic power supply can be divided into self excitation and its exciting type according to the difference of the exciting mode, and the ultrasonic generator refers to its exciting ultrasonic power supply, because it is more than 10% higher than self excitation in the output power, so most of the ultrasonic generator is used as the driving power.
The ultrasonic generator can monitor the working frequency and power of the high power ultrasonic system.
According to the different requirements of users, we can adjust various parameters in real-time, such as power, amplitude, running time and so on.
Frequency fine tuning: adjusting the frequency makes the ultrasonic transducer always work in the best condition, the efficiency reaches the maximum, and the adjustment range is 2%.
Automatic frequency following: once the device has completed its initial setup, it can operate continuously without the need to regulate the generator.
Amplitude control: when the transducer changes during the working process, it can automatically adjust the driving characteristics to ensure that the tool head has a stable amplitude.
System protection: when the system works in an unsuitable operating environment, the generator will stop working and display the alarm and protect the equipment from damage.
Amplitude adjustment: the amplitude can be increased or reduced instantly in the working process, and the setting range of amplitude is 0%~100%.
Automatic frequency search: it can automatically measure the working frequency of tool heads and store them.
1.IGBT full bridge phase shift technology
2. 0-100% power adjustable linearly
3.Constant power output for different working conditions
4. Frequency tracking
5. Load self-adaption
6. 2 Times peak power technology which has better cleaning effect to stubborn stains
7. Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance
8.Remote control,connectable to PLC
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
