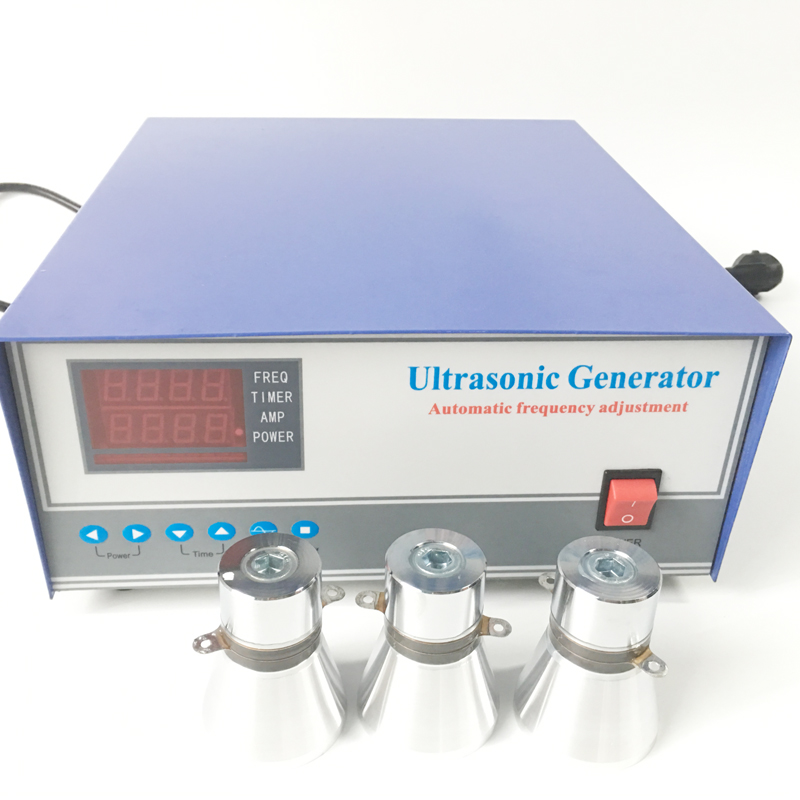

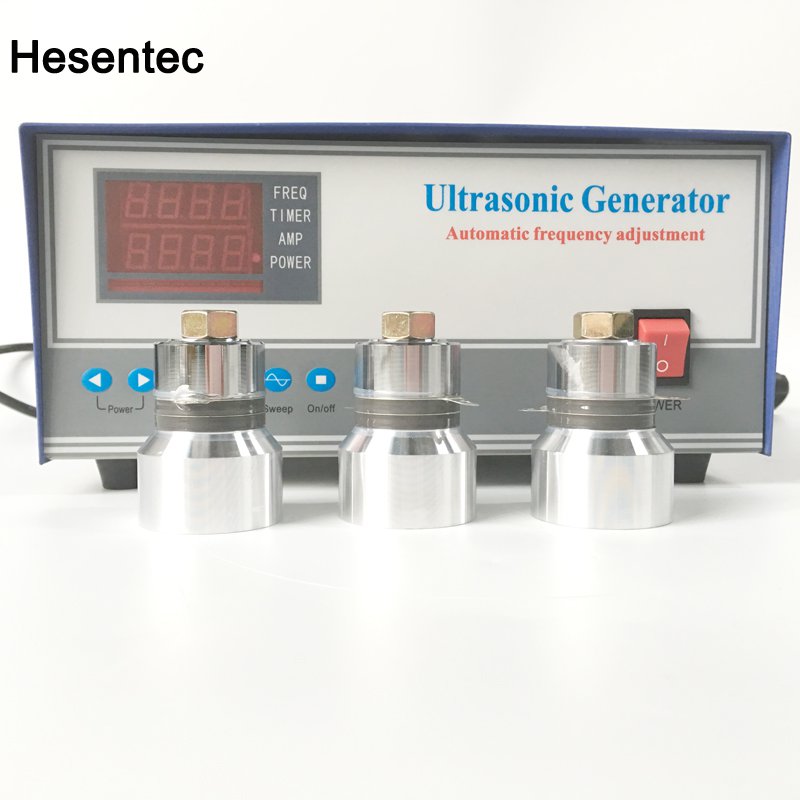

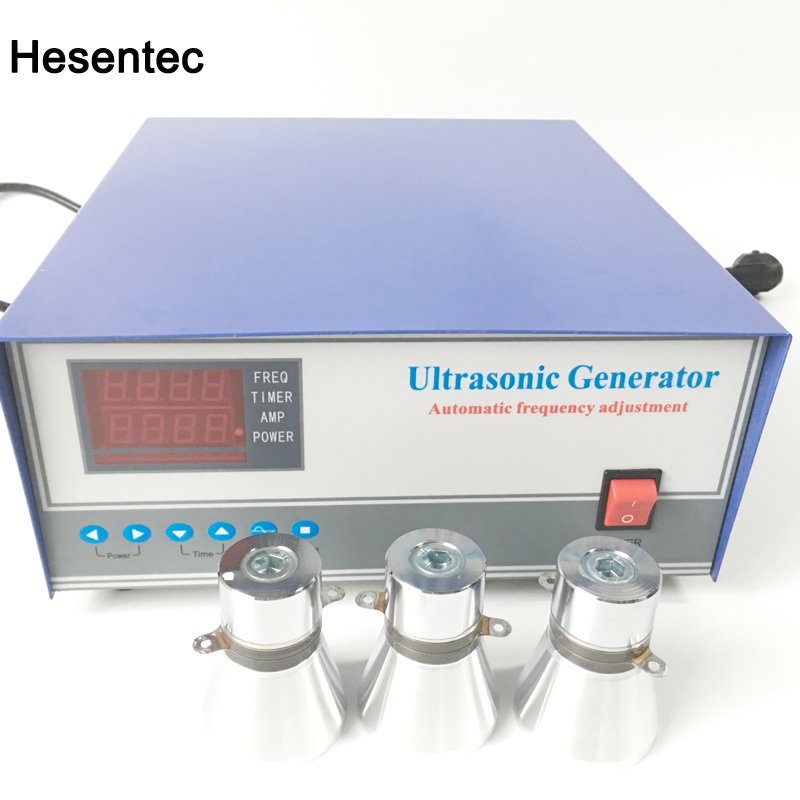

High Power Ultrasonic Generator For Cleaning Machine 1800W
new ultrasonic cleaner generators adopt international leading high-frequency laser, which more stable and more intensive. Compared with the formers, it can clean more complete and faster. Coupled with the unique anti-corrosion technology, guarantee the using environment unlimited. Besides, adopt the imported international leading power tube drive, greatly enhance the stability of the product, its transferring rate reach above 95%.
According to the different requirements of users, we can adjust various parameters in real-time, such as power, amplitude, running time and so on.
Frequency fine tuning: adjusting the frequency makes the ultrasonic transducer always work in the best condition, the efficiency reaches the maximum, and the adjustment range is 2%.
Automatic frequency following: once the device has completed its initial setup, it can operate continuously without the need to regulate the generator.
Amplitude control: when the transducer changes during the working process, it can automatically adjust the driving characteristics to ensure that the tool head has a stable amplitude.
System protection: when the system works in an unsuitable operating environment, the generator will stop working and display the alarm and protect the equipment from damage.
Amplitude adjustment: the amplitude can be increased or reduced instantly in the working process, and the setting range of amplitude is 0%~100%.
Automatic frequency search: it can automatically measure the working frequency of tool heads and store them.
Shipping information:
1. First step: Seal this ultrasonic cleaning machine in PP bags
2. Second step: Use PU foams to fasten and fix the machine
3. The last step: Package it in carton or colour box, seal it, and put up packaging list
High Quality Ultrasonic Cleaner Generator For Ultrasonic Cleaning Machine 1200W
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
