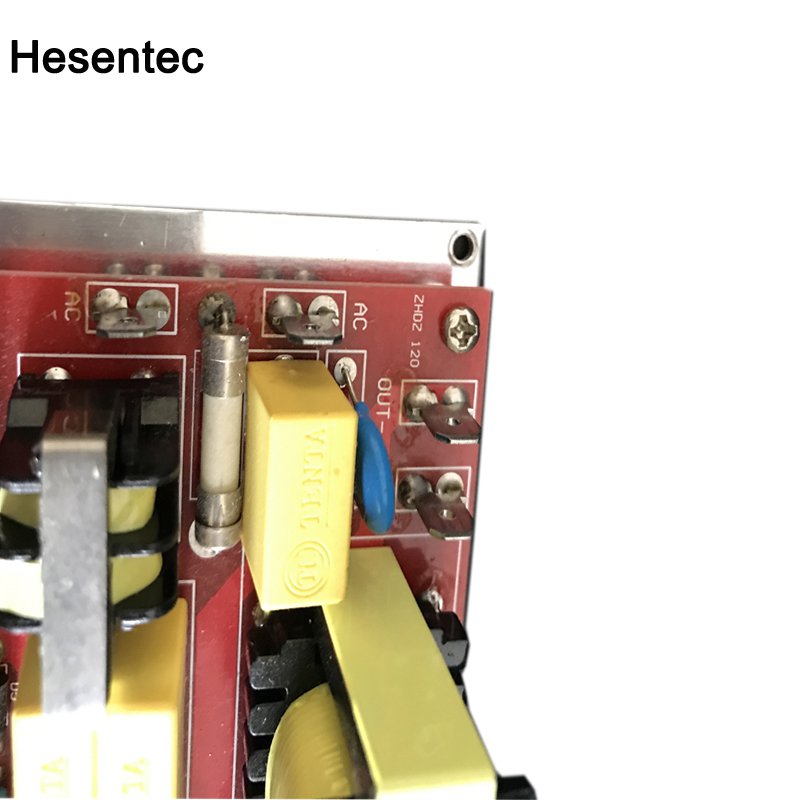

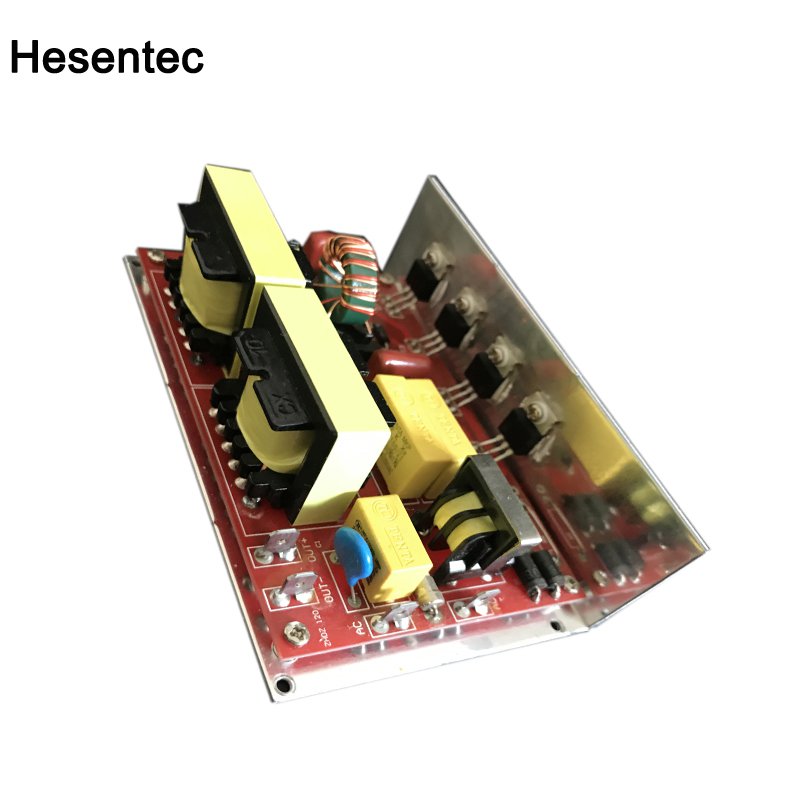

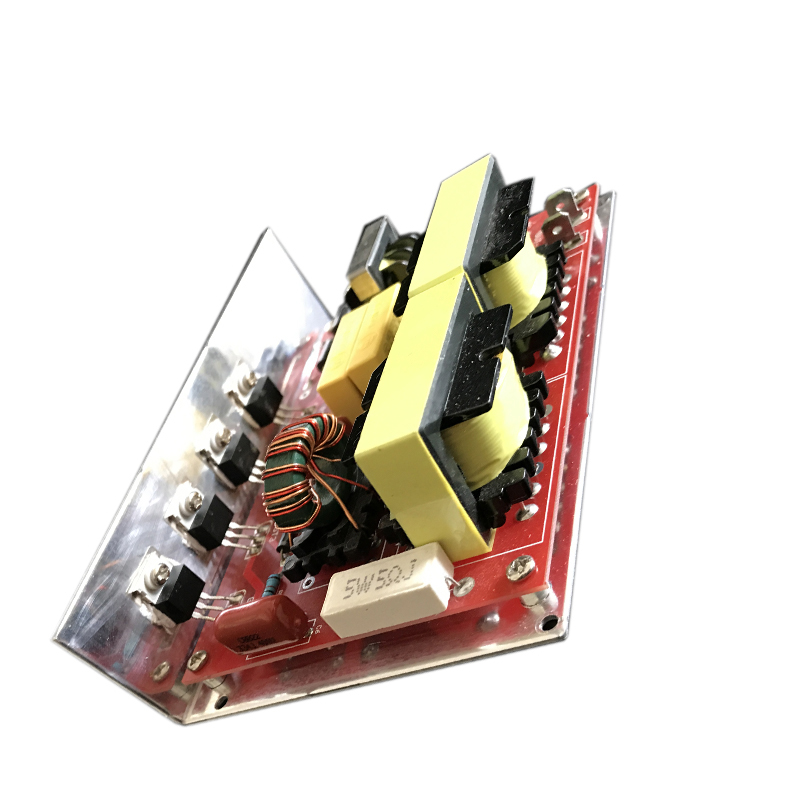

110V Cleaning PCB Driver Ultrasonic PCB Generator Circuit Board

110V Cleaning PCB Driver Ultrasonic PCB Generator Circuit Board Introduction

110V Cleaning PCB Driver Ultrasonic PCB Generator Circuit Board

small power ultrasonic PCB generator instructions：

1, the glue please choose Epoxy resin adhesive specialized for industry used
2, please make assured the transducer already been bonded well before connecting the PCB and already been with water or other liquid in the tank,and then power on
3, the thickness of stailess steel 1.5-2mm
4, about the transducer,at middle of electronic chip is positive pole,another one is negative.
5, transducer and PCB in parallel connection
6, upon bonding 24-48 hours and then let the machine power on.

Type Frequency Power Dimension
(mm)		 Transducer numbers
HS-DLB50W 25khz,28khz,33khz,40khz 50W 132×85×45mm 1 piece
HS-DLB60W 25khz,28khz,33khz,40khz 60W 132×85×45mm 1 piece
HS-DLB100W 25khz,28khz,33khz,40khz 100W 132×85×45mm 1-2 pieces
HS-DLB120W 25khz,28khz,33khz,40khz 120W 132×85×45mm 1-2 pieces
HS-DLB150W 25khz,28khz,33khz,40khz 150W 132×85×45mm 1-3 pieces
110V Cleaning PCB Driver Ultrasonic PCB Generator Circuit Board
110V Cleaning PCB Driver Ultrasonic PCB Generator Circuit Board
