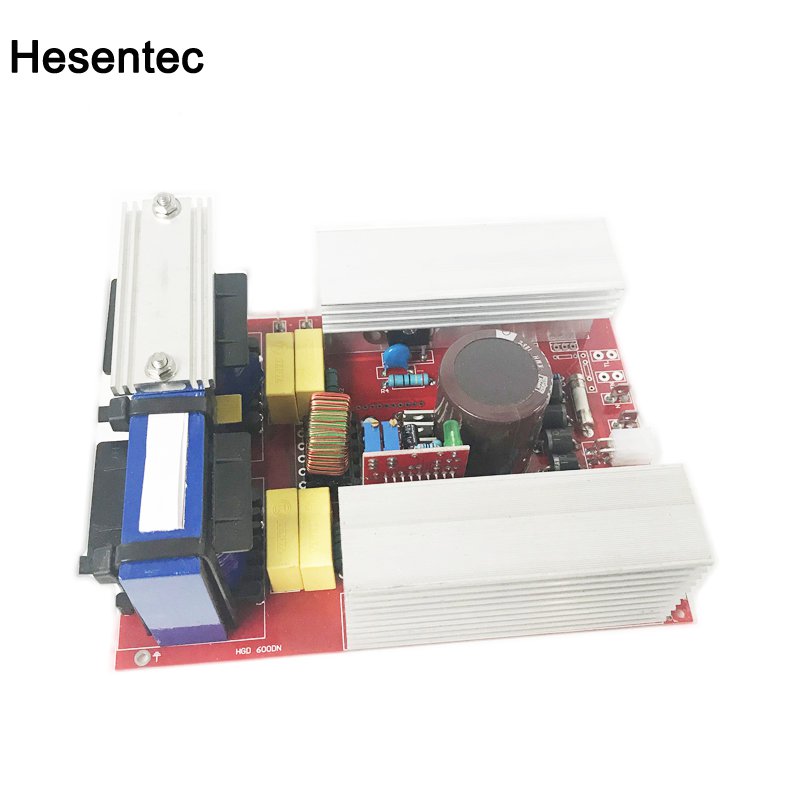

200W Ultrasonic Generator PCB Circuit Board 20K-40KHz Adjustable

200W Ultrasonic Generator PCB Circuit Board 20K-40KHz Adjustable

Some Features of Ultrasonic Cleaning PCB
Ultrasonic Generators which adopts advanced high speed single chip microcomputer control technology and possess new circuit design theory,it is a new generation of multi-functional ultrasonic cleaning power.
The control box adopts high speed single chip microcomputer controlled digital frequency synthesis technology with half bridge circuit drive which is stable and low power loss.
Digital ultrasonic power is adjustable. Thus it is more flexible and more efficient.
Its complete protection function which include overheat alarm and over-current alarm make the work become more reliable.
Its accurate timer which calculate results has four numbers, guarantee the quality of your work.
The screen can display status of work mode,frequency or current according to your requirement.

Type	Frequency	Power	Dimension (mm)	Transducer numbers
ARS-DLB50W	25khz,28khz,33khz,40khz	50W	132×85×45mm	1 piece
ARS-DLB60W	25khz,28khz,33khz,40khz	60W	132×85×45mm	1 piece
ARS-DLB100W	25khz,28khz,33khz,40khz	100W	132×85×45mm	1-2 pieces
ARS-DLB120W	25khz,28khz,33khz,40khz	120W	132×85×45mm	1-2 pieces
ARS-DLB150W	25khz,28khz,33khz,40khz	150W	132×85×45mm	1-3 pieces
ARS-DLB200W	25khz,28khz,33khz,40khz,80khz,100khz,135khz	200W	180×130×60mm	4 pieces
ARS-DLB300W	25khz,28khz,33khz,40khz	300W	180×130×60mm	6 pieces
ARS-DLB400W	25khz,28khz,33khz,40khz	400W	180×130×60mm	8 pieces
ARS-DLB500W	25khz,28khz,33khz,40khz	500W	180×130×60mm	10 pieces
ARS-DLB600W	25khz,28khz,33khz,40khz	600W	180×130×60mm	12 pieces
Ultrasonic PCB generator could to 2400W,welcome send the enquire
