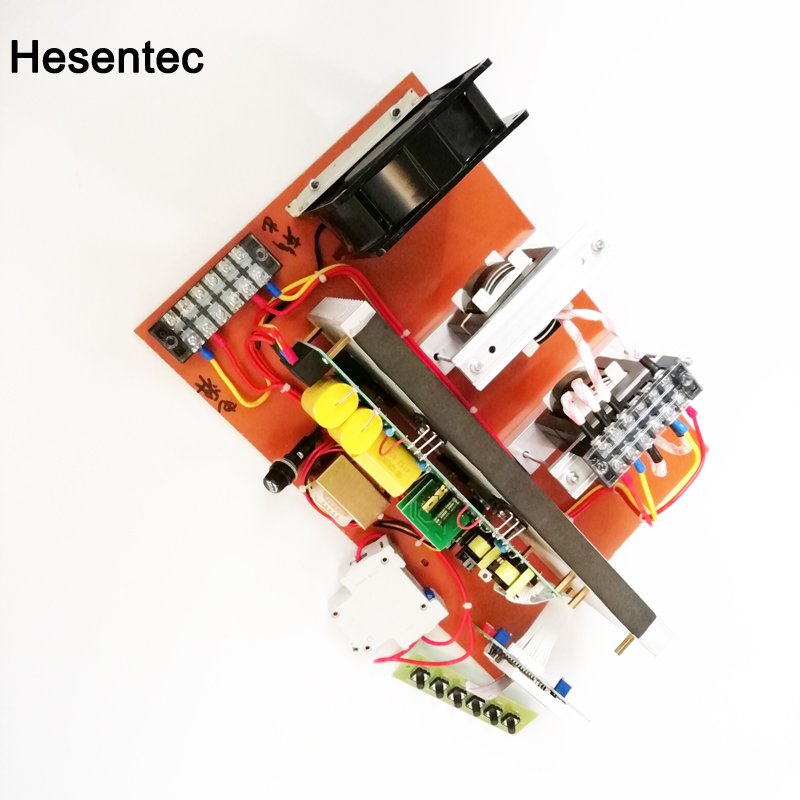

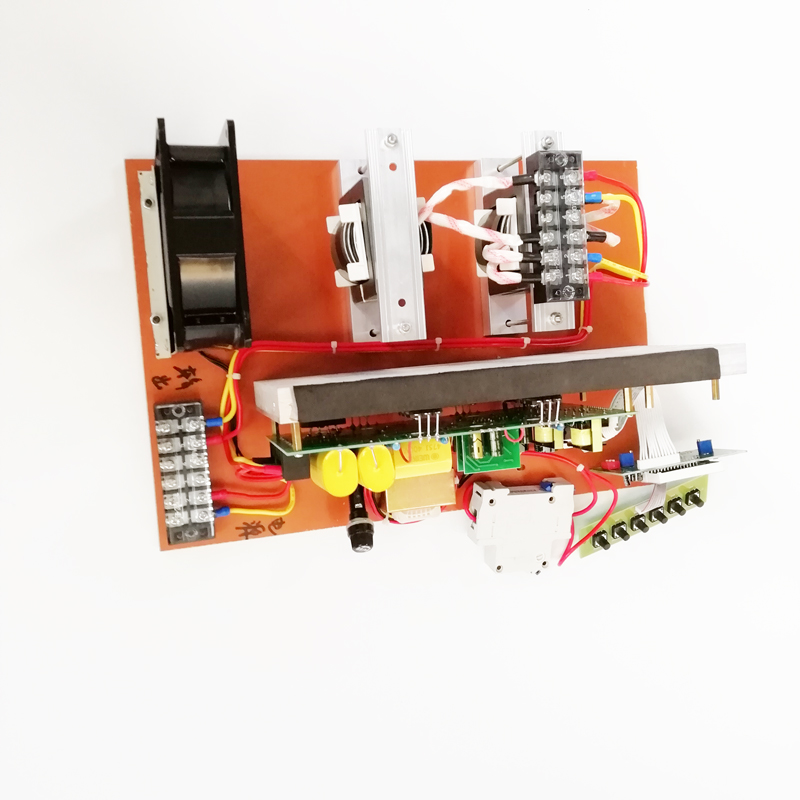

  • Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz

Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz

Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz Introduction

Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz

Performance profile：
The ultrasonic power driving circuit PCB board is a full digital design of multi-function, high-performance, high reliability ultrasonic cleaning machine dedicated power source.
(1) microcomputer control and digital frequency synthesis technology, frequency accuracy 10Hz.
(2) ultrasonic power manual level 16 and automatic 32 stage continuous adjustment.
(3) it can track the drift of the resonant point in real time and keep the best working frequency at all times.
(4) unique self-regulation matching technology, can compensate for the voltage, load, water level and water temperature changes caused by the power drop, so that the power range is less than +-5%.
(5) four digital display frequency, current, timing and other information, intuitive and clear.

Type Frequency Power Dimension
(mm)
HS-MBJ300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 300W 380*260*130mm
HS-MBJ600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 600W 380*260*130mm
HS-MBJ900 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 900W 380*260*130mm
HS-MBJ1000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1000W 380*260*130mm
HS-MBJ1200 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1200W 380*260*130mm
HS-MBJ1300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1300W 380*260*130mm
HS-MBJ1500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1500W 380*260*130mm
HS-MBJ1800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1800W 380*260*130mm
HS-MBJ2000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2000W 380*260*130mm
HS-MBJ2400 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2400W 380*260*130mm
HS-MBJ2500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2500W 380*260*130mm
HS-MBJ2600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2600W 380*260*130mm
HS-MBJ2800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2800W 380*260*130mm
HS-MBJ3000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 3000W 380*260*130mm
 Ultrasonic PCB generator could to 3000W,welcome send the enquire
600W-3000W Ultrasonic PCB frequency adjustable,with display board
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz
Ultrasonic Power Driving Circuit PCB Board 28KHz/40KHz
