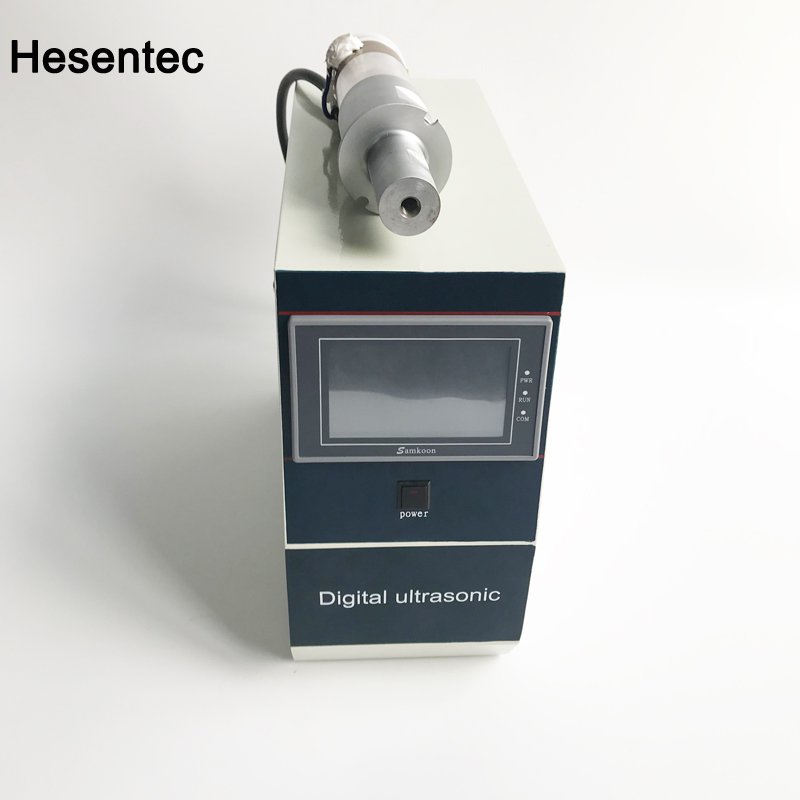

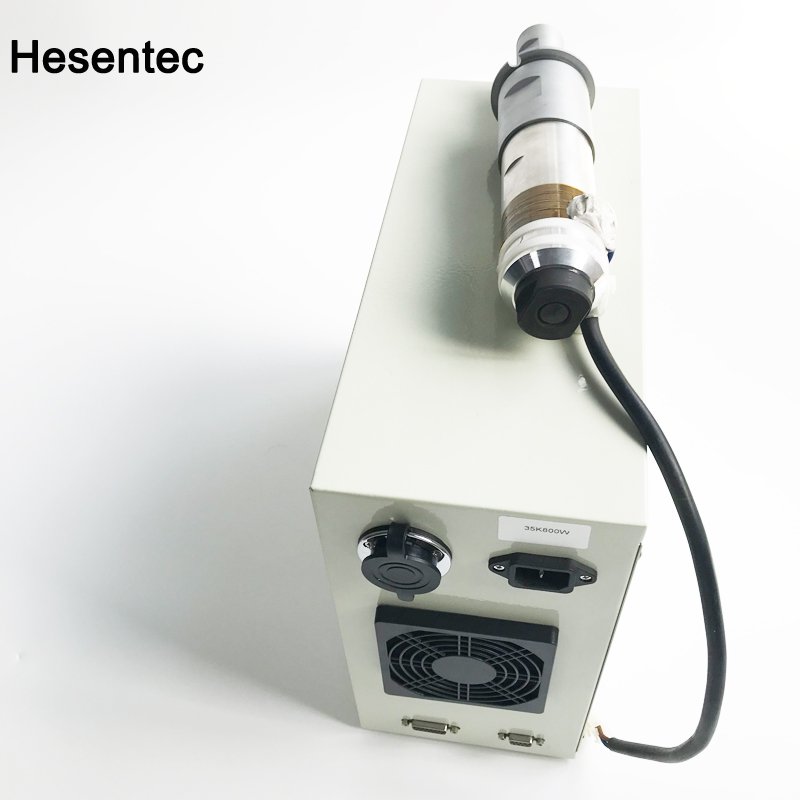

28khz 1200W High Frequency Ultrasonic Plastic Welding Generator
28khz 1200W High Frequency ultrasonic welding generator,1200W Ultrasonic welding driving generator
Feature:
1) LED frequency, current display, at work, can be stable tracking changes in transducer parameters, play the maximum efficiency of the transducer and tool head.
2) The use of imported high-power tube, resistant to high current impact, increasing the stability of the ultrasonic generator work.
3) Using the digital frequency display, you can accurately observe the generator operating frequency.
4) Easy to operate, can be applied to different specifications of the transducer and mold.
5) Easy to use, easy maintenance, reliable and durable.
Ultrasonic plastic welders operate by inducing ultrasonic frequencies in plastic components that is converted into heat between the welded plastic laminates. Frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area. The welded area is usually as strong as the matrix material.
Characteristics:
1, the energy of the transducer is strong and stable
2, the use of automatic control system, overload protection device, accurate time to 1/100 seconds, stable quality.
3, excellent quality imported component assembly, perfect line control, ensure machine quality and performance stable.
4, adopt the upper die to adjust the four point balance, so that the mold adjustment is convenient and quick.
5, chrome plated alloy steel concentric straight column design, precision lever lifting rocker, small pitch, vertical vertical precision, to ensure the accuracy of workpiece welding.
6, divided design: the main electronic components are concentrated in the electronic box to avoid the possible damage to the circuit caused by the long-term use of the oil and water from the vibration and pneumatic components, and the heat dissipation is good and the mechanical life is prolonged.
|
Type |
Power(W) |
Frequency (KHz) |
|
HS-HJDY-500W15 |
500W |
15KHz |
|
HS-HJDY-500W20 |
500W |
20KHz |
|
HS-HJDY-600W15 |
600W |
15KHz |
|
HS-HJDY-600W20 |
600W |
20KHz |
|
HS-HJDY-900W15 |
900W |
15KHz |
|
HS-HJDY-900W20 |
900W |
20KHz |
|
HS-HJDY-1500W15 |
1500W |
15KHz |
|
HS-HJDY-1500W20 |
1500W |
20KHz |
|
HS-HJDY-1800W15 |
1800W |
15KHz |
|
HS-HJDY-1800W20 |
1800W |
20KHz |
|
HS-HJDY-2000W15 |
2000W |
15KHz |
|
HS-HJDY-2000W20 |
2000W |
20KHz |
|
HS-HJDY-2500W15 |
2500W |
15KHz |
|
HS-HJDY-2500W20 |
2500W |
20KHz |
|
ultrasonic welding generator |
