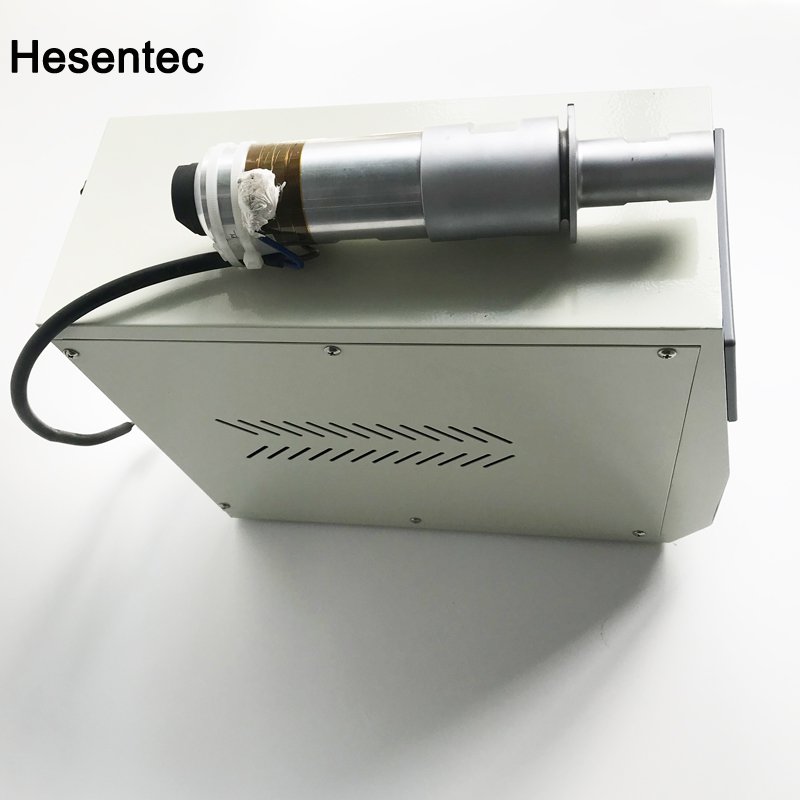

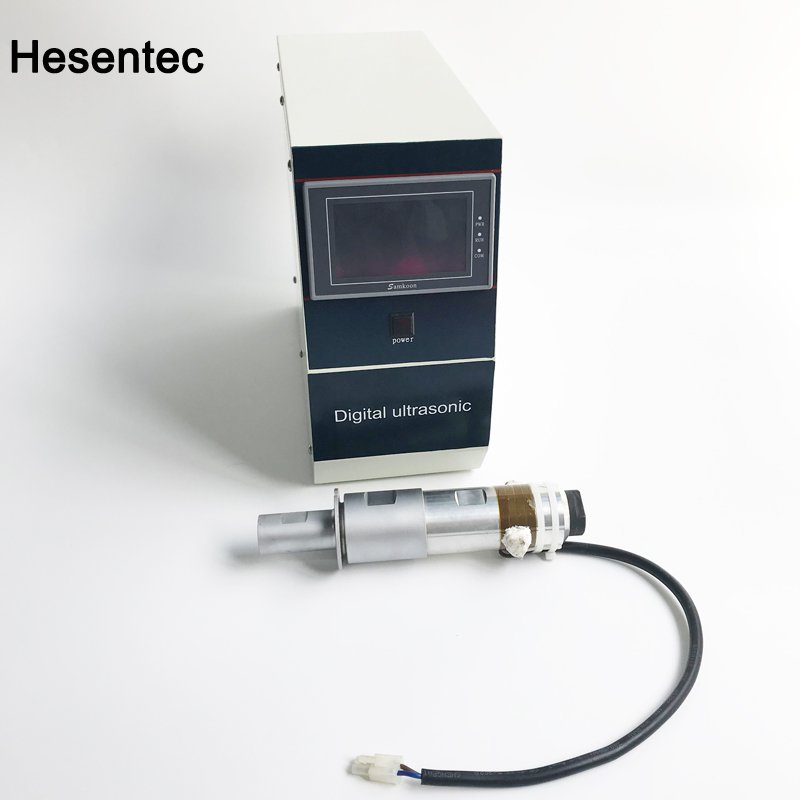

30K Ultra High Frequency Ultrasonic Welding Generator Equipment
Ultrasonic Welding power generator / Power supply for welding transducer
Characteristics:
1, the energy of the transducer is strong and stable
2, the use of automatic control system, overload protection device, accurate time to 1/100 seconds, stable quality.
3, excellent quality imported component assembly, perfect line control, ensure machine quality and performance stable.
4, adopt the upper die to adjust the four point balance, so that the mold adjustment is convenient and quick.
5, chrome plated alloy steel concentric straight column design, precision lever lifting rocker, small pitch, vertical vertical precision, to ensure the accuracy of workpiece welding.
6, divided design: the main electronic components are concentrated in the electronic box to avoid the possible damage to the circuit caused by the long-term use of the oil and water from the vibration and pneumatic components, and the heat dissipation is good and the mechanical life is prolonged.
Competitive Advantage:
Real time monitoring: Monitoring the system operating frequency and power
Parameter adjustment: According to the different requirements, adjust the power, amplitude, the running time
Automatic equipment with frequency: Once the initial setup, can work continuously without the need to adjust the generator.
The automatic amplitude control: Changing load transducer work process can automatically adjust the driving characteristics of ultrasonic tool head, ensure the stable amplitude.
System protection: The system work in the unsuitable operation environment, the generator will stop working and alarm display, to protect the equipment from damage.
Amplitude adjustment: Amplitude can instantly increase or decrease in the work process, the amplitude of the set range: 0%~100%.
Automatic frequency search: Working frequency can be automatically measured and stored in the tool head.
Non resonant state (forced vibration): General driving power supply must be working in the resonant state; the power supply can be the special requirements of customers, stability in the non resonant state, very suitable for some special application of ultrasonic.
|
Type |
Power(W) |
Frequency (KHz) |
|
HS-HJDY-500W15 |
500W |
15KHz |
|
HS-HJDY-500W20 |
500W |
20KHz |
|
HS-HJDY-600W15 |
600W |
15KHz |
|
HS-HJDY-600W20 |
600W |
20KHz |
|
HS-HJDY-900W15 |
900W |
15KHz |
|
HS-HJDY-900W20 |
900W |
20KHz |
|
HS-HJDY-1500W15 |
1500W |
15KHz |
|
HS-HJDY-1500W20 |
1500W |
20KHz |
|
HS-HJDY-1800W15 |
1800W |
15KHz |
|
HS-HJDY-1800W20 |
1800W |
20KHz |
|
HS-HJDY-2000W15 |
2000W |
15KHz |
|
HS-HJDY-2000W20 |
2000W |
20KHz |
|
HS-HJDY-2500W15 |
2500W |
15KHz |
|
HS-HJDY-2500W20 |
2500W |
20KHz |
|
ultrasonic welding generator |
