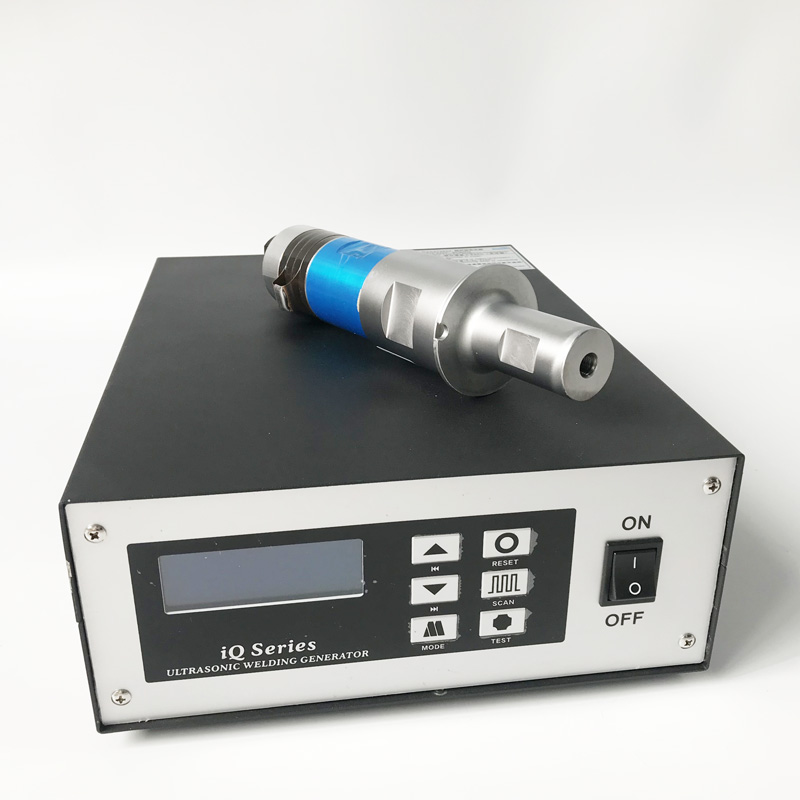

Ultrasonic Plastic Welding Generator Ultrasonic Vibration Generator

Ultrasonic Plastic Welding Generator Ultrasonic Vibration Generator

Characteristic;

1. Aluminum alloy oxidation box shell, light and high-grade.

2. The imported 32-bit single-chip computer with 485 connection ports is used to control the LCD in Chinese. It can be used by multiple simultaneous or single computers. It can work only by connecting start-up, emergency stop switch and 24V solenoid valve. The system is safer and more accurate.

3. The internal circuit adopts fully automatic linear numerical control phase-locked loop circuit, automatic tracking of ambient temperature and frequency, multiple over-frequency and overload protection circuits, power amplifier adopts full-bridge IGBT module, which has high power and high conversion efficiency, and is suitable for welding large plastic parts and hardware.

8. Automatic frequency pursuit range: 19.5KHZ-20.3KHZ, multiple power options: 1500W 2000W 3000W 4500W 6000W maximum power up to 7200W




Type	Power(W)	Frequency (KHz)
HS-HJDY-500W15	500W	15KHz
HS-HJDY-500W20	500W	20KHz
HS-HJDY-600W15	600W	15KHz
HS-HJDY-600W20	600W	20KHz
HS-HJDY-900W15	900W	15KHz
HS-HJDY-900W20	900W	20KHz
HS-HJDY-1500W15	1500W	15KHz
HS-HJDY-1500W20	1500W	20KHz
HS-HJDY-1800W15	1800W	15KHz
HS-HJDY-1800W20	1800W	20KHz
HS-HJDY-2000W15	2000W	15KHz
HS-HJDY-2000W20	2000W	20KHz
HS-HJDY-2500W15	2500W	15KHz
HS-HJDY-2500W20	2500W	20KHz
ultrasonic welding generator
