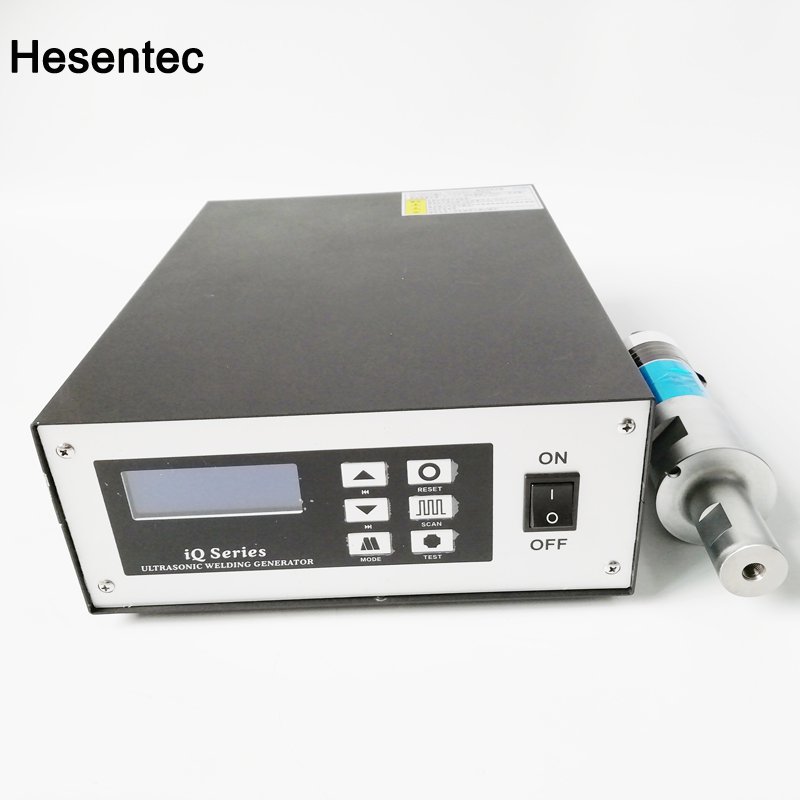

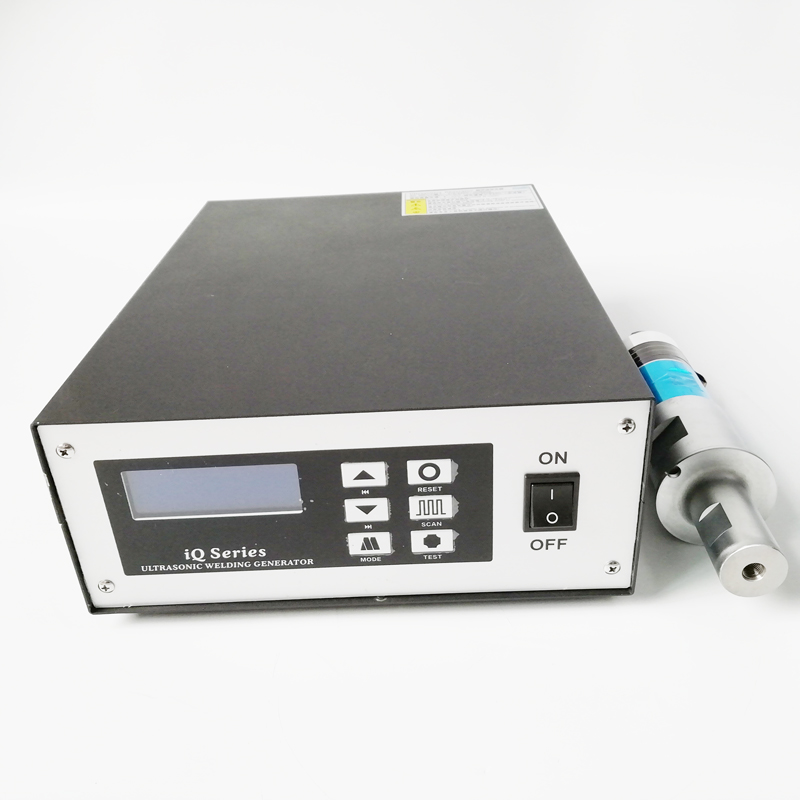

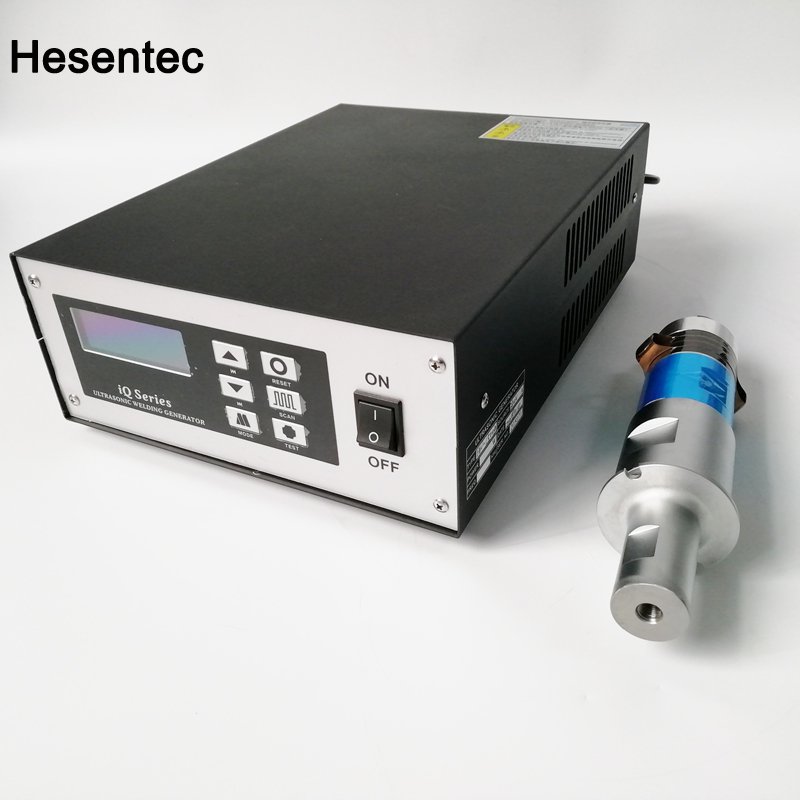

Ultrasonic Welding Generator 2000W/15khz With Welding Transducer

Ultrasonic Welding Generator 2000W/15khz With Welding Transducer

Ultrasound frequency used in ultrasonic equipment is above 15,20,28,35 and 40 khz. Automatic Frequency Following: Once the device has completed its initial setup, it can work continuously without adjusting the generator. Automatic Amplitude Control: When the load of the transducer changes during the working process, it can automatically adjust the driving characteristics, and the tool head can get stable amplitude. System protection: When the system works in an unsuitable operating environment, the generator will stop working and alarm and display, so as to protect the equipment from damage. Amplitude adjustment: Amplitude can be increased or decreased instantaneously in the working process. Amplitude range: 0%~100%. Automatic Frequency Search: It can automatically measure the working frequency of tool head and store it. Overheat protection: It can protect generator well from damage.

Type	Power(W)	Frequency (KHz)
HS-HJDY-500W15	500W	15KHz
HS-HJDY-500W20	500W	20KHz
HS-HJDY-600W15	600W	15KHz
HS-HJDY-600W20	600W	20KHz
HS-HJDY-900W15	900W	15KHz
HS-HJDY-900W20	900W	20KHz
HS-HJDY-1500W15	1500W	15KHz
HS-HJDY-1500W20	1500W	20KHz
HS-HJDY-1800W15	1800W	15KHz
HS-HJDY-1800W20	1800W	20KHz
HS-HJDY-2000W15	2000W	15KHz
HS-HJDY-2000W20	2000W	20KHz
HS-HJDY-2500W15	2500W	15KHz
HS-HJDY-2500W20	2500W	20KHz
ultrasonic welding generator
