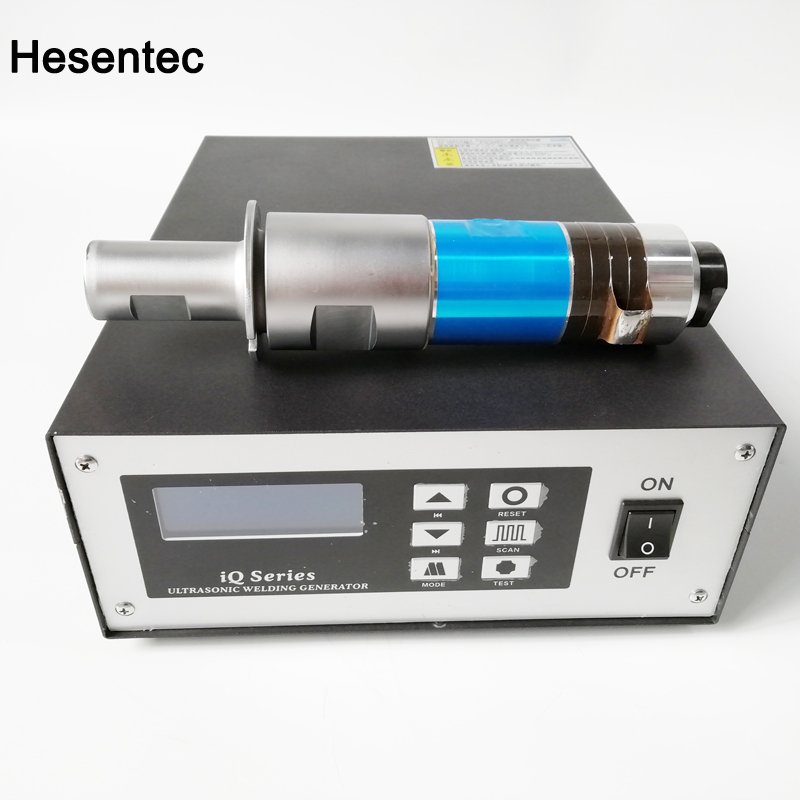

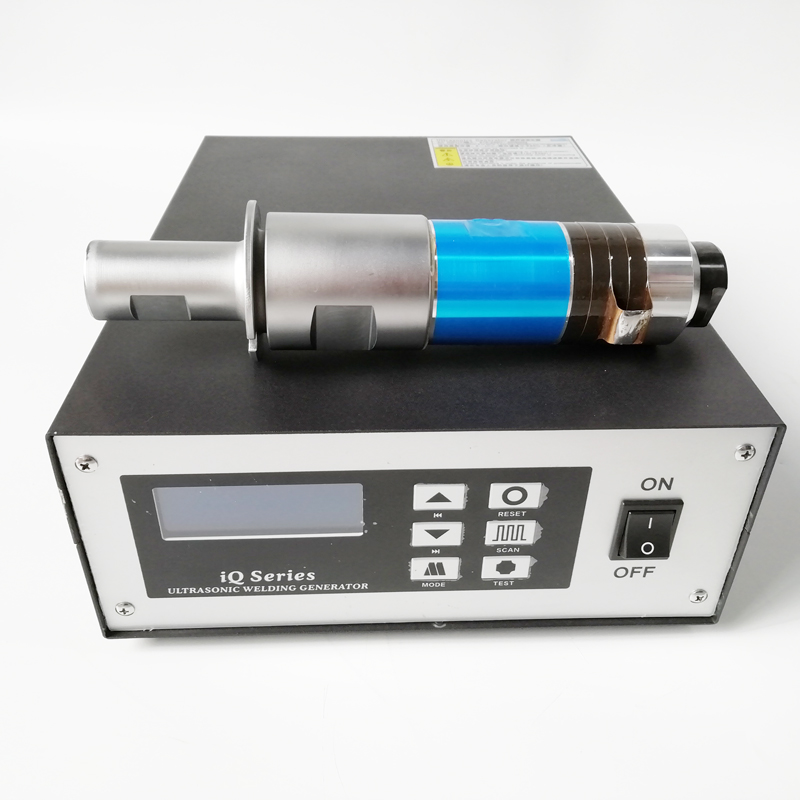

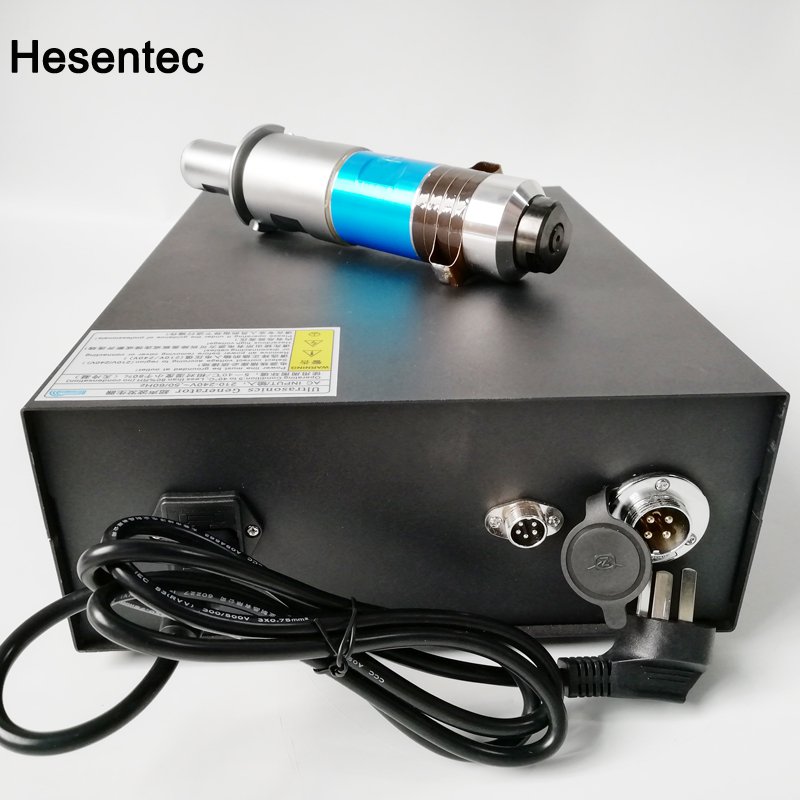

Ultrasonic Welding Transducer For Driving Power Supply 15K 2600W

Ultrasonic Welding Transducer For Driving Power Supply 15K 2600W

When ultrasound acts on the thermoplastic plastic interface, it produces tens of thousands of high-frequency vibration per second. This kind of high-frequency vibration reaches a certain amplitude. The ultrasonic energy is transmitted to the welding area through the upper welding parts. Because the acoustic resistance of the welding area, i.e. the interface between two welding parts, is high, local high temperature will be generated. Because of the poor thermal conductivity of the plastic, it can not be distributed in time and gathered in the welding area, resulting in the rapid melting of the contact surface of the two plastics, together with a certain pressure, to make them merge into one. When the ultrasound stops working, let the pressure continue for several seconds to solidify and form a solid molecular chain, so as to achieve the purpose of welding, the welding strength can be close to the strength of raw materials. The quality of ultrasonic plastic welding depends on the amplitude of the transducer welding joint, the pressure applied and the welding time. The welding time and the welding pressure can be adjusted, and the amplitude is determined by the transducer and the horn. There is an appropriate value for the interaction of these three quantities. When the energy exceeds the optimum value, the melting amount of plastics will be large, and the weld will be easily deformed. If the energy is small, it will not be easy to solder and the pressure imposed can not be too large. This optimum pressure is the product of the edge length of the welded part and the optimum pressure per mm of the edge.

Type	Power(W)	Frequency (KHz)
HS-HJDY-500W15	500W	15KHz
HS-HJDY-500W20	500W	20KHz
HS-HJDY-600W15	600W	15KHz
HS-HJDY-600W20	600W	20KHz
HS-HJDY-900W15	900W	15KHz
HS-HJDY-900W20	900W	20KHz
HS-HJDY-1500W15	1500W	15KHz
HS-HJDY-1500W20	1500W	20KHz
HS-HJDY-1800W15	1800W	15KHz
HS-HJDY-1800W20	1800W	20KHz
HS-HJDY-2000W15	2000W	15KHz
HS-HJDY-2000W20	2000W	20KHz
HS-HJDY-2500W15	2500W	15KHz
HS-HJDY-2500W20	2500W	20KHz
ultrasonic welding generator
