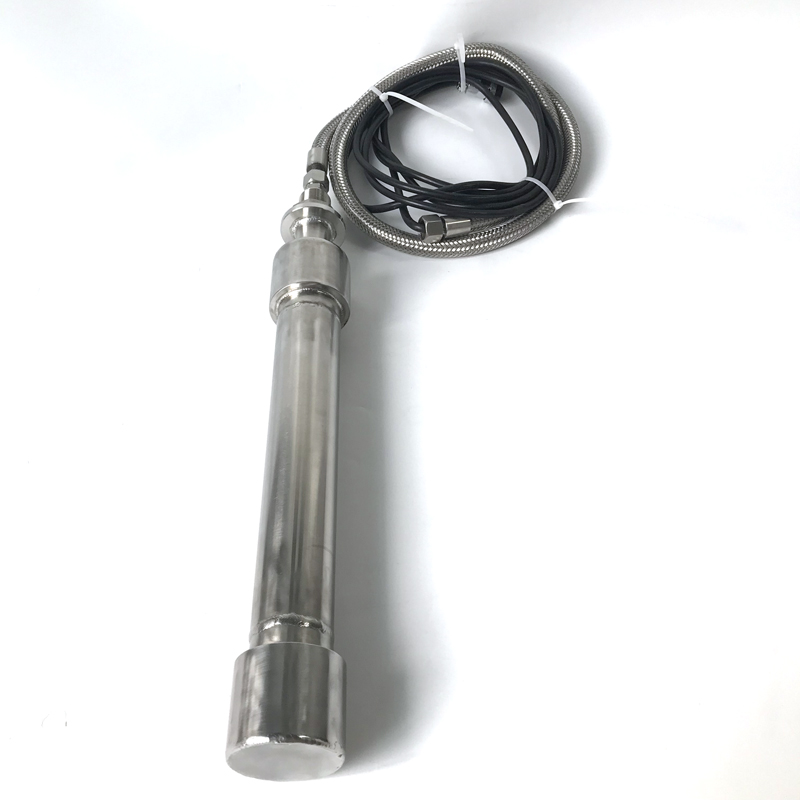

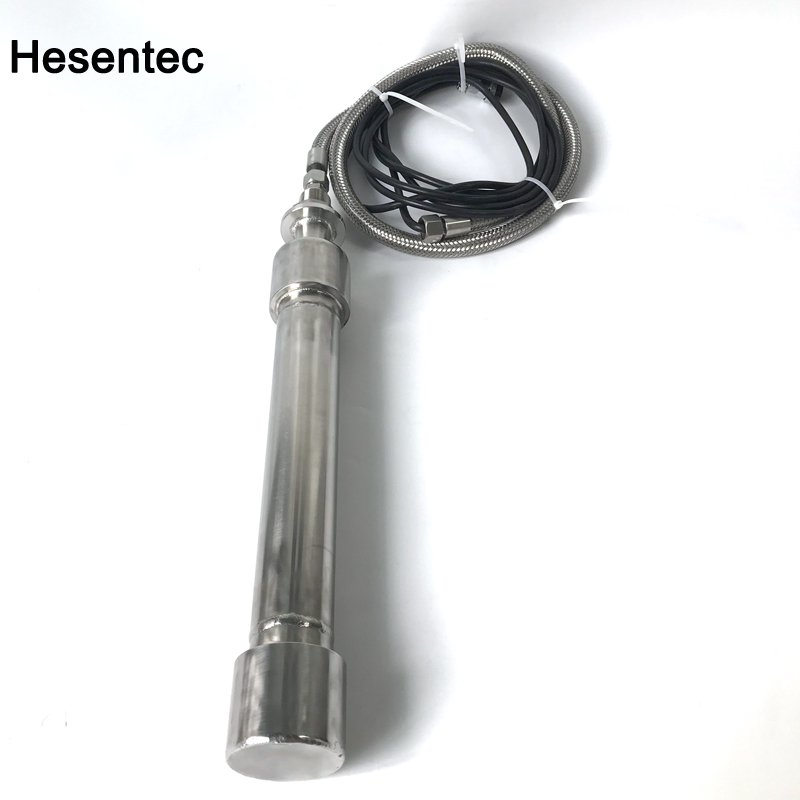

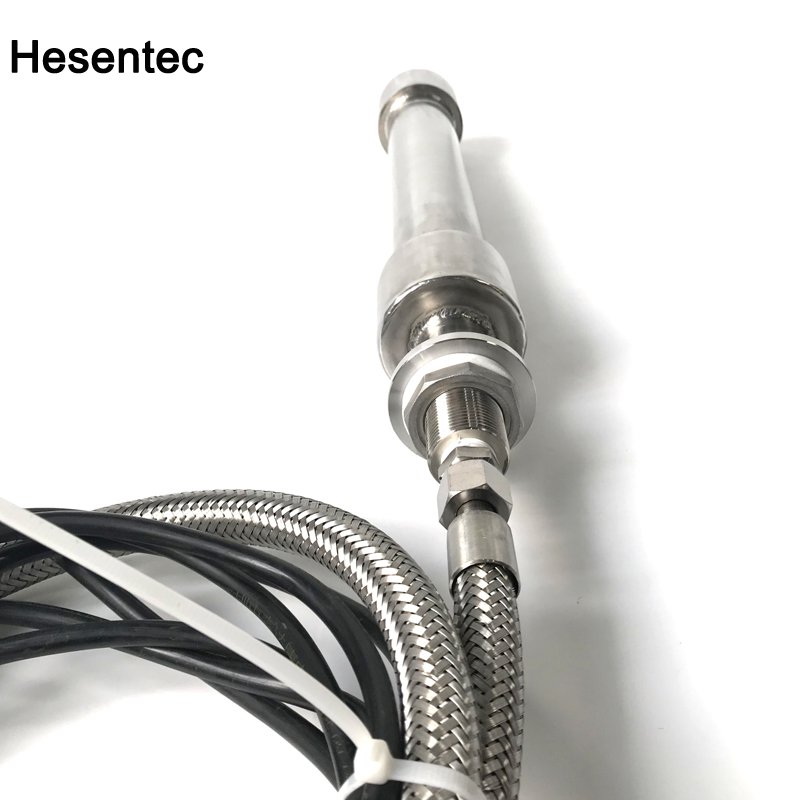

1000W Ultrasonic Immersible Transducer Rods For Pipe Cleaning

1000W Ultrasonic Immersible Transducer Rods For Pipe Cleaning

The focused full power series of ultrasonic vibration rods can be used for laboratory and industrial acoustic chemical treatment at the same time to meet the requirements of all users.

The main characteristics of biodiesel ultrasonic transducer are as follows:
1) Ultrasound power density is very high, which can deal with liquid which can not be treated by low power density.
Ultrasound probe is made of imported titanium alloy, durable.
3) High energy efficiency transducer to ensure strong efficiency.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-GSZDB1000W	25-27	1000	500	Φ50-55	68000
HS-GSZDB1500W	25-27	1500	850	Φ50-55	68000
HS-GSZDB2000W	25-27	2000	1100	Φ50-55	132000
