1500W Ultrasonic Reator For Biodiesel Dispersion and Uniform

1500W Ultrasonic Reator For Biodiesel Dispersion and Uniform

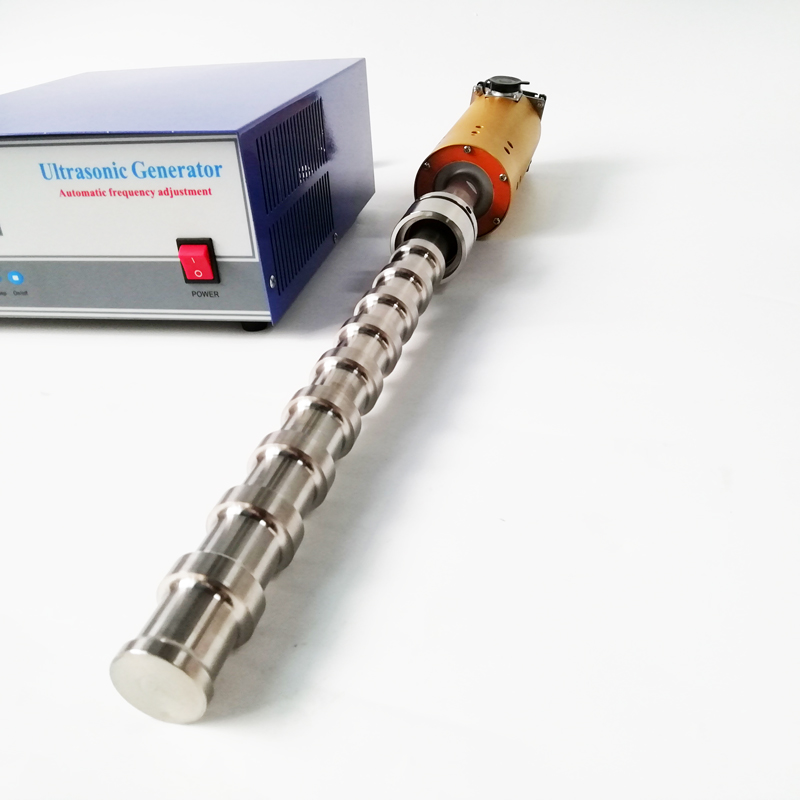

Ultrasonic Reator is also called ultrasonic vibrating rod. Compared with the traditional ultrasonic vibrating plate, it has the characteristics of wider application range and longer service life. Industrial applications use ultrasonic vibrating rods for cleaning, extraction, chemical reaction, anti-scaling, water treatment, etc., which is a very mature and widely used technology.
technical characteristics
(1) The cavitation is generated around the vibrating rod, and the ultrasonic energy is distributed evenly around the tank or the cylinder to achieve the cleaning effect.
(2) The power output of the ultrasonic vibrating bar is not affected by load changes such as liquid level, tank volume and temperature difference, and the power output is stable and uniform.
(3) The ultrasonic cell crusher has a service life of 1.5 times or more compared with the conventional ultrasonic vibration plate.
(4) The round tube design allows the cell crusher to be easily installed anywhere in the tank.
(5) Guaranteed to be completely sealed and waterproof.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
