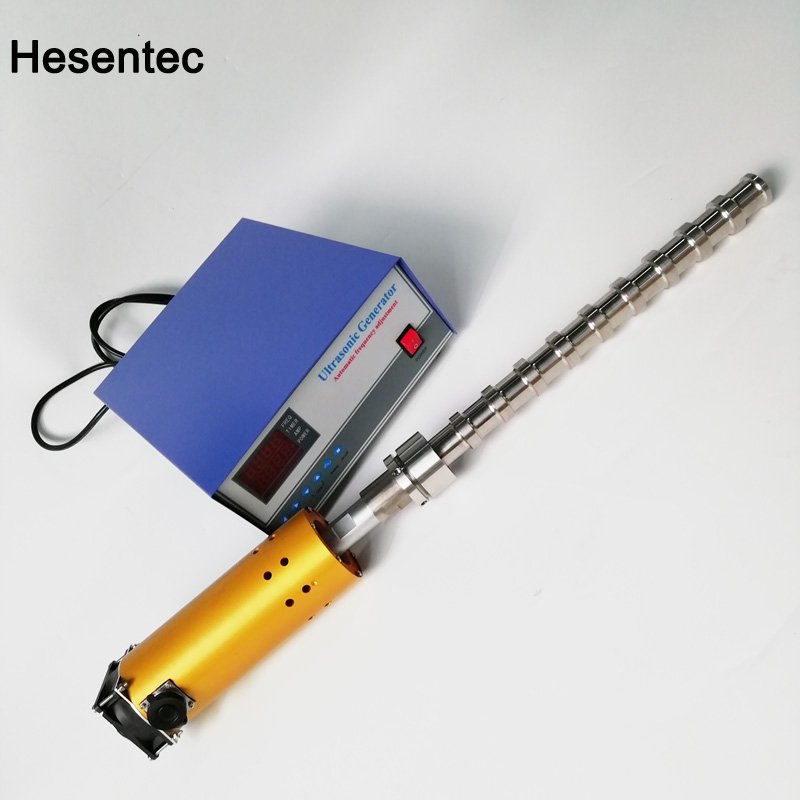

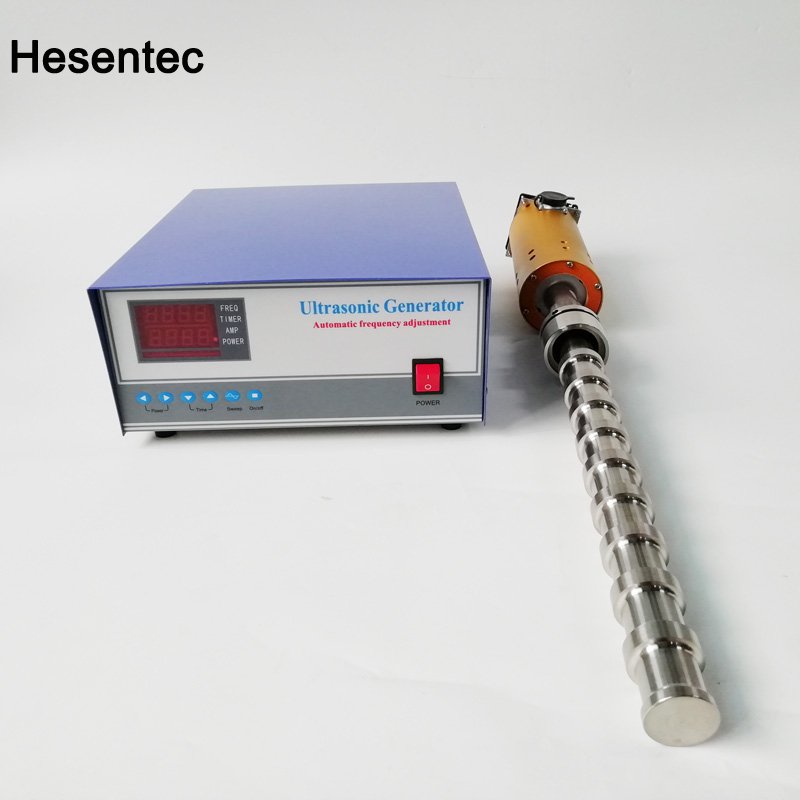

2000W Ultrasonic Probe Sonicator Reactor For Extraction Biodiesel
ultrasonic irradiation biodiesel for ultrasonic extraction biodiesel 20khz 1000Watt power ultrasonic
Sonochemistry can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, microbial control, degradation of toxic organic pollutants, biodegradation treatment, biocell comminution, dispersion, condensation, purification, sewage treatment, scale prevention and descaling, etc.
Fourth, basic configuration: vibrator (transducer, horn, transmitter), aluminium alloy shell, flange, drive power supply 1.
This product can be customized according to the actual use of customers and requirements, and can be customized range:
High power cabinet power: 50-600 W
Tool transmitter frequency: 20KHz-40KHz
Input voltage: 110V-240V; 50HZ-60HZ
Launch head length below flange: customized; bracket length: 50cm or customized
Shell: Aluminum alloy shell or plastic shell, the top of the shell can be fitted with fans, the shell can be fitted with heat sinks.
Power regulation mode: continuous type or graded type, regulation range 60% - 100%.
Emitter customization: according to the various liquid and colloidal objects to be treated, corrosiveness and the size requirements of the reactor customized, materials are: titanium alloy
Tubular Equipment
Type |
Frequency
(KHz) |
Ultrasound
Output(W) |
Total Length
(mm) |
Diameter
(mm) |
Static Capacity
(pF±10%) |
|
HS-ZDB1000W |
20 |
1000 |
500 |
Φ50-55 |
68000 |
|
HS-ZDB1500W |
20 |
1500 |
850 |
Φ50-55 |
68000 |
|
HS-ZDB2000W |
20 |
2000 |
1100 |
Φ50-55 |
132000 |
