Oils Extraction Machine Ultrasonic Liquid Processor 20KHz 2000W

Oils Extraction Machine Ultrasonic Liquid Processor 20KHz 2000W Introduction

Oils Extraction Machine Ultrasonic Liquid Processor 20KHz 2000W

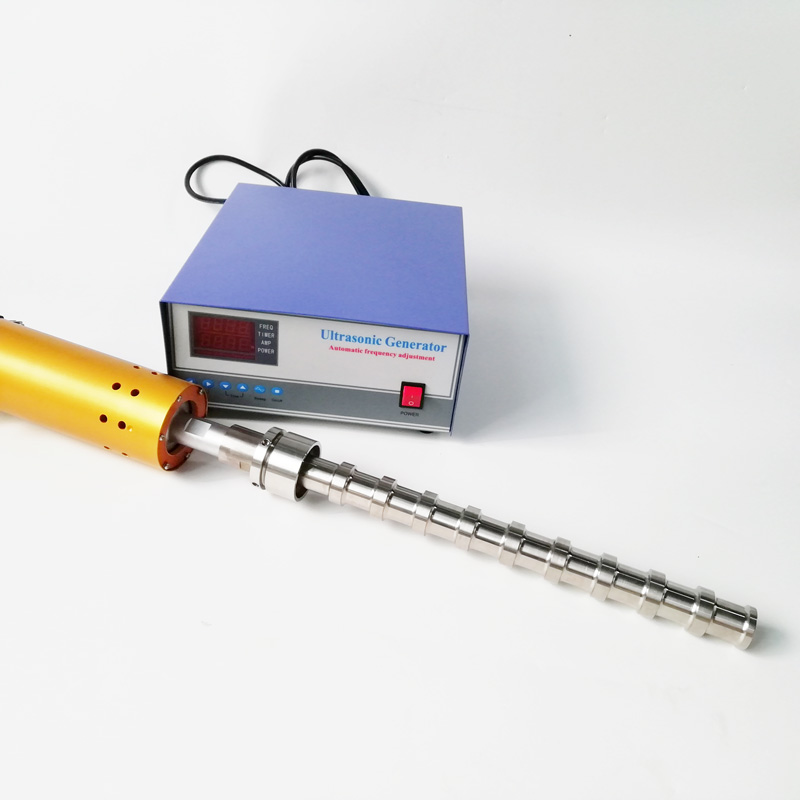

 Ultrasound vibrating rod utilizes the alternating period of positive and negative pressure in the process of transmission of ultrasound. In positive phase, the medium molecule is squeezed to increase the original density of the medium. In negative phase, the medium molecule is sparse and discrete, and the density of the medium decreases. Ultrasound vibrating rod can produce ultrasonic wave uniformly around 360 degrees, and the output of energy is not affected by the changes of liquid level, temperature difference and other loads. Ultrasound vibrating rod generally includes high-power ultrasonic transducer, amplitude changer and tool head (launcher), which is used to generate ultrasonic vibration and transmit the vibration energy to liquid.

Tubular Equipment
Type		 Frequency
(KHz)		 Ultrasound
Output(W)		 Total Length
(mm)		 Diameter
(mm)		 Static Capacity
(pF±10%)
HS-ZDB1000W 20 1000 500 Φ50-55 68000
HS-ZDB1500W 20 1500 850 Φ50-55 68000
HS-ZDB2000W 20 2000 1100 Φ50-55 132000

Oils Extraction Machine Ultrasonic Liquid Processor 20KHz 2000W
Oils Extraction Machine Ultrasonic Liquid Processor 20KHz 2000W
