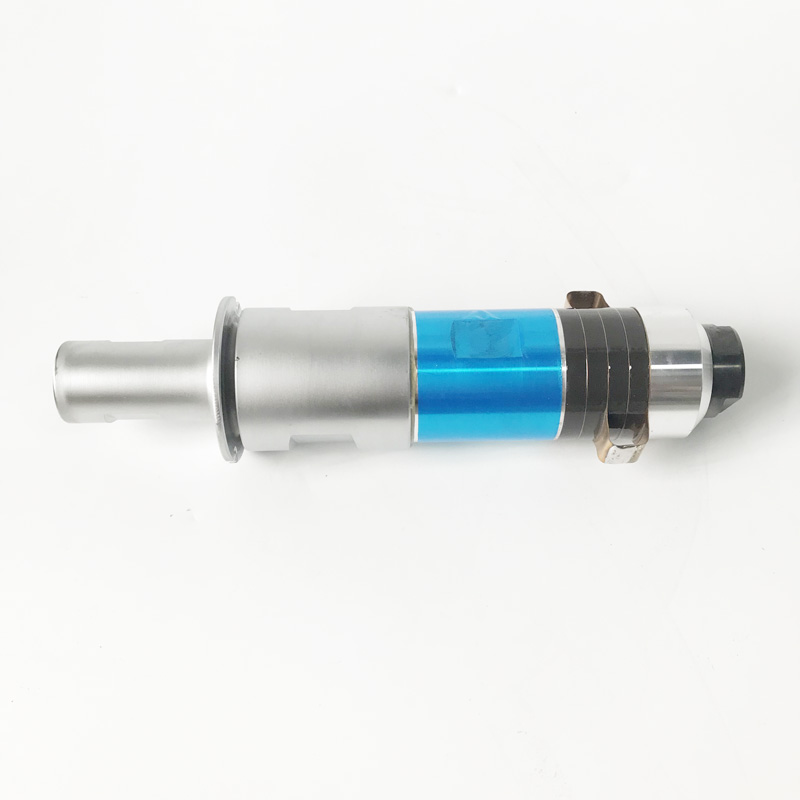

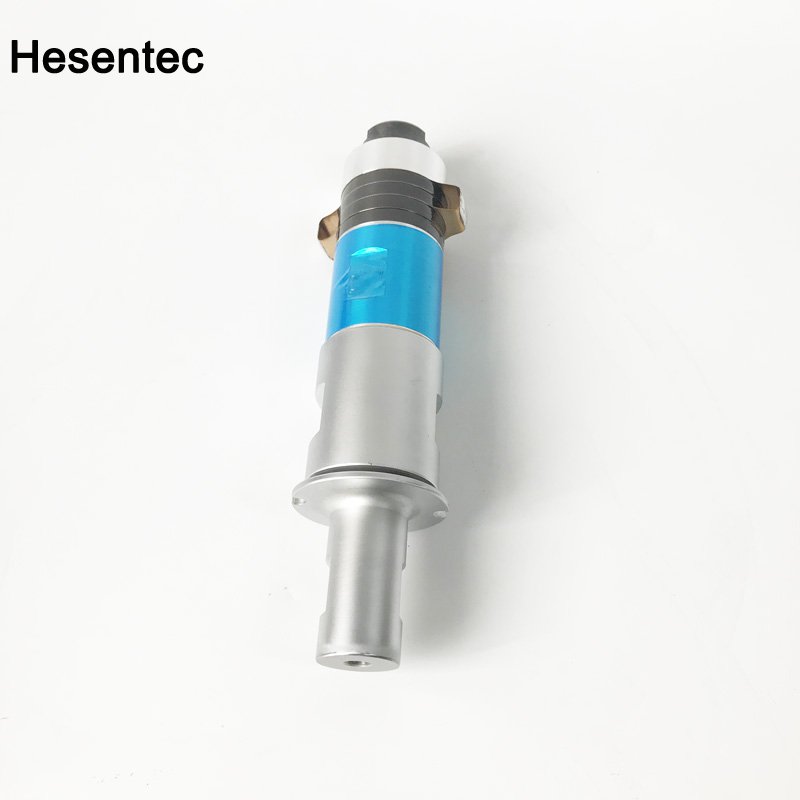

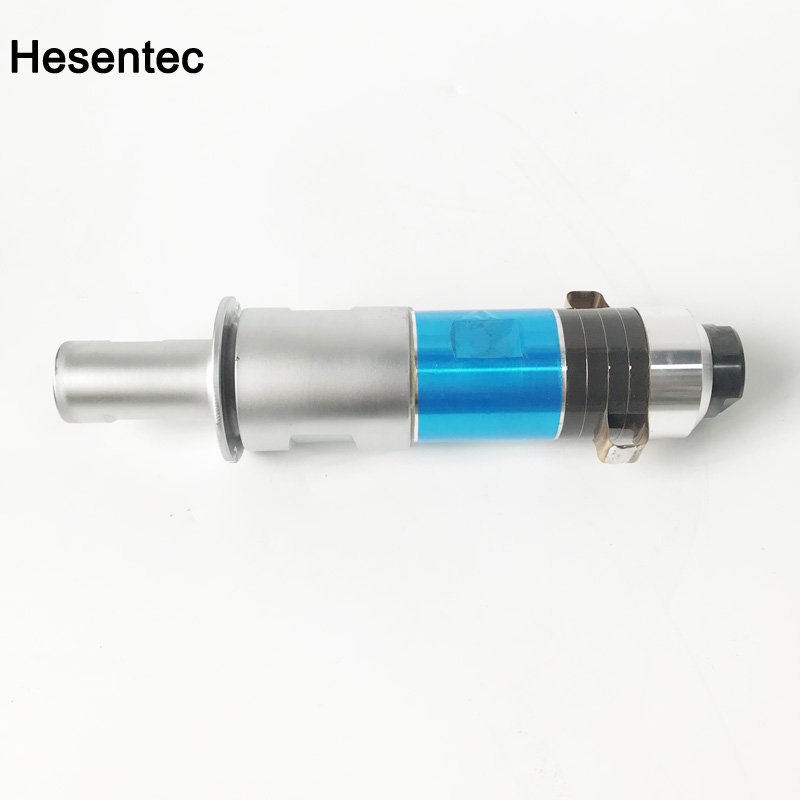

20KHz/2000W Hesentec Plastic Ultrasonic Welding Transducer

20KHz/2000W Hesentec Plastic Ultrasonic Welding Transducer

The main components of a set of ultrasonic welding systems include ultrasonic generators, transducers/horns/welding head triples, molds and frames. Linear vibration friction welding uses the frictional heat generated by the contact surfaces of two workpieces to be welded to melt the plastic. Thermal energy comes from a certain pressure, a workpiece reciprocating movement on the other surface with a certain displacement or amplitude. Once the desired degree of welding is reached, the vibration will cease and a certain amount of pressure will still be applied to the two workpieces, allowing the just welded portion to cool and solidify, resulting in a tight bond.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
HS-HJHNQ152500 P8	153	M20×1.5	15	15	13000	2500
HS-HJHNQ152000 P8	167	M20×1.5	15	10	9500	2000
HS-HJHNQ151500 P4	171	M18×1.5	15	12	12500	1500
HS-HJHNQ151800 P4	118	M20×1.5	20	15	15000	1800
HS-HJHNQ202000 P8	128	M18×1	20	10	11000	2000
HS-HJHNQ202000 P8	124	M18×1.5	20	12	10000	1500
HS-HJHNQ20700 P8	112	1/2-20 UNF	20	15	9000	700
HS-HJHNQ20900 P8	133	1/2-20 UNF	20	15	10000	900
HS-HJHNQ20600 P8	121	M18×1.5	20	15	6000	600
HS-HJHNQ30500 P8	77	M10×1.5	30	5	5500	500
HS-HJHNQ28200 P4	92.1	M10×1	28	20	3000	200
HS-HJHNQ28100 P8	91	M8×1	28	25	2200	100
HS-HJHNQ28250 P8	94	1/2-20 UNF	28	20	4000	250
HS-HJHNQ202000 P8	128	1/2-20 UNF	20	10	20000	2000
HS-HJHNQ201500 P8	124	1/2-20 UNF	20	10	16000	1500
HS-HJHNQ201300 P8	128	1/2-20 UNF	20	10	12500	1300
HS-HJHNQ201500 P8	132	1/2-20 UNF	20	10	11000	1500
HS-HJHNQ20900 P8	123	1/2-20 UNF	20	10	9500	900
HS-HJHNQ152000 P4	171	M18×1.5	15	12	10000	2000
HS-HJHNQ35100 P8	71	M8×1	35	25	2200	100
HS-HJHNQ38100 P8	66	M8×1.25	38	40	1200	100
HS-HJHNQ38200 P4	65	M8×1	38	14	3300	200
