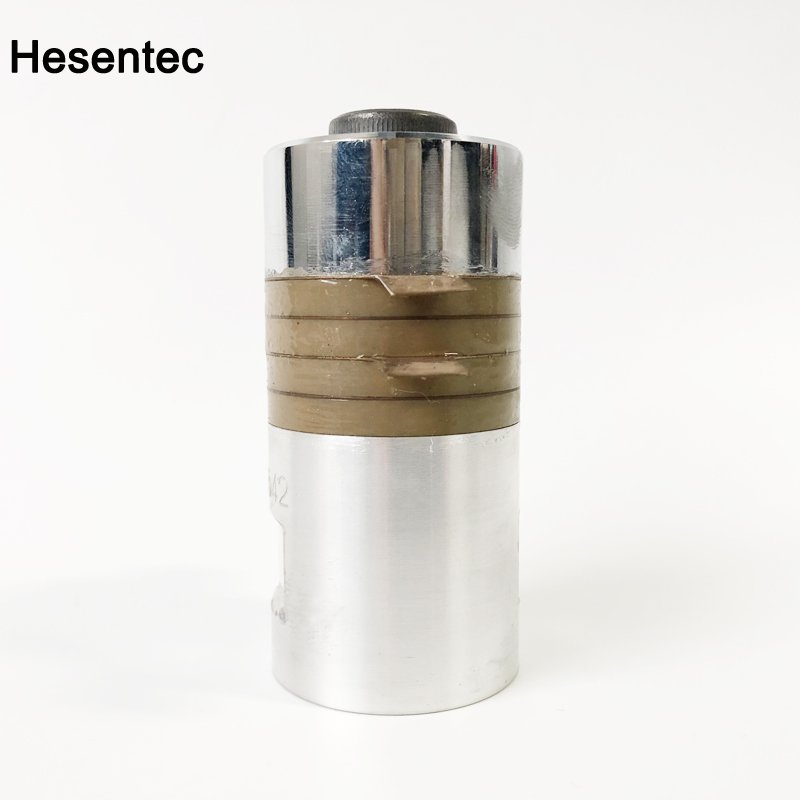

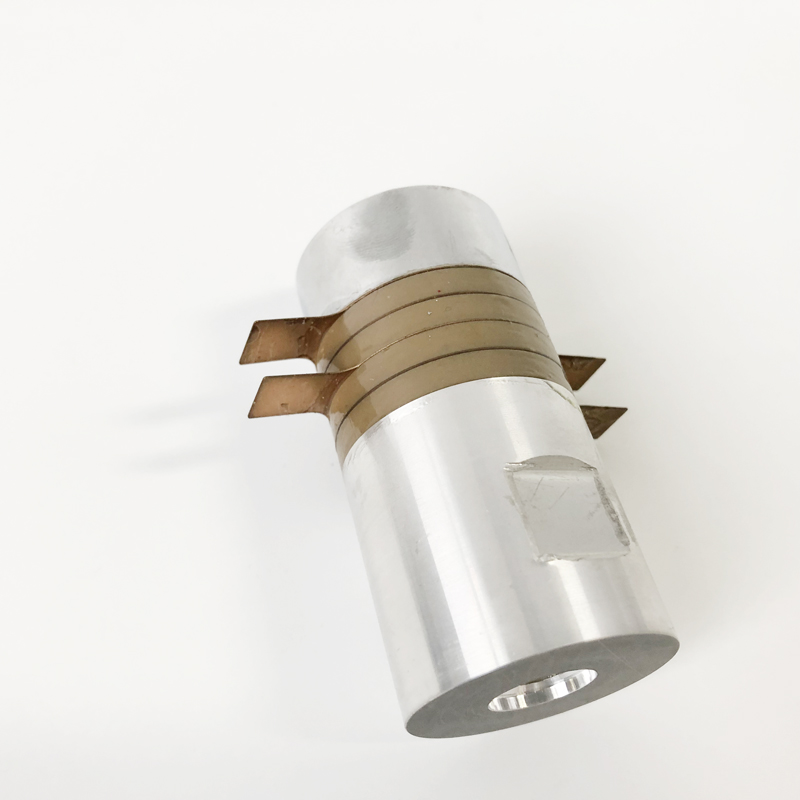

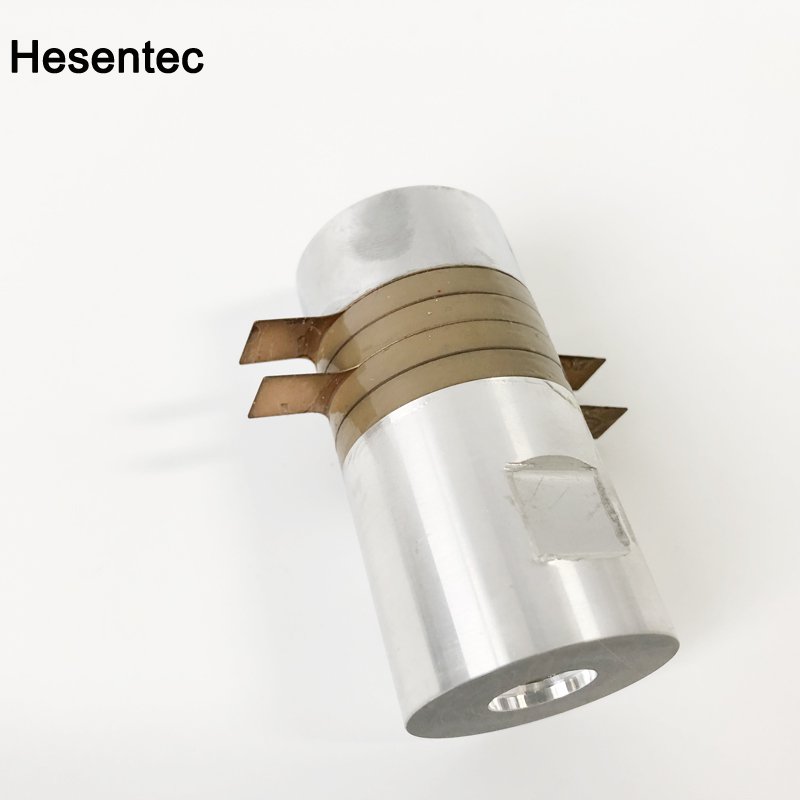

35KHz Ultrasonic Welding Transducer For Plastic Welding Machine
The ultrasonic plastic welding transducer transmits ultrasonic waves through the welding head to the plastic processing parts to make the two plastic joints
Due to the intense friction caused by the ultrasonic waves, the frictional heat melts the plastic joint surface to complete the gluing. The
The technology has the advantages of high speed, strong weld seam, etc. More importantly, it can make the production and processing of plastic products automatic.
Chemical. Ultrasonic plastic welding machine can get plastic welding, embedding, forming, riveting, spot welding, cutting,
Stitching and other operations. As long as the welding head is changed, it can be used in a variety of applications.
Our company specializes in the production of lace machine welding transducers. This product has high performance, high life and good welding performance. Our company specializes in the development of ultrasonic horns, transducers, vibrators and other ultrasonic accessories.
[Customizable titanium alloy material], stable performance, no corrosion, no rust, wear resistance, high temperature resistance, stable frequency.
|
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz) |
Resonance Impedance(Ω) |
Capacity(pF) |
Input Power
(W) |
|
HS-HJHNQ152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
|
HS-HJHNQ152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
|
HS-HJHNQ151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
|
HS-HJHNQ151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
|
HS-HJHNQ202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
|
HS-HJHNQ202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
|
HS-HJHNQ20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
|
HS-HJHNQ20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
|
HS-HJHNQ20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
|
HS-HJHNQ30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
|
HS-HJHNQ28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
|
HS-HJHNQ28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
|
HS-HJHNQ28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
|
HS-HJHNQ202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
|
HS-HJHNQ201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
|
HS-HJHNQ201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
|
HS-HJHNQ201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
|
HS-HJHNQ20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
|
HS-HJHNQ152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
|
HS-HJHNQ35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
|
HS-HJHNQ38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
|
HS-HJHNQ38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
