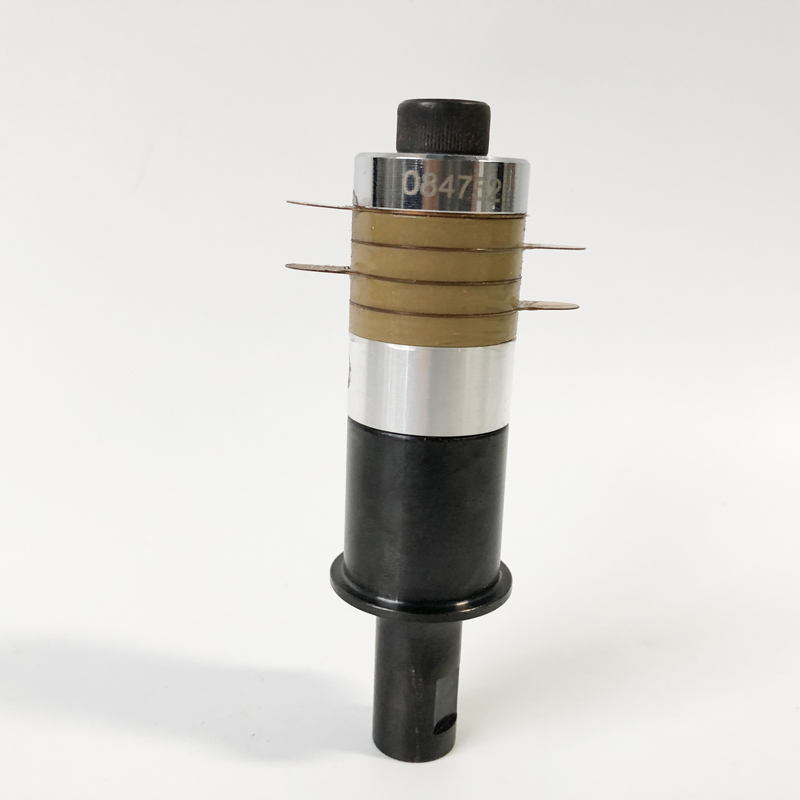

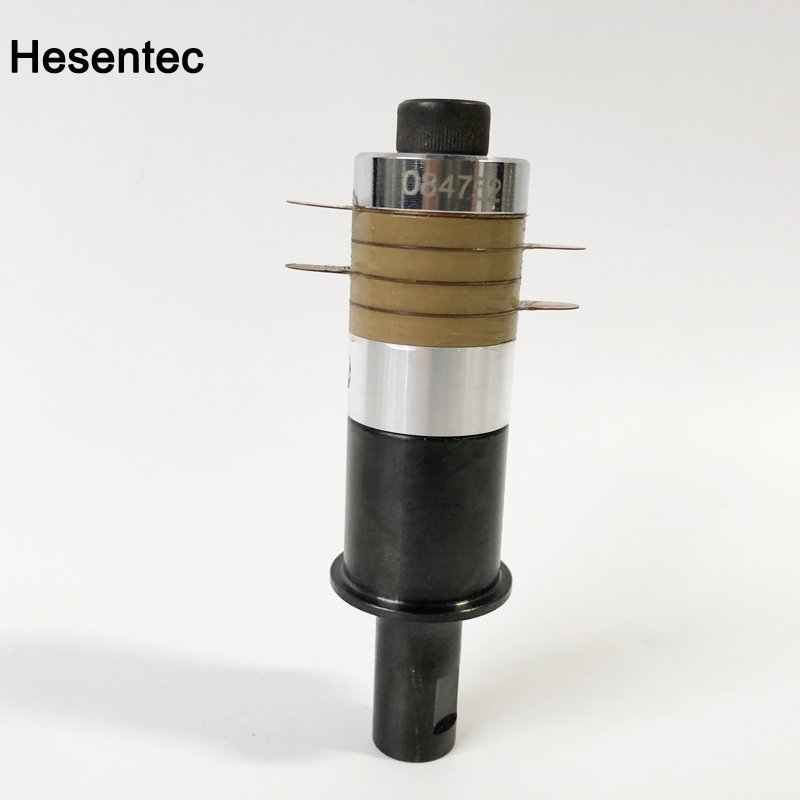

40KHz 500W Hesentec Ultrasonic Welding Piezoelectric Transducer

40KHz 500W Hesentec Ultrasonic Welding Piezoelectric Transducer Introduction

40KHz 500W Hesentec Ultrasonic Welding Piezoelectric Transducer

The principle of ultrasonic welding piezoelectric transducer:
The planning and production of ultrasonic welding piezoelectric transducers is different from that of general molds. Because the general mold requirements are about heating equipment or commodity requests, and other requests, ultrasonic welding piezoelectric transducers have other molds. There is no one parameter, that is, the frequency and frequency play a key role in the ultrasonic mold, because it is related to whether the ultrasonic welding piezoelectric transducer can be used normally. Ultrasonic welding of piezoelectric transducers is also required to pay attention to, as long as the ultrasonic transducers on the ultrasonic molds and ultrasonic machines are only suitable for fitting, when we find that the current of the ultrasonic generator is too large to work, this It is very likely that the mold is not tightened or the mold is cracked, so it is crucial that the tightening of the mold is normal for the ultrasonic operation. Some time-differential ultrasonic welding piezoelectric transducers may appear to be hot after a long period of operation. This situation is normal. At this time, we can remove the mold and soak it in water to cool it, perhaps with a damp cloth. When it comes down, the effect is very good. If the frequency of the ultrasonic welding piezoelectric transducer is wrong, we will find that the current of the ultrasonic generator is very large. When the frequency distance is not large, we can normalize the operation by conditioning, but when the distance of the frequency is large, it cannot be Conditioned. The planning of ultrasonically welded piezoelectric transducers is by no means as simple as its shape. Instead, it requires a lot of expertise and skills – how to ensure that the welding head can be the most economical? How to ensure that the welding head can effectively transfer the mechanical vibration of the transducer to the workpiece, and to form a stable and stable welding, etc., each step is considered very abundant. Ultrasonic welding of piezoelectric transducers is one of the most skilled depths of ultrasonic skills. Even with years of planning and development experience, we are convinced that the best weld heads can be produced with rigorous testing and quality control. The need to perfectly combine the acoustic and mechanical properties of the weld head to plan the product that best meets the customer's needs. Each set of welding heads and molds produced by the company, whether it is a standard product or customized according to the user's request, is made of the best materials and passed the repeated test. The parameters of the shape, strength and audio of the welding head have been tested repeatedly to meet the most stringent specifications, and the welding head and the transducer are optimally matched.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
HS-HJHNQ152500 P8 153 M20×1.5 15 15 13000 2500
HS-HJHNQ152000 P8 167 M20×1.5 15 10 9500 2000
HS-HJHNQ151500 P4 171 M18×1.5 15 12 12500 1500
HS-HJHNQ151800 P4 118 M20×1.5 20 15 15000 1800
HS-HJHNQ202000 P8 128 M18×1 20 10 11000 2000
HS-HJHNQ202000 P8 124 M18×1.5 20 12 10000 1500
HS-HJHNQ20700 P8 112 1/2-20 UNF 20 15 9000 700
HS-HJHNQ20900 P8 133 1/2-20 UNF 20 15 10000 900
HS-HJHNQ20600 P8 121 M18×1.5 20 15 6000 600
HS-HJHNQ30500 P8 77 M10×1.5 30 5 5500 500
HS-HJHNQ28200 P4 92.1 M10×1 28 20 3000 200
HS-HJHNQ28100 P8 91 M8×1 28 25 2200 100
HS-HJHNQ28250 P8 94 1/2-20 UNF 28 20 4000 250
HS-HJHNQ202000 P8 128 1/2-20 UNF 20 10 20000 2000
HS-HJHNQ201500 P8 124 1/2-20 UNF 20 10 16000 1500
HS-HJHNQ201300 P8 128 1/2-20 UNF 20 10 12500 1300
HS-HJHNQ201500 P8 132 1/2-20 UNF 20 10 11000 1500
HS-HJHNQ20900 P8 123 1/2-20 UNF 20 10 9500 900
HS-HJHNQ152000 P4 171 M18×1.5 15 12 10000 2000
HS-HJHNQ35100 P8 71 M8×1 35 25 2200 100
HS-HJHNQ38100 P8 66 M8×1.25 38 40 1200 100
HS-HJHNQ38200 P4 65 M8×1 38 14 3300 200


40KHz 500W Hesentec Ultrasonic Welding Piezoelectric Transducer
40KHz 500W Hesentec Ultrasonic Welding Piezoelectric Transducer
