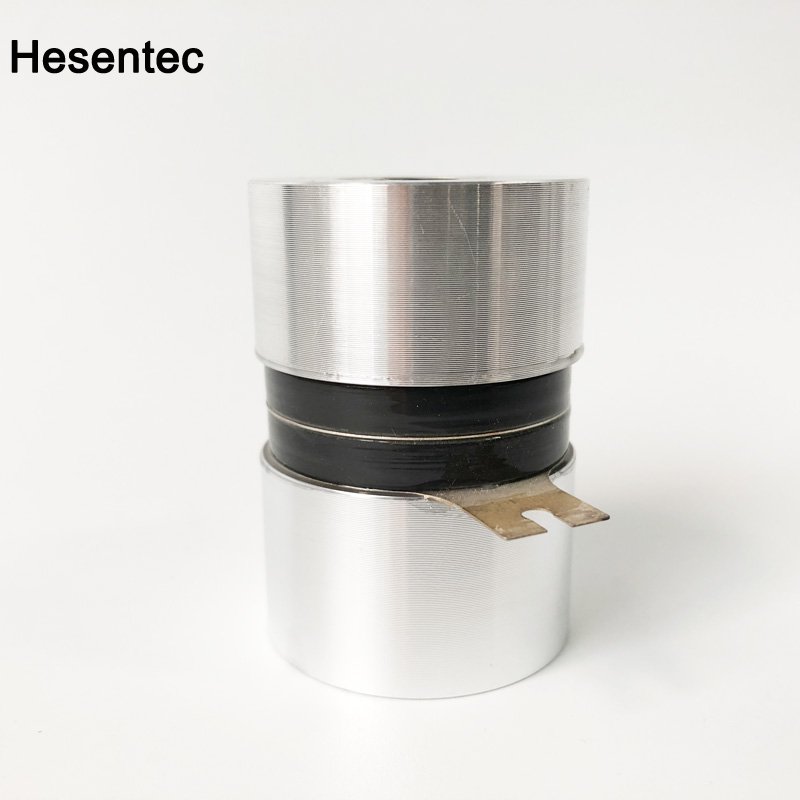

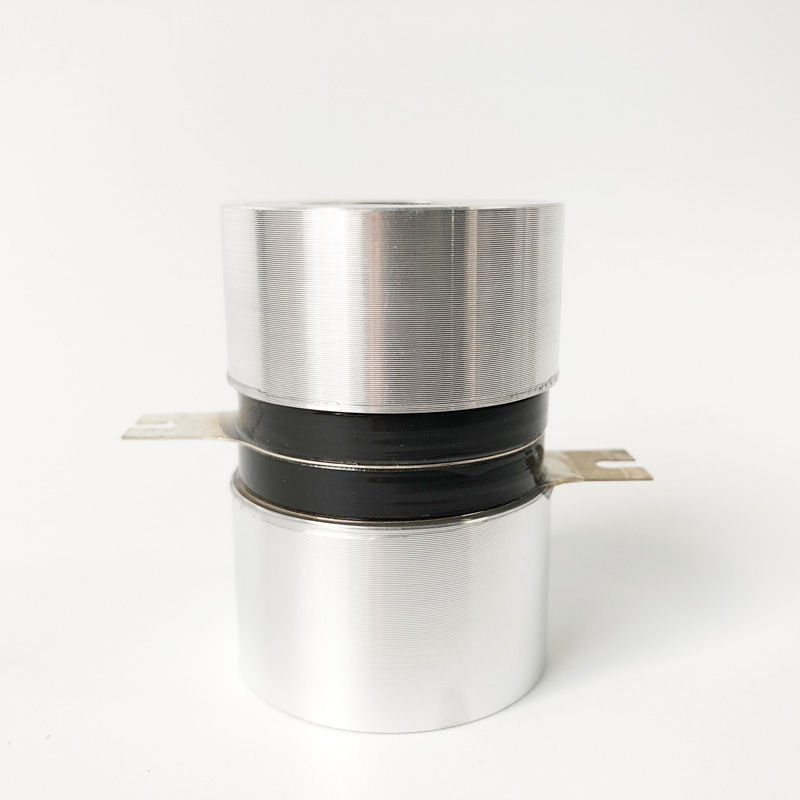

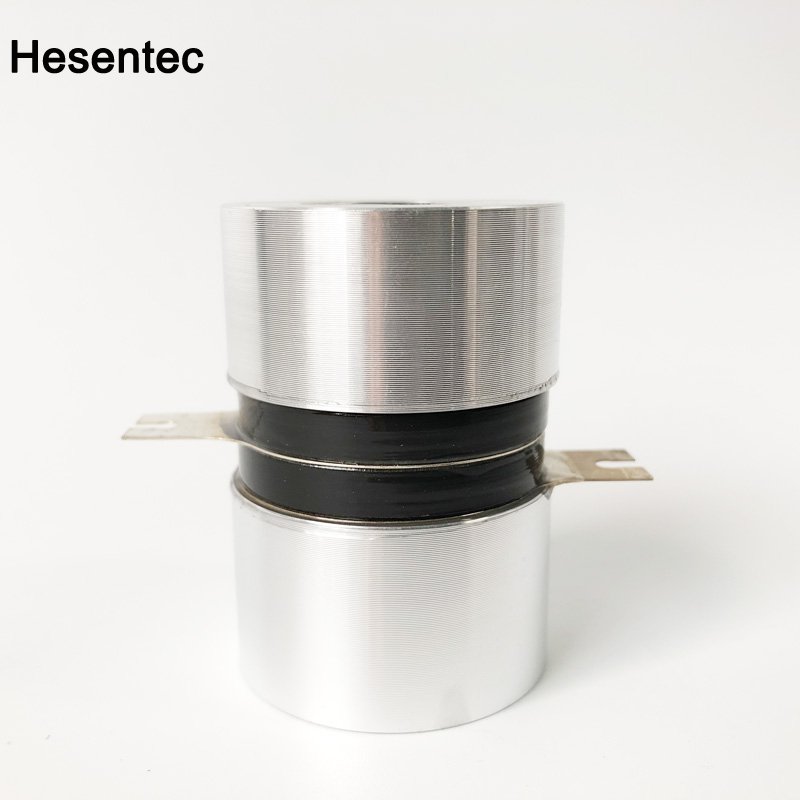

130K 50W Hesen High Frequency Ultrasonic Piezoceramic Transducer

130K 50W Hesen High Frequency Ultrasonic Piezoceramic Transducer Introduction

130K 50W Hesen High Frequency Ultrasonic Piezoceramic Transducer

Ultrasonic piezoceramic transducer material classification

   Ultrasonic piezoceramic transducers generally have two types of piezoelectric transducers and piezoelectric crystal transducers.

Type of transducer

   There are nickel plate transducers and ferrite transducers that are magnetostrictive.
   The electro-acoustic conversion efficiency of the ferrite transducer is relatively low, and the efficiency is generally reduced after one or two years of use, and even the electroacoustic conversion capability is almost lost. Nickel plate transducers are complex and expensive, so they are rarely used today.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
(KHz) (pF) (Ω)  Radiation Head*Height (mm) (W) (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

130K 50W Hesen High Frequency Ultrasonic Piezoceramic Transducer
130K 50W Hesen High Frequency Ultrasonic Piezoceramic Transducer
