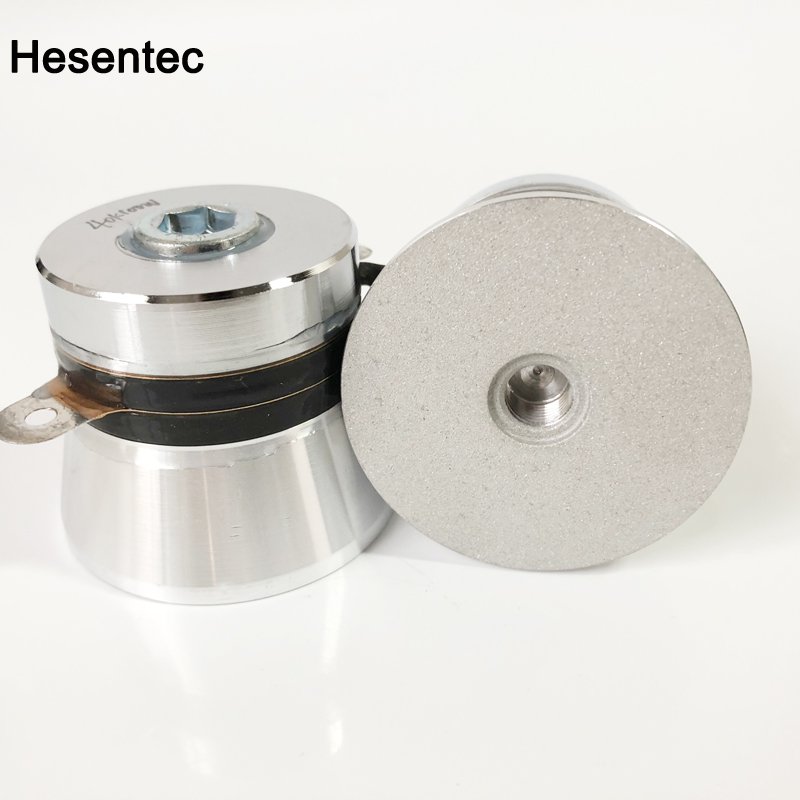

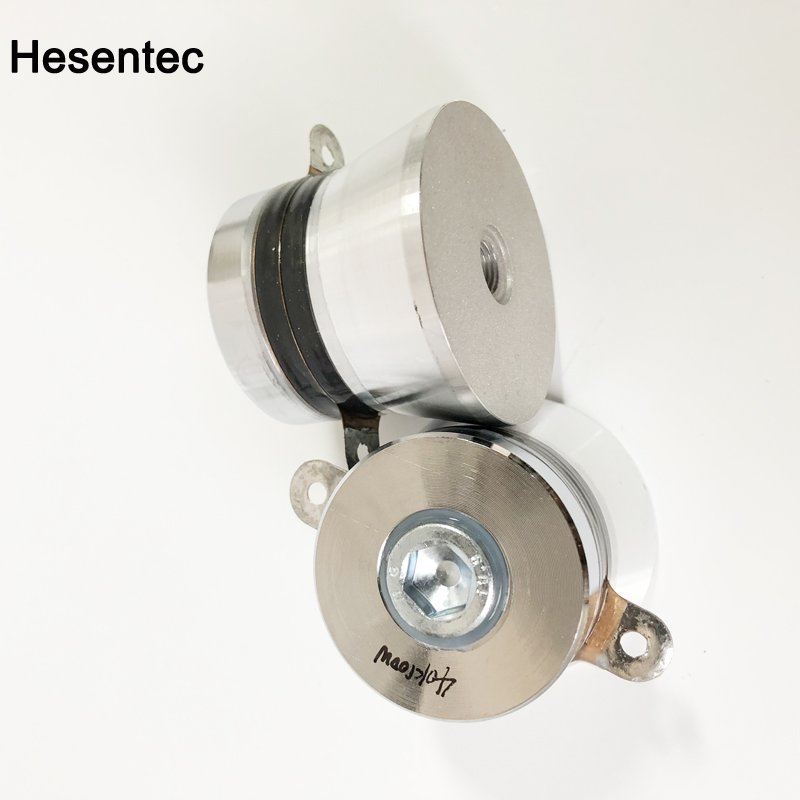

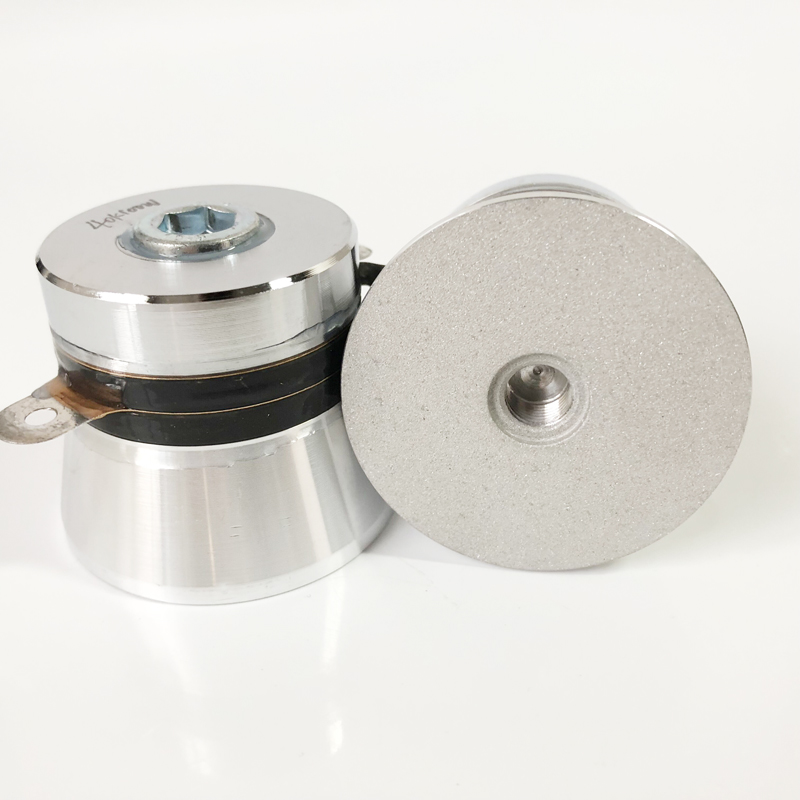

  • 40KHz 100W Hesen Ultrasonic Piezoceramic Transducer

40KHz 100W Hesen Ultrasonic Piezoceramic Transducer

40KHz 100W Hesen Ultrasonic Piezoceramic Transducer Introduction

40KHz 100W Hesen Ultrasonic Piezoceramic Transducer

At the beginning of the 20th century, the development of electronics enabled people to make various electromechanical transducers using certain materials and magnetostrictive effects. In 1917, French physicist Lang Zhiwan made a sandwich ultrasonic transducer using natural piezoelectric quartz and used it to explore submarines on the seabed. With the continuous development of ultrasonic applications in various military and national economic sectors, magnetostrictive transducers with more ultrasonic power, as well as electric, electromagnetic, and electrostatic transducers for various purposes Ultrasonic transducer.

Ultrasonic piezoelectric transducer features

        Low calorific value
        2. Good thermal stability
        3. Small resonance impedance
        4. The frequency is consistent with the static capacitance
        5. Frequency and impedance waveforms are complete and smooth

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

40KHz 100W Hesen Ultrasonic Piezoceramic Transducer
40KHz 100W Hesen Ultrasonic Piezoceramic Transducer
