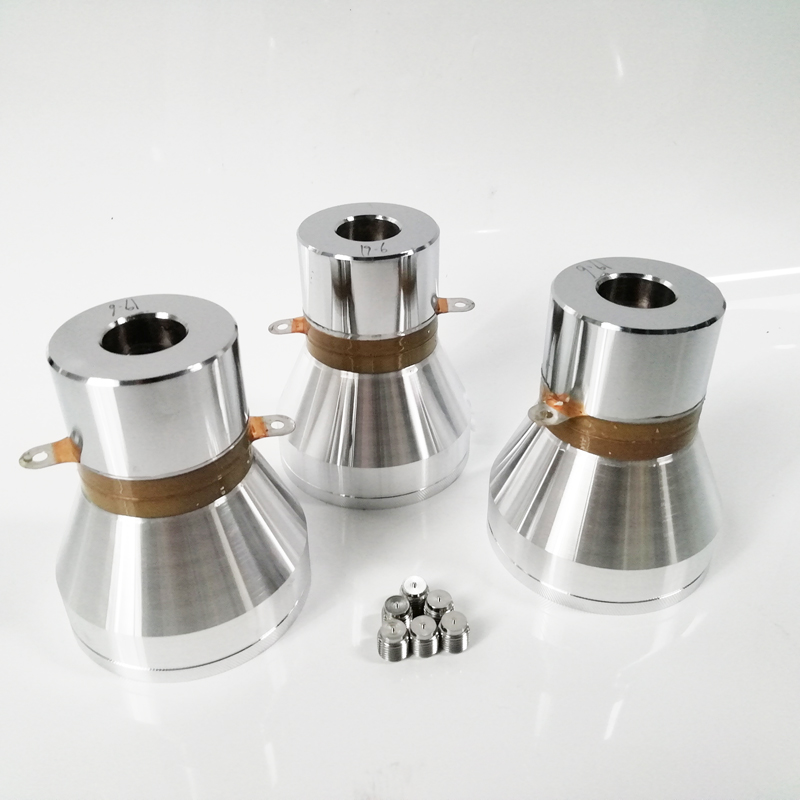

  • 20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer

20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer

20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer Introduction

20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer

Ultrasonic piezoceramic transdcuer 20KHz/25KHz/28KHz/40KHz ultrasonic transducer, ultrasonic chip, ultrasonic voltage ceramic, high power transducer, 43KHZ, 35KHZ frequency transducer uses piezoelectric ceramic to convert external force into electric energy The characteristics can be used to manufacture piezoelectric igniters, mobile X-ray power supplies, and projectile detonators. By replacing the ordinary flint with two piezoelectric ceramic columns of 3 mm in diameter and 5 mm in height, a gas electronic lighter capable of continuously firing tens of thousands of times can be made. Using piezoelectric ceramics to convert electrical energy into ultrasonic vibration, it can be used to explore the position and shape of underwater fish, non-destructive testing of metals, ultrasonic cleaning, ultrasonic medical treatment, and various ultrasonic cutters and welding devices. Soldering iron, processing plastics and even metals.
Ultrasonic cleaning is the ultrasonic vibration generated by the transducer. The high-pressure cavitation generated by the cavitation effect in the water impacts the object to be cleaned and achieves a good cleaning effect.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SE-3828/40 28/40±1.0 3800±10% ≤30Ω 65*70 60w ≥100MΩ
HS-8SS-2540/130 40/130±2.0 3100±10% ≤30Ω 25*58 20w ≥100MΩ
HS-4SS-3840/68 38/66±2.0 4800±10% ≤20Ω 50*65 50w ≥100MΩ
HS-4SS-3840/80/130 38/79/128±2.0 4200±10% ≤25Ω 40*54 60w ≥100MΩ
HS-4SS-3840/60/80 38/65/84±2.0 4800±10% ≤25Ω 40*54 60w ≥100MΩ
HS-8SH-5020/40/60 20/40/60±2.0 5200±10% ≤25Ω 78*94 120w ≥100MΩ
HS-4SS-3840/100/160 38/100/160±2.0 4800±10% ≤25Ω 40*57 60w ≥100MΩ


20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer
20KHz 40Hz 60KHz 120W P4 Multi Frequency Piezoceramic Transducer
