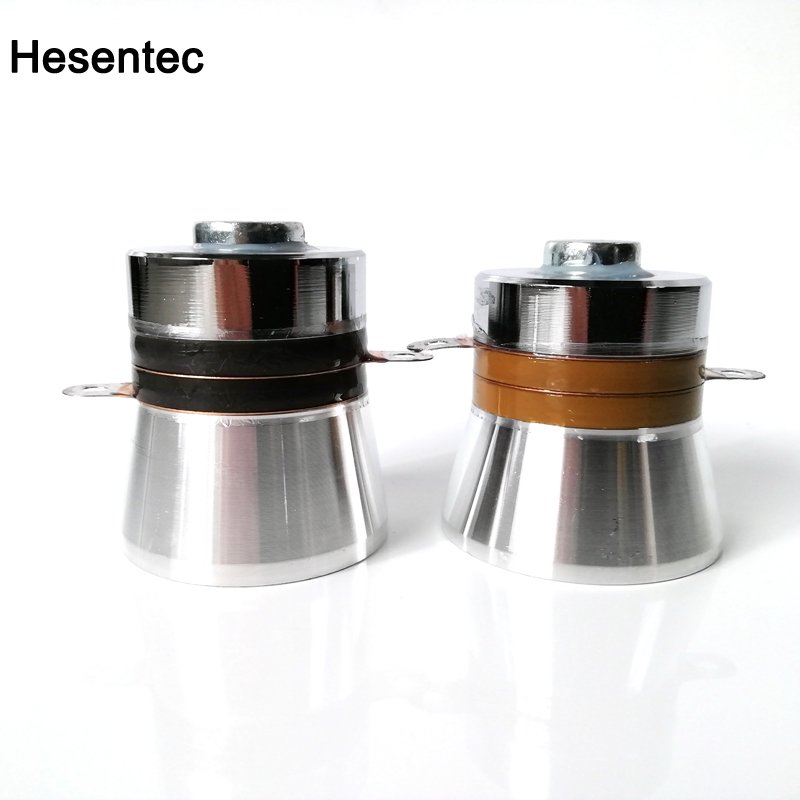

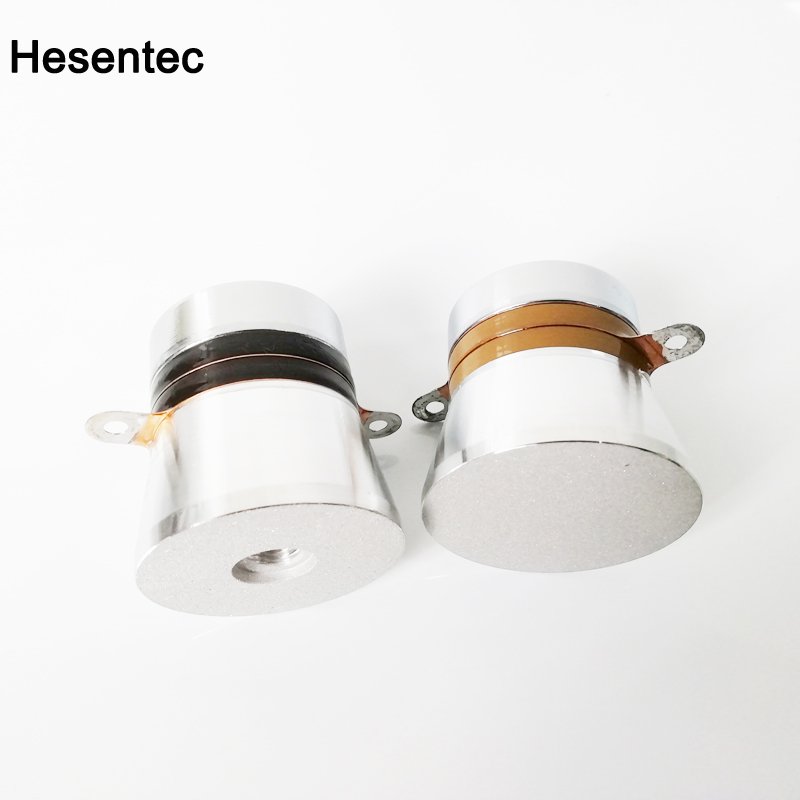

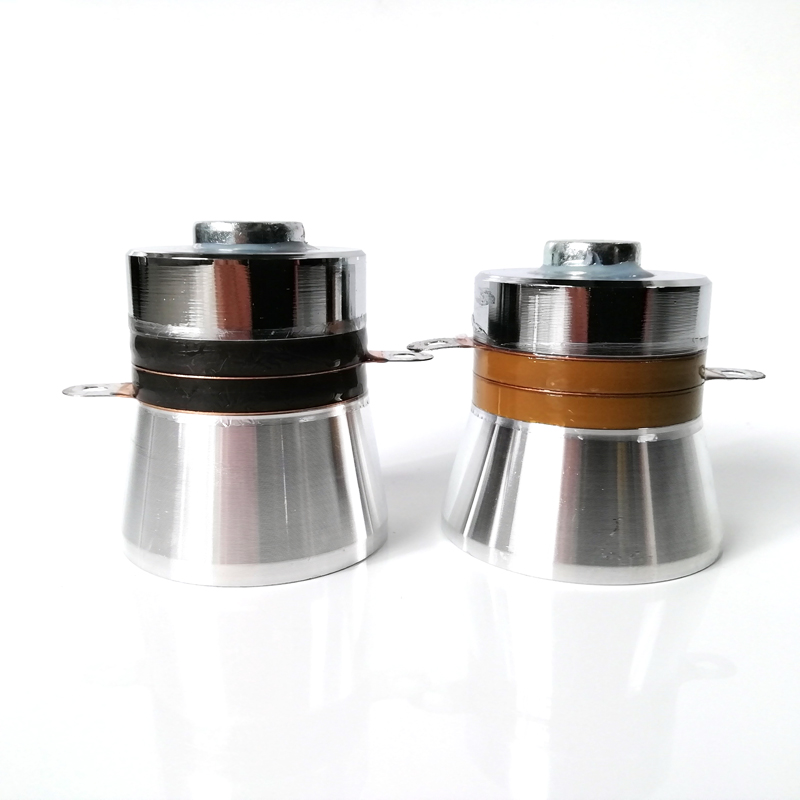

40KHz 50W/60W HESEN Ultrasonic Transducer /Oscillator /Vibrator

40KHz 50W/60W HESEN Ultrasonic Transducer /Oscillator /Vibrator Introduction

40KHz 50W/60W HESEN Ultrasonic Transducer /Oscillator /Vibrator

Ultrasonic transducer oscillator vibrator principle:

1. The piezoelectric element and the internal electrode are alternately stacked in the ultrasonic vibrator, and have an external electrode that is electrically connected to the internal electrode;
The ultrasonic transducer includes an internal electrode group that is substantially divided into four portions along a second direction and a third direction orthogonal to a lamination direction as the first direction, and a first external electrode group and a second external electrode group respectively The electrode group is turned on; by applying an alternating voltage to the first external electrode group and the second external electrode group, the longitudinal vibration mode in which the main vibration occurs in the second direction and the main vibration are in the third direction a bending vibration mode that occurs, thereby generating ultrasonic elliptical vibration;

odel Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ
