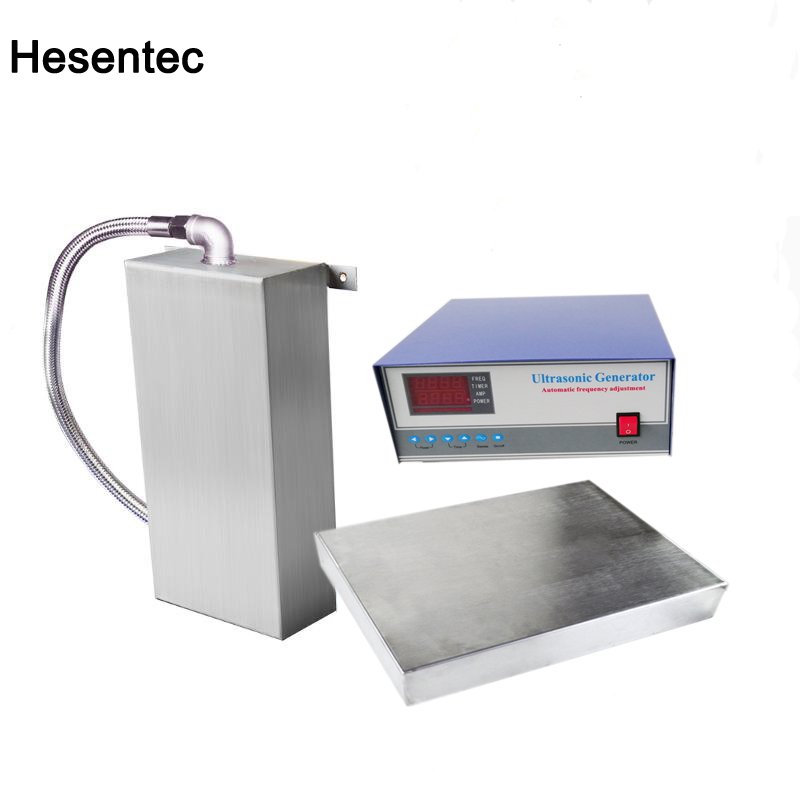

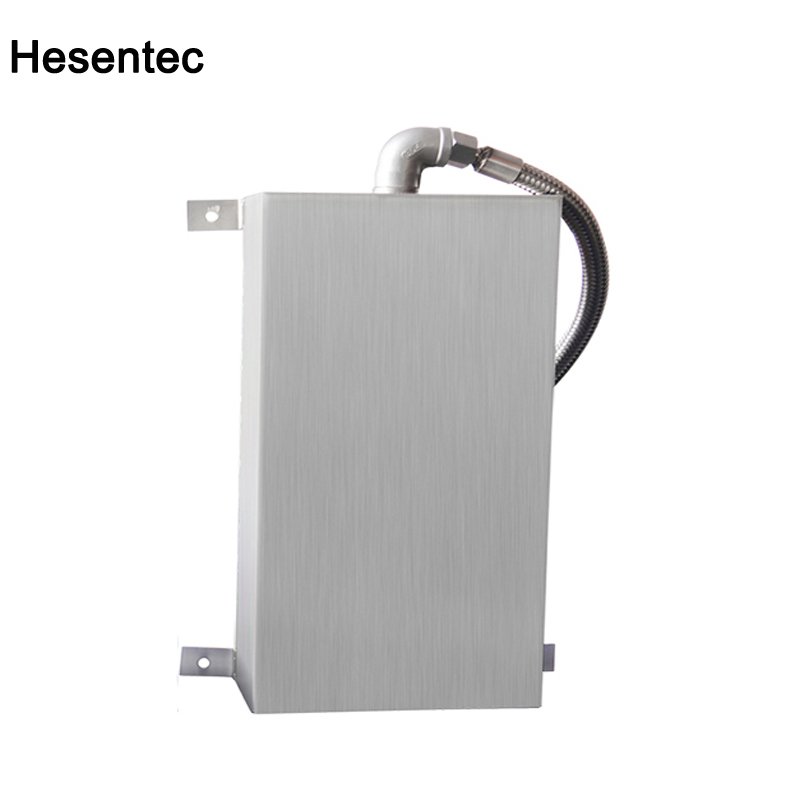

1000W 40Khz Frequency Immersible Ultrasonic Transducer Box
Applied areas of electroplating industry: grease, polishing wax and dirt removal.
Pharmaceutical industry: Chinese medicine extraction, bottle cleaning. Optical industry: lens, prism, lens, frame, liquid crystal glass, etc. before and after coating or assembly cleaning.
Machinery industry: oil pump nozzle, engine parts, steam and friction parts, compressor parts, sewing machine parts, metal stamping parts cleaning.
Hardware industry: hardware tools, garden tools, medical equipment cleaning. Other industries: ceramics, tableware, lamps, accessories, crystal, metal pipe cleaning. This product is made of imported high quality stainless steel. The radiant surface of vibration plate has been specially treated, and its service life has been prolonged by more than 50%. It is easy to install, and can be installed at the bottom of the groove to radiate the ultrasonic wave upward, or on the side of the groove or on the liquid surface to emit the ultrasonic wave downward. The specific installation method should be determined according to the shape of the workpiece and the cleaning requirements. The ultrasonic power and the size of the vibration box should be determined according to the volume of the cleaning tank. The general power density should be between 8 and 15KW/m.
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
