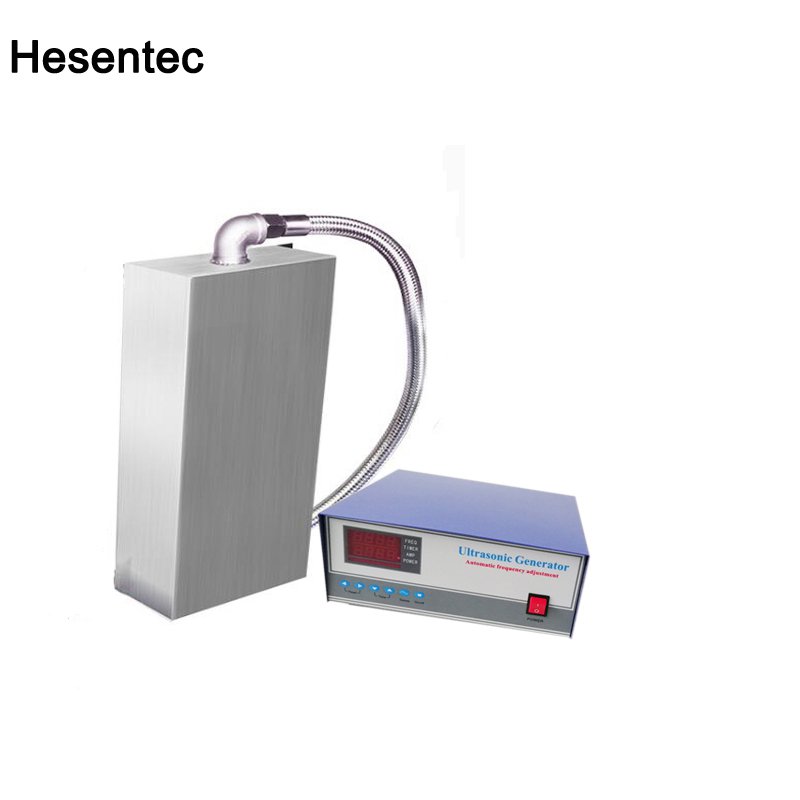

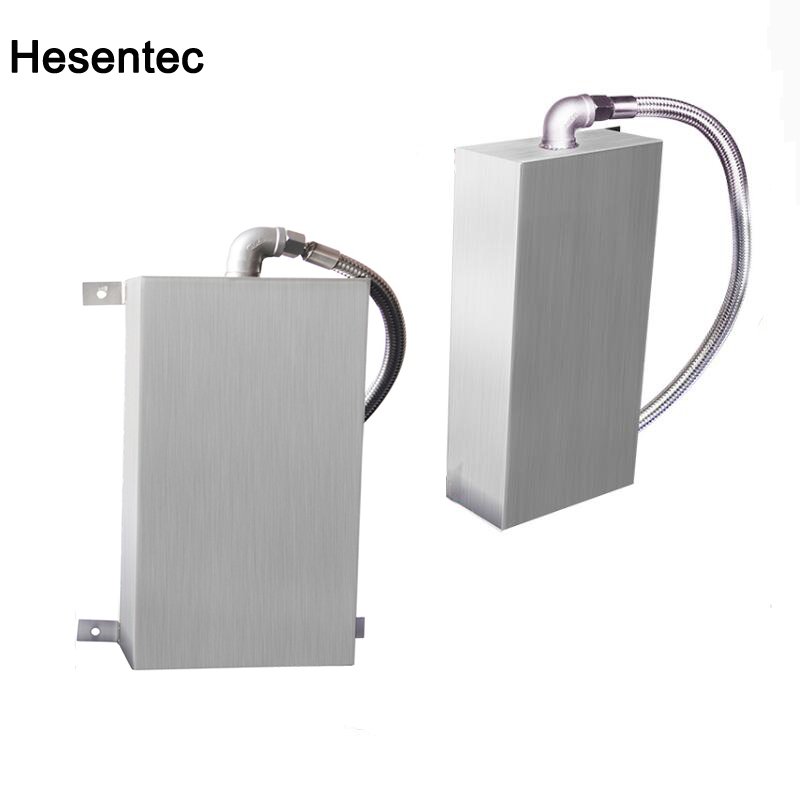

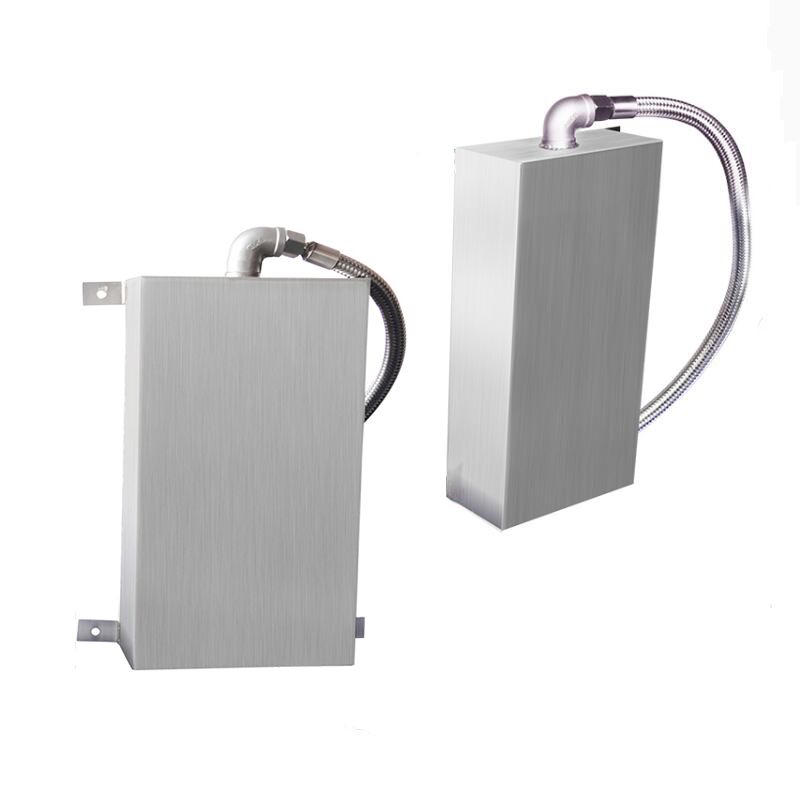

Submersible Ultrasonic Transducer And Generator For Cleaning Tank
adjustable submersible transducer power and timer for cleaning tank 1000Watt 40khz/20khz/80khz
It is suitable for cleaning electroplated parts, stainless steel hardware parts, wax removal, oil removal, metal products, copper and aluminium parts, machinery parts, zinc alloy parts, clock parts, glasses, jewelry, glassware, almost all rigid plastics, metals and hardware parts in the process of mechanical processing residual oil, polishing paste, dust and other attachments.
Full machine features Function:
1. The input type ultrasonic vibration plate device consists of vibration plate and ultrasonic generator.
The working position can be divided into bottom vibration, side vibration and top vibration to achieve different cleaning effects. Can be customized according to customer requirements.
2. All stainless steel structure, acid and alkali resistance, beautiful and durable. Titanium-gold plate with strong acid and strong alkali is used for reinforcement and infiltration welding.
3. American high Q-value oscillator has strong ultrasonic power.
The ultrasonic generator and the vibration plate are connected separately, which makes maintenance and maintenance convenient.
4. Work continuously for 24 hours to adapt to mass production.
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
