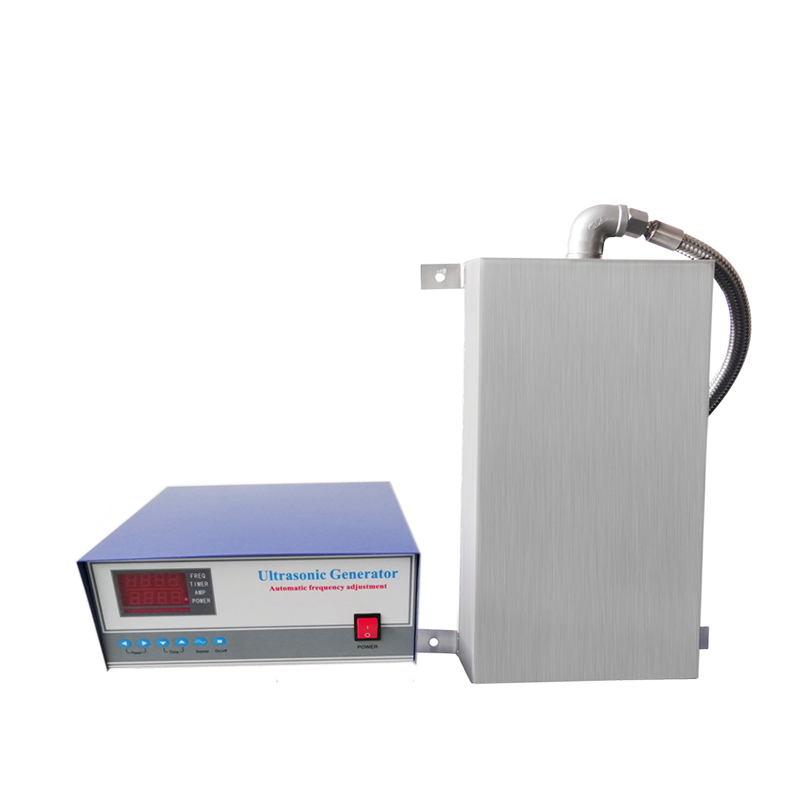

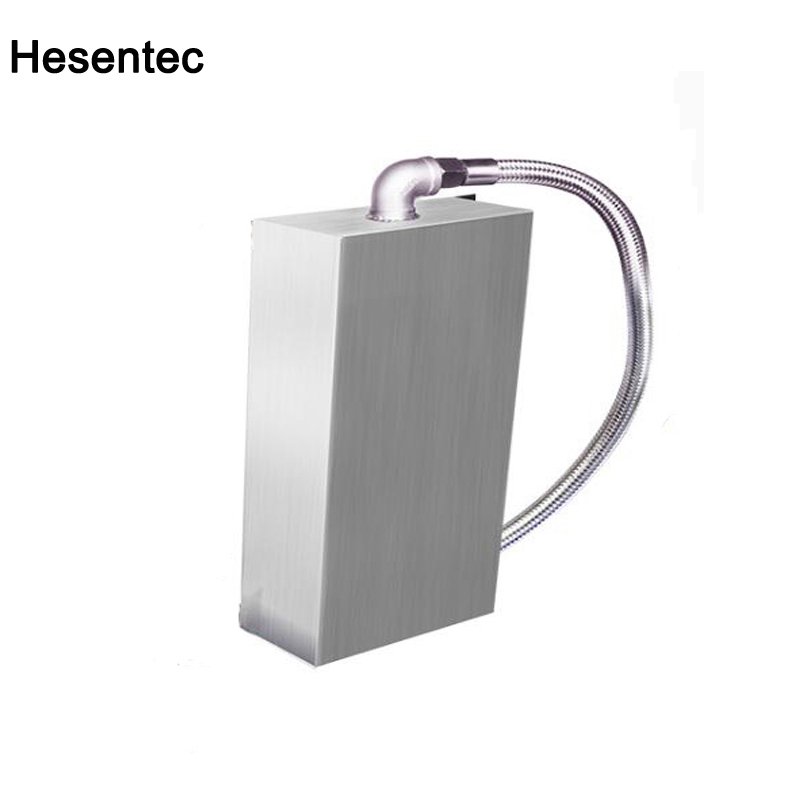

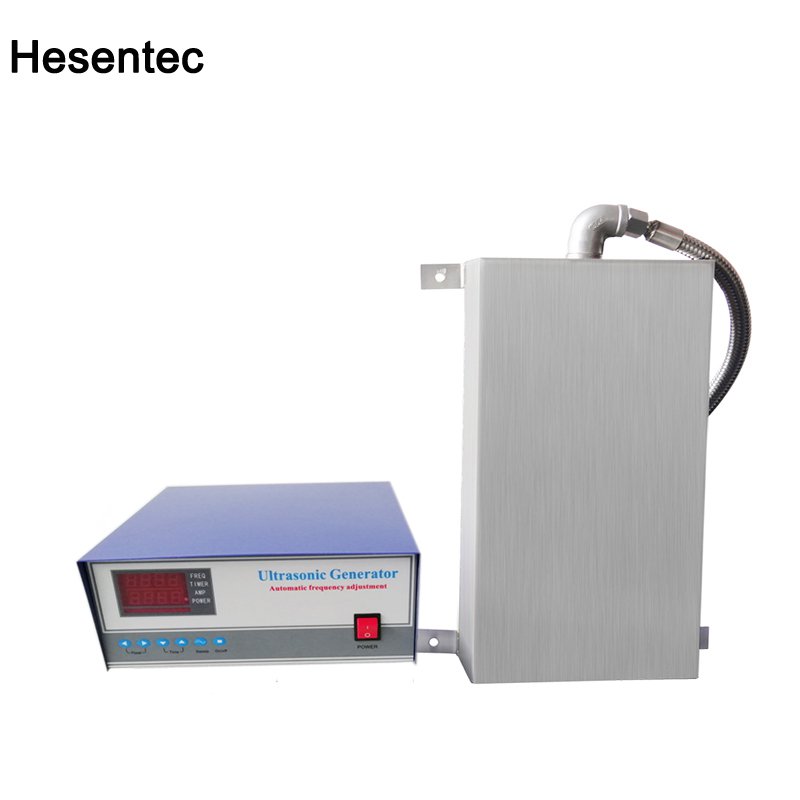

1000W Immersible Ultrasonic Generator And Transducer 28KHz/40KHz
1. Use high-strength imported glue and fix the ultrasonic transducer with welding screw to prevent leakage and dampness.
2. Vibrating plate is made of high-quality imported SUS304 2.0mm stainless steel plate. Vibrating surface is made of SUS316L.2.5mm stainless steel with hard chromium plating. Power connection line is protected by SUS304*2M stainless steel soft nozzle. Titanium alloys are used for strong acidic liquid solvents. Overall acid and alkali resistance, beautiful and durable.
3. Using advanced welding technology, laser welding, professional Japanese technicians welding vibration plate
4. One set of free spare parts can be purchased for 30 sets of products of the same specifications at a time.
5. Vibrating plate has no heat, no leakage, low noise, no whistle and low power attenuation.
6. A complete set of schemes can be made according to the specific conditions of customers.
7. Explosion-proof flakes, explosion-proof design, special sensors installed in the vibration plate can detect the changes in the internal environment of the vibration plate and timely feedback to the generator to avoid accidents.
8. Under proper operating conditions, non-man-made damage can be replaced within one year, and the oscillator will not attenuate within two years.
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
