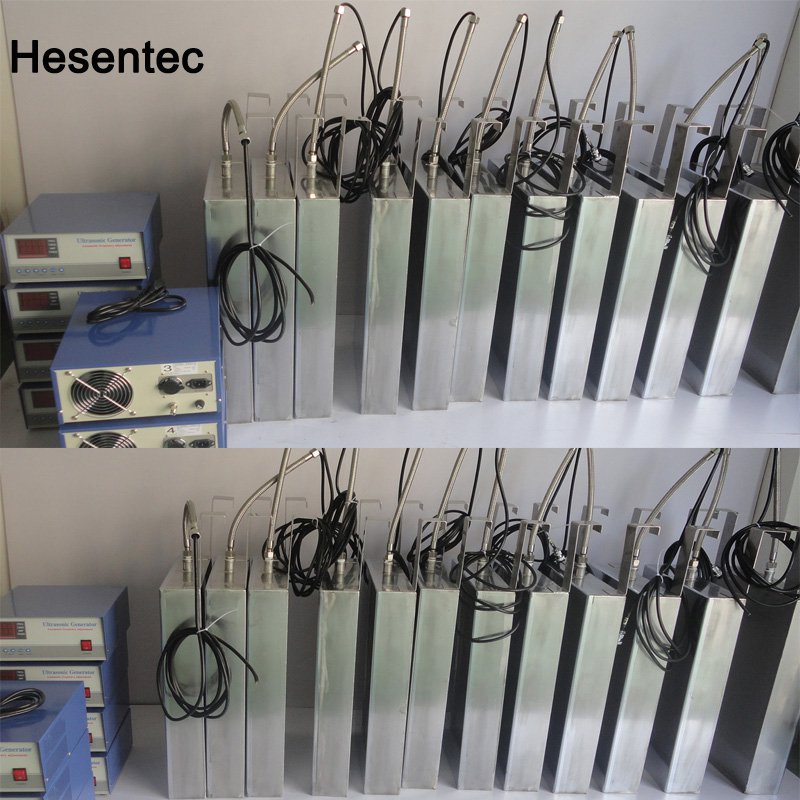

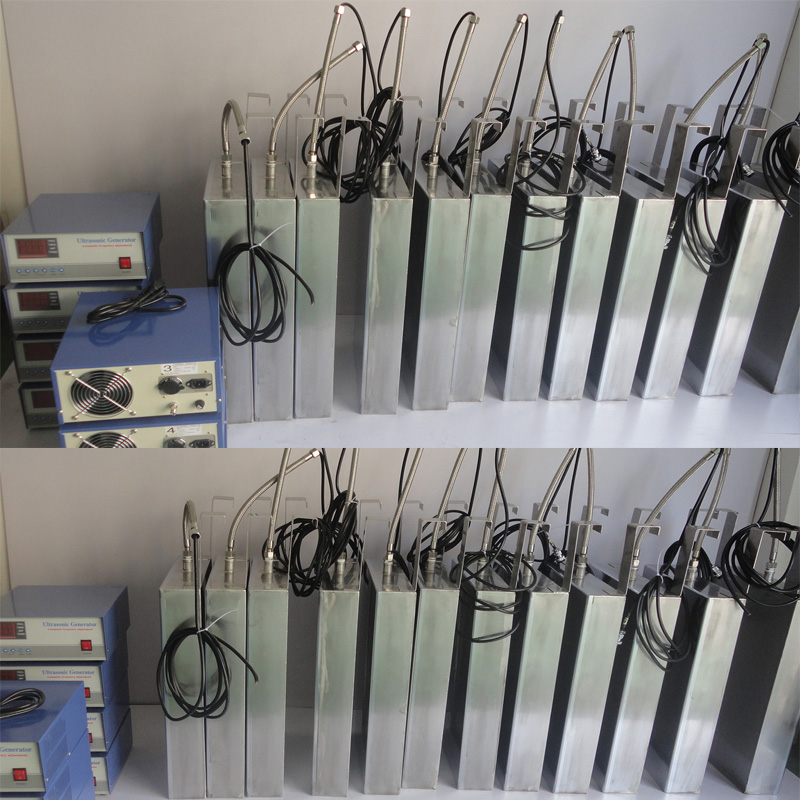

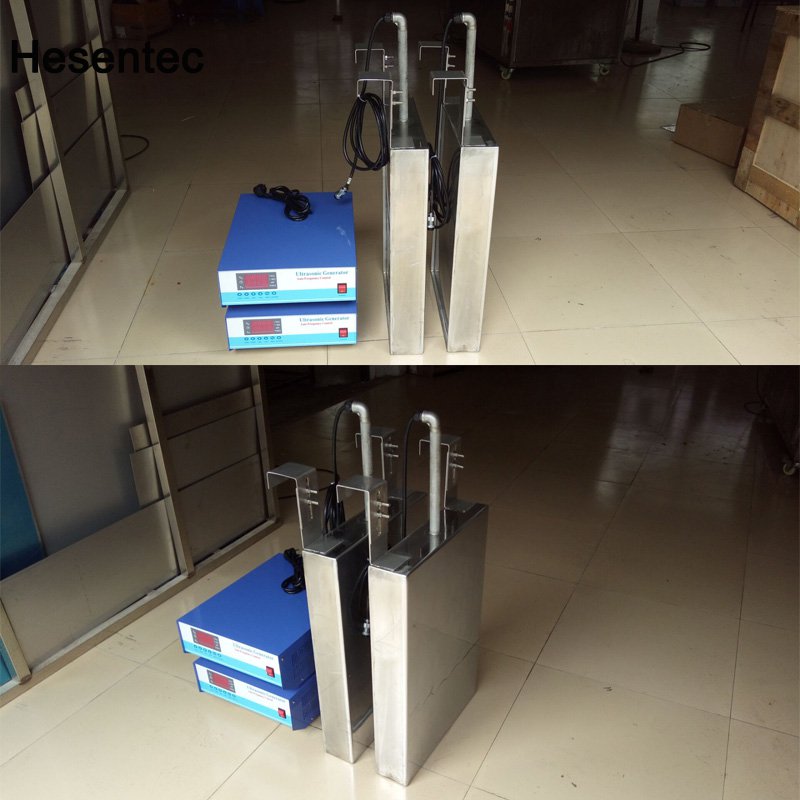

Submersible Ultrasonic Cleaning Transducer With Generator 1200W
submersible ultrasonic transducer: Ultrasonic transducer uses high frequency sound waves of ultrasonic waves to oscillate, stir the solution, clean the utensils, and even wash clothes. The input type ultrasonic vibration plate device is composed of a vibration plate and an ultrasonic generator. When the standard type of ultrasonic cleaner is not suitable for a specific working environment, in addition to the special specification ultrasonic cleaner, a push-type shock plate device can also be used. In the existing equipment, if there is a common cleaning tank, the vibration plate device can be added and converted into an ultrasonic cleaning machine.
Watch and jewelry industry: remove sludge, dust, oxide layer, polishing and so on.
Chemical and biological industries: cleaning and descaling of experimental vessels.
Optical industry: degreasing, de-sweating, cleaning, etc. of optical components.
Textile printing and dyeing industry: cleaning textile spindles, spinnerets, etc.
Petrochemical industry: cleaning and unblocking of metal filters, chemical containers, and cleaning of exchangers.
Other: photosensitive material manufacturing, paper making, liquid defoaming in certain food areas (removing dissolved air).
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
