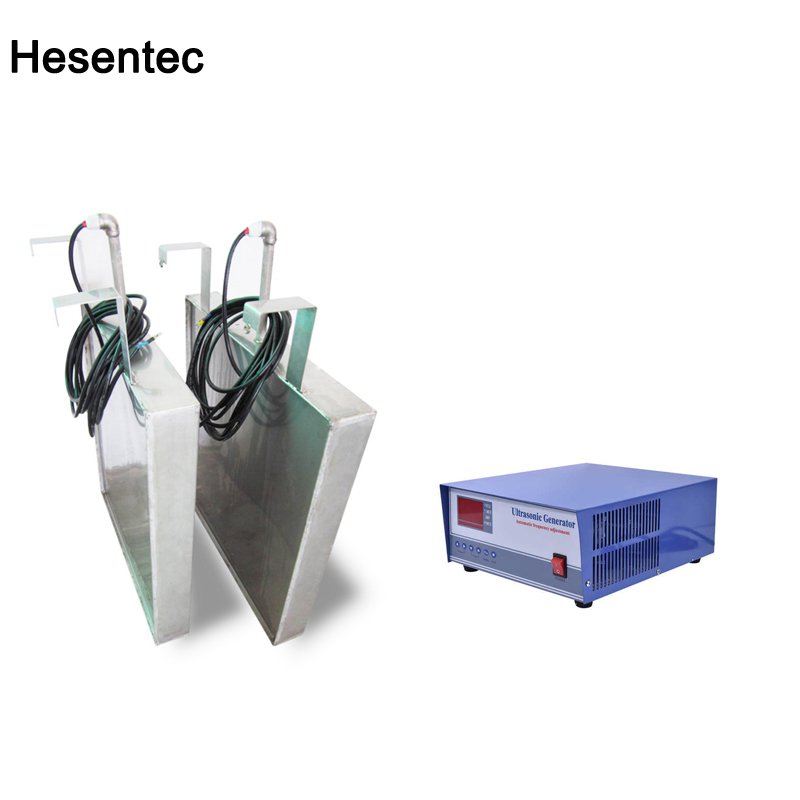

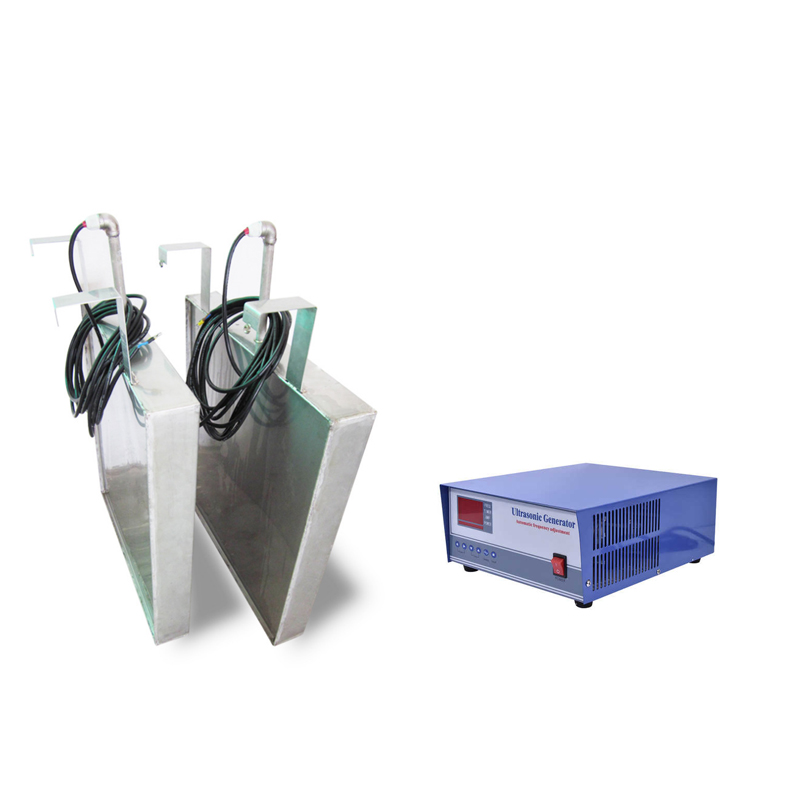

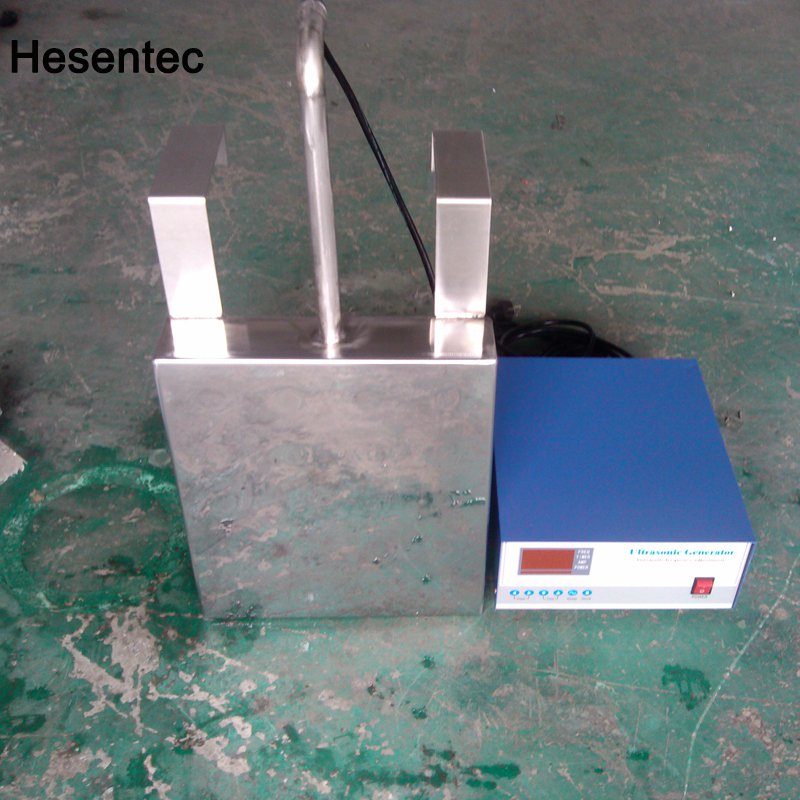

28KHz/40KHz Industrial Cleaning Immersible Ultrasonic Transducer
Machinery and equipment cleaning advantages:
Good cleaning effect, high cleanliness and uniform cleanliness of all workpieces
_Cleaning speed is fast and production efficiency is improved
_No need to touch the cleaning fluid by hand, and clean the deep holes, slits and hidden parts safely and reliably.
_No damage to workpiece surface
_Save solvents, heat, workplaces and manpower, etc.
Features of Machinery and Equipment Products:
Material: Imported SUS304 2.0mm stainless steel plate is used for manufacturing, and vibration surface is made of SUS316 2.0mm stainless steel plate.
_Structure: The whole machine is easy to install or move with a movable hook device. The ultrasonic transducer is fixed with special imported glue and welding screw. The frequency is 28KHZ/40KHZ. The whole machine has stainless steel structure.
Electrical system: Electrical components are manufactured with imported high-quality parts, so as to achieve zero failure and reduce unnecessary troubles caused by the need for professional maintenance in the use process.
_Ultrasound Generator: Using digital frequency synthesis technology under the control of micro-computer, the ultrasonic power can be continuously adjusted (digital display). It has perfect protection functions: overheating and overcurrent protection. It also has four-bit timer, which makes the time control accurate to second. It also has the function of sweeping frequency.
Power supply: heating: 220V/50HZ
Scope of application: cleaning hardware, electronics, clocks, machinery, tools, glasses, jewelry, semiconductor silicon, polyester spinneret, polyester filter core and glassware.
Dimensions are customized according to VIP's requirements!!!
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
