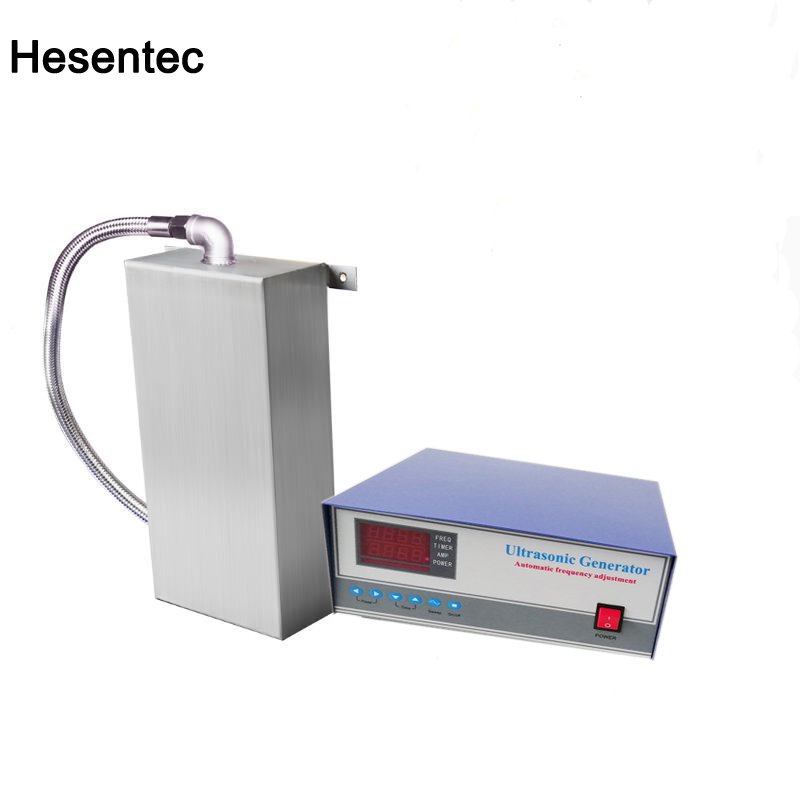

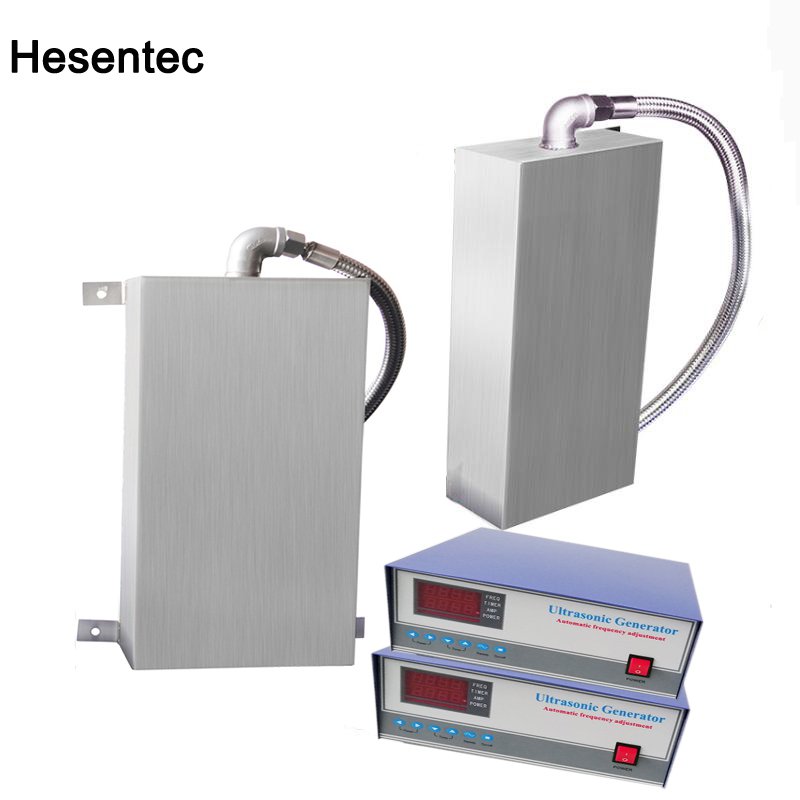

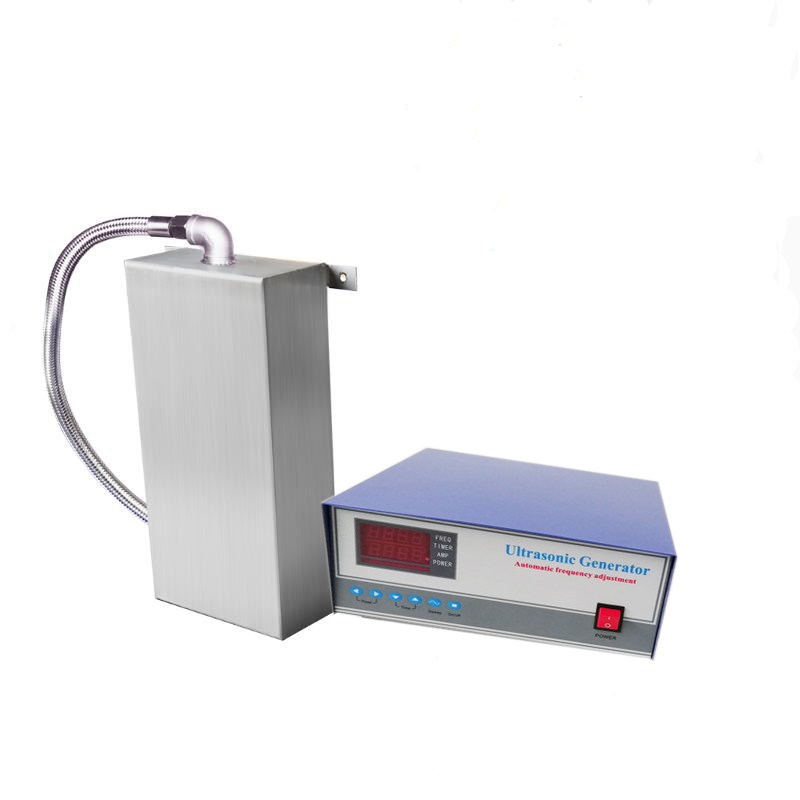

Submersible Ultrasonic Transducer Ultrasonic Vibration Board 28K
When the standard type of ultrasonic wave can not be applied to a specific working environment, the input type of ultrasonic vibration plate device can be used. The working position can be divided into bottom shock, side shock (side shock) and top shock, so as to achieve different cleaning effects.
Product characteristics:
1. It is composed of shock plate and ultrasonic generator. The two parts adopt split structure and are connected by high frequency electric wire for easy maintenance and maintenance.
2. All stainless steel structure, acid and alkali resistance. Titanium-gold plate can be used in strong acid or alkali environment.
3. The imported high-efficiency transducer (oscillator) has strong ultrasonic power. It can work in 24 hours and has a long service life.
It is suitable for cleaning electroplated parts, stainless steel hardware parts, wax removal, oil removal, metal products, copper and aluminium parts, machinery parts, zinc alloy parts, clock parts, glasses, jewelry, glassware, almost all rigid plastics, metals and hardware parts in the process of mechanical processing residual oil, polishing paste, dust and other attachments.
|
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
|
HS-ZBH300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
|
HS-ZBH600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
|
HS-ZBH1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
|
HS-ZBH1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
|
HS-ZBH1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
|
HS-ZBH1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
|
HS-ZBH2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
|
HS-ZBH2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
|
HS-ZBH3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
|
HS-ZBH5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
|
