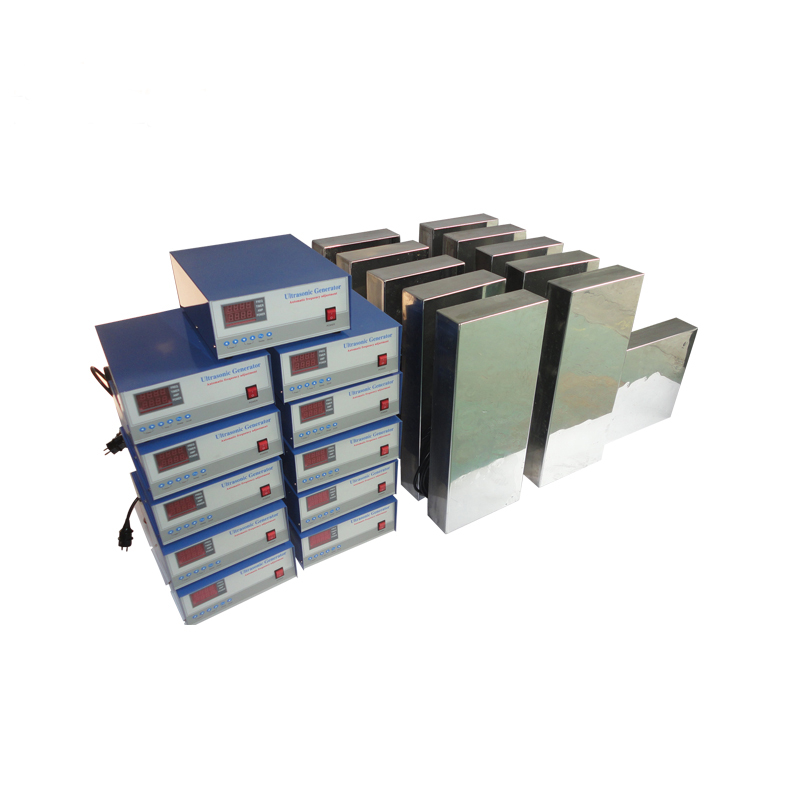

3000W Hesentec High Power Submersible Ultrasonic Transducer Pack

3000W Hesentec High Power Submersible Ultrasonic Transducer Pack Introduction

3000W Hesentec High Power Submersible Ultrasonic Transducer Pack

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.

Type Description

A
 Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
 Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
 Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
 Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
 Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
 Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
 Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
 Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
 Non-standard mounting


Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)
3000W Hesentec High Power Submersible Ultrasonic Transducer Pack
