Hesentec Immersion Submersible Ultrasonic Transducers 1800W 28KHz

Hesentec Immersion Submersible Ultrasonic Transducers 1800W 28KHz Introduction

Hesentec Immersion Submersible Ultrasonic Transducers 1800W 28KHz

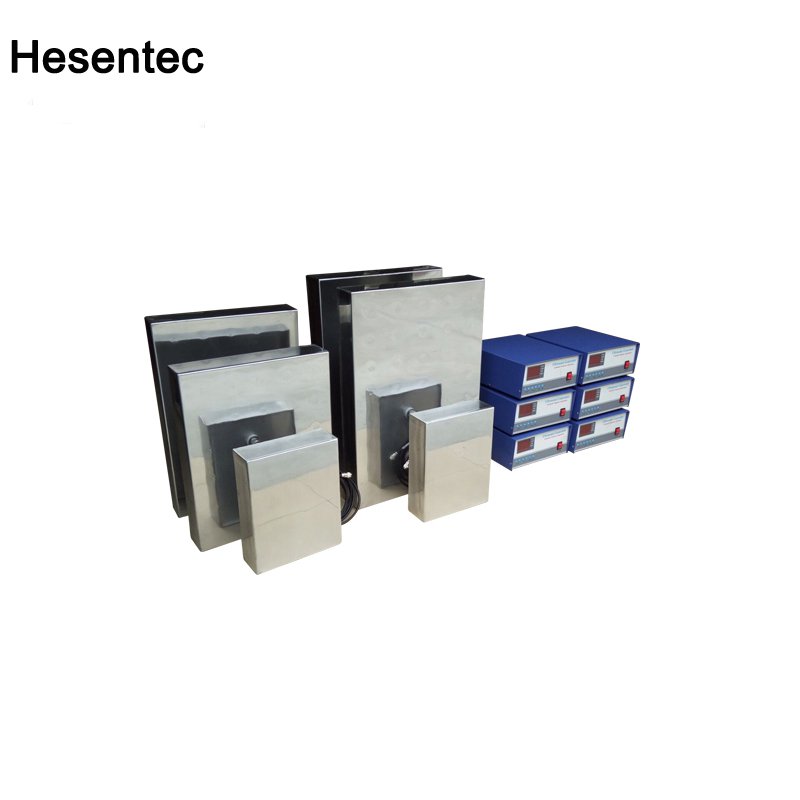

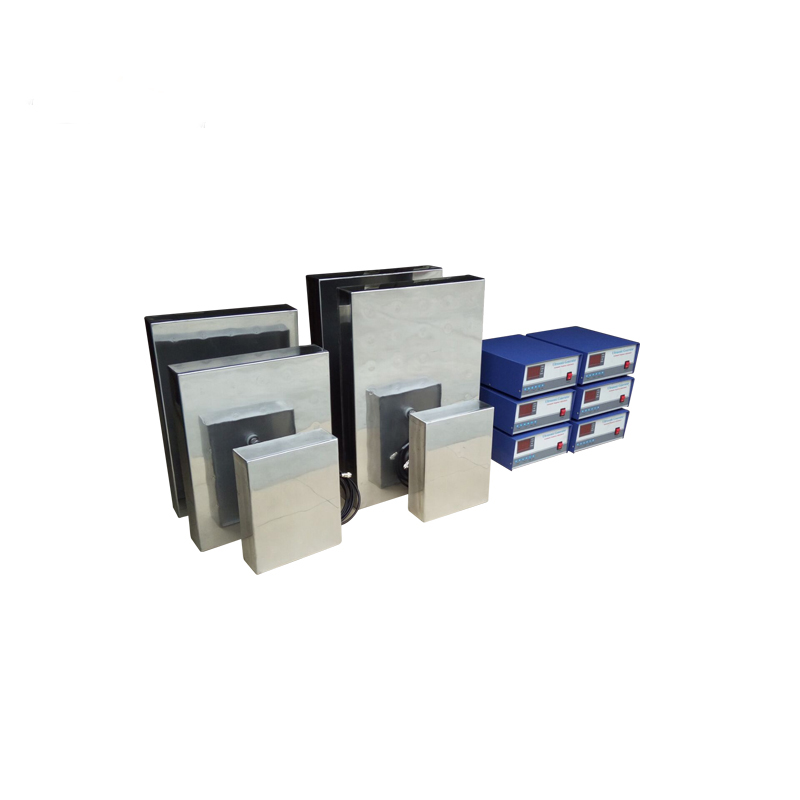

Immersion submersible ultrasonic transducers is an ultrasonic cleaning device that is used to bond ultrasonic transducers in a stainless steel case and used with an ultrasonic generator.

1 using high-quality high-performance transducer and matching intelligent high-quality ultrasonic generator, the cleaning power is strong and the performance is stable.

2 high cleaning cleanliness, suitable for all cleaning requirements

3 split structure design, easy to install and light, suitable for large cleaning lines, easy maintenance

4 shape, lead way, fixed position can be customized according to design


Application:

immersible ultrasonic transducers is suitable to cleaning work pieces of various industries;such as plating components cleaning before plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon chips,glass vessels,bijouterie,spectacle frame, etc.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）

Hesentec Immersion Submersible Ultrasonic Transducers 1800W 28KHz
