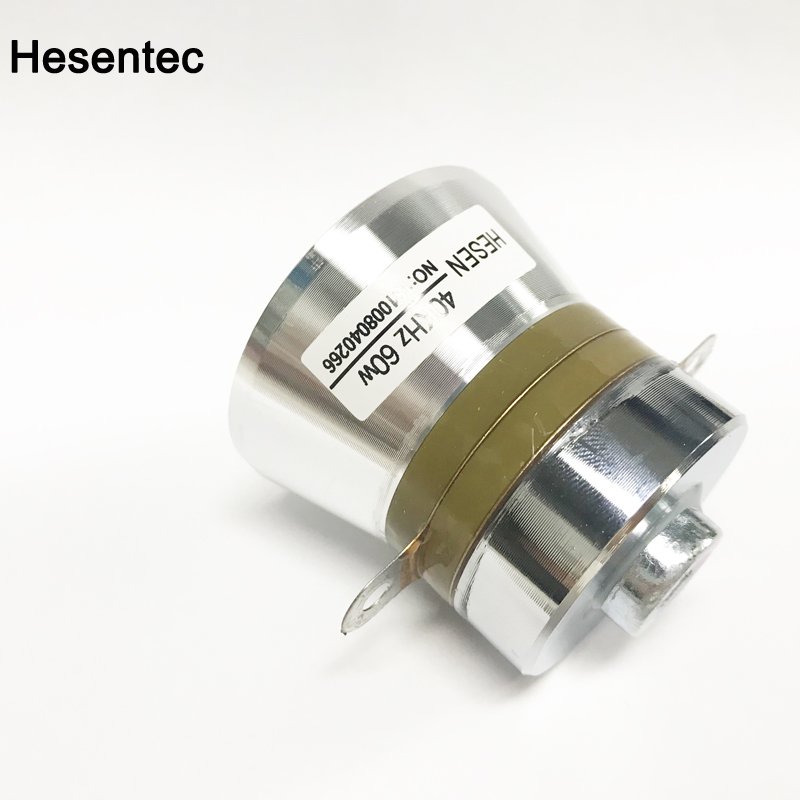

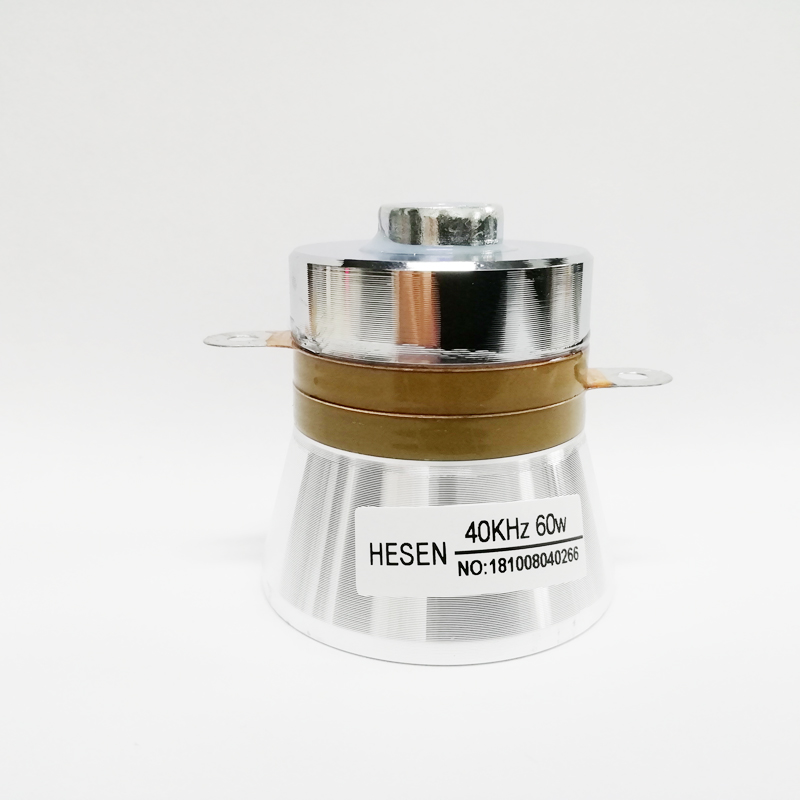

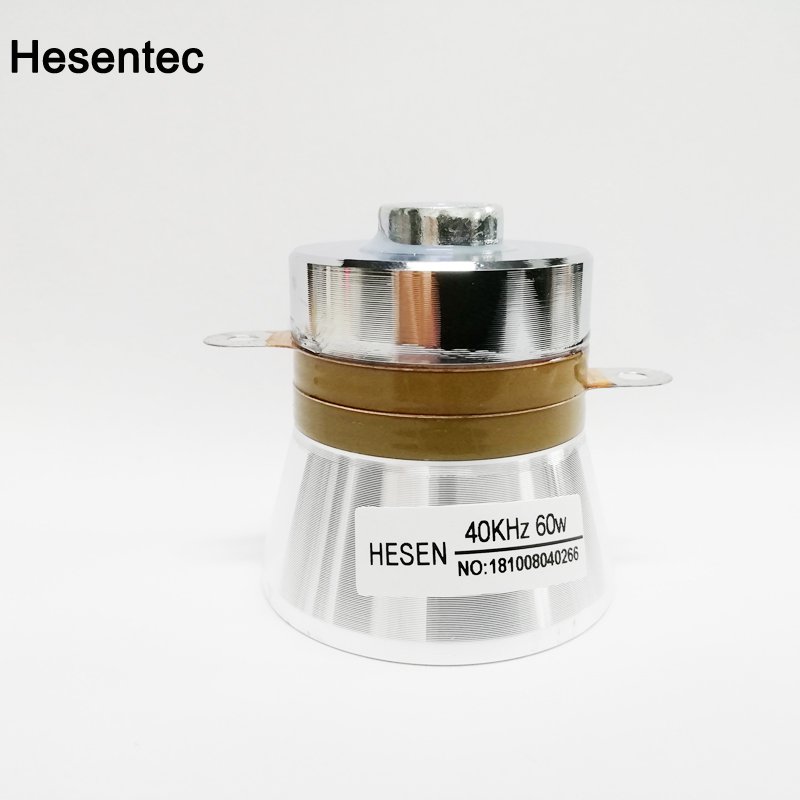

  • 40K/60W Hesentec Submersible Ultrasonic Transducer

40K/60W Hesentec Submersible Ultrasonic Transducer

40K/60W Hesentec Submersible Ultrasonic Transducer Introduction

40K/60W Hesentec Submersible Ultrasonic Transducer

The characteristics of the ultrasonic transducer produced by the company are low calorific value, good thermal stability, low resonant impedance, good consistency between frequency and static capacitance, and complete and smooth waveform of frequency and impedance.
In order to determine the working state of the transducer, the state equation of its mechanical vibration system and the state equation of its circuit system must be derived. The state equation of the transducer mechanical system (referred to as the mechanical vibration equation) is the relationship between the force and the vibration speed of its mechanical vibration system when the transducer is in working state, while the state equation of the circuit system (referred to as the circuit state equation) is the relationship between the force and the vibration speed of the transducer mechanical vibration system. Describes the vibration characteristics of the circuit system. Because the mechanical system and the circuit system of the transducer are coupled, the vibration of the mechanical system will affect the balance of the circuit, and the change of the circuit will also affect the vibration of the mechanical system. Therefore, we always use these equations to analyze and discuss the working characteristics of the transducer.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

40K/60W Hesentec Submersible Ultrasonic Transducer
40K/60W Hesentec Submersible Ultrasonic Transducer
