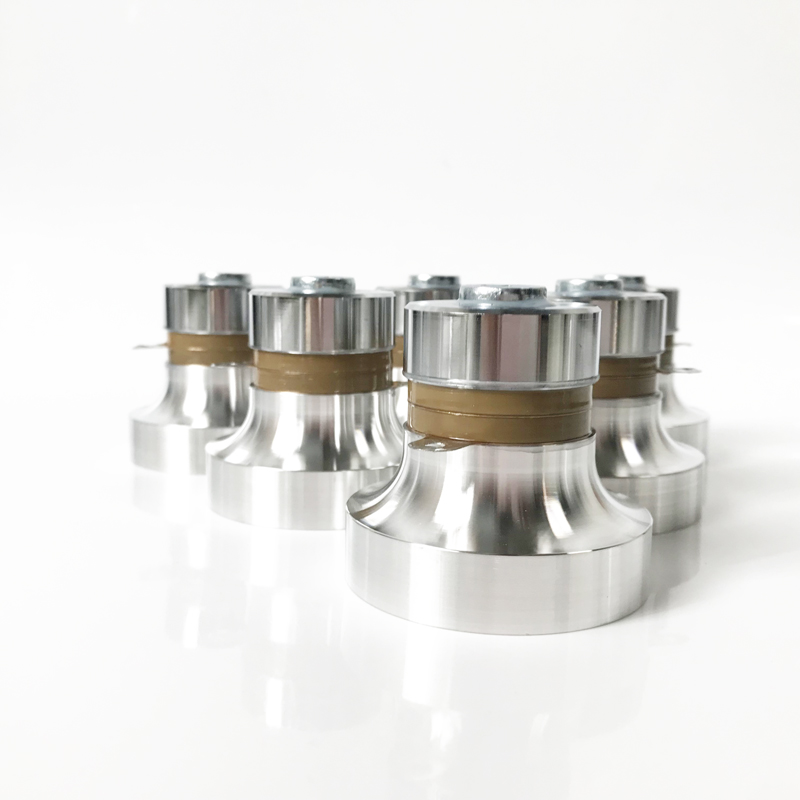

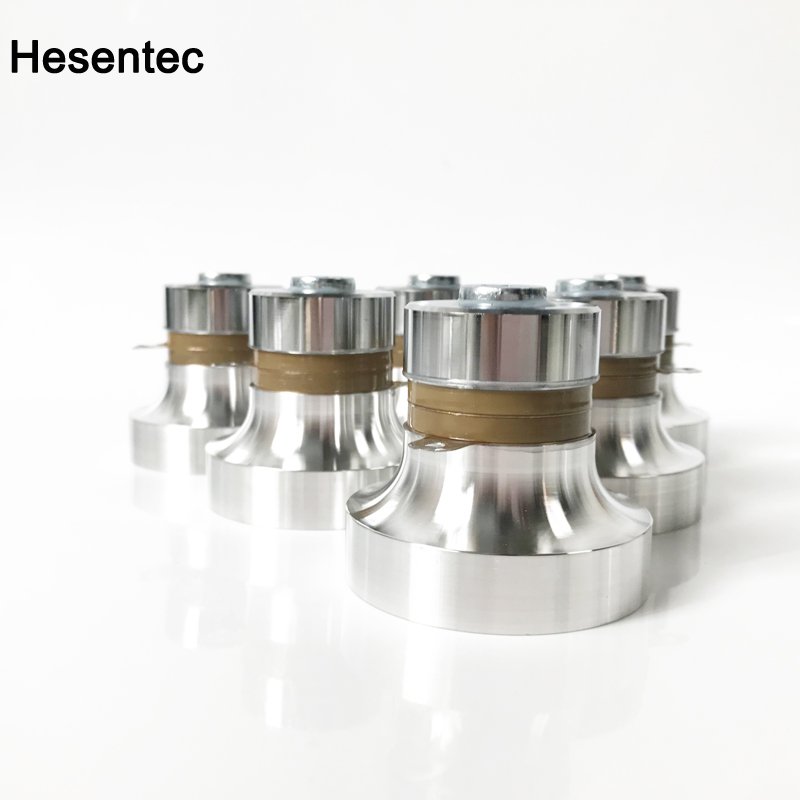

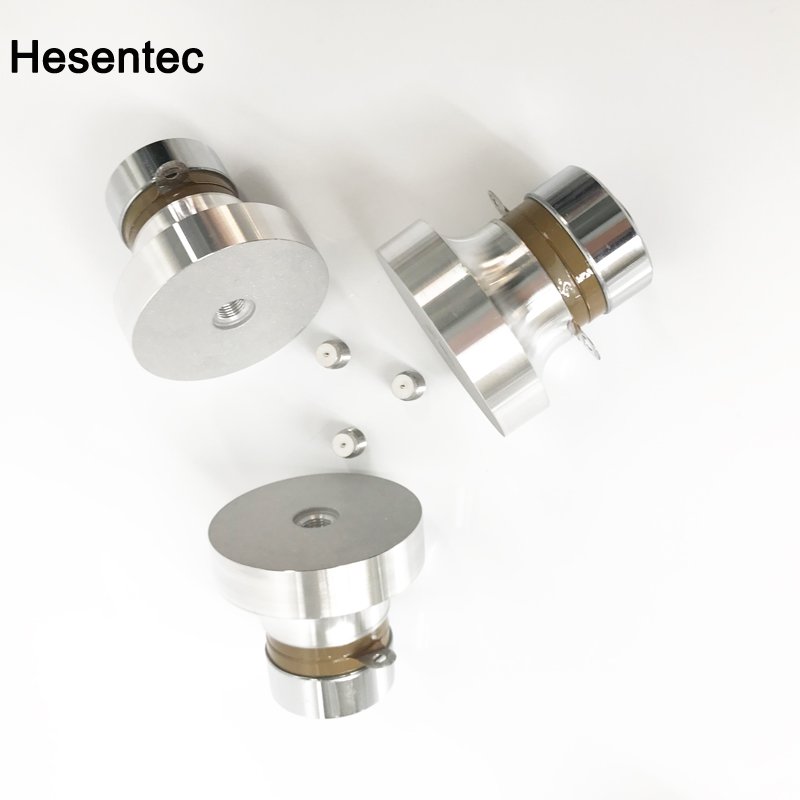

  • 28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer

28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer

28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer Introduction

28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer

The principle of ultrasonic cleaning transducer:
1. Cleaning different product layout has different requirements, such as the degree of oil contamination, the degree of difficulty in cleaning, the level of cleaning requirements, the design of cleaning process, all require targeted choices.
2. The arrangement of oscillators is not the more the more dense the better, the appropriate is the best.

Low frequency (17 ~ 23KHz): When the dirt of the cleaned material is heavy or difficult to be cleaned, and the explosive impact does not cause much damage to the surface of the cleaned material, the low frequency series transducer should be selected. Commonly used industries are: magnetic industry, steam protection industry, textile industry and so on. Note that the noise of this series is large, preferably sound insulation.

Model Frequency Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SE-3828/40 28/40±1.0 3800±10% ≤30Ω 65*70 60w ≥100MΩ
HS-8SS-2540/130 40/130±2.0 3100±10% ≤30Ω 25*58 20w ≥100MΩ
HS-4SS-3840/68 38/66±2.0 4800±10% ≤20Ω 50*65 50w ≥100MΩ
HS-4SS-3840/80/130 38/79/128±2.0 4200±10% ≤25Ω 40*54 60w ≥100MΩ
HS-4SS-3840/60/80 38/65/84±2.0 4800±10% ≤25Ω 40*54 60w ≥100MΩ
HS-8SH-5020/40/60 20/40/60±2.0 5200±10% ≤25Ω 78*94 120w ≥100MΩ
HS-4SS-3840/100/160 38/100/160±2.0 4800±10% ≤25Ω 40*57 60w ≥100MΩ

28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer
28KHz/40KHz 60W Hesentec Submersible Ultrasonic Transducer
