  • Hesentec Submersible Ultrasonic Transducer With Generator 1200W

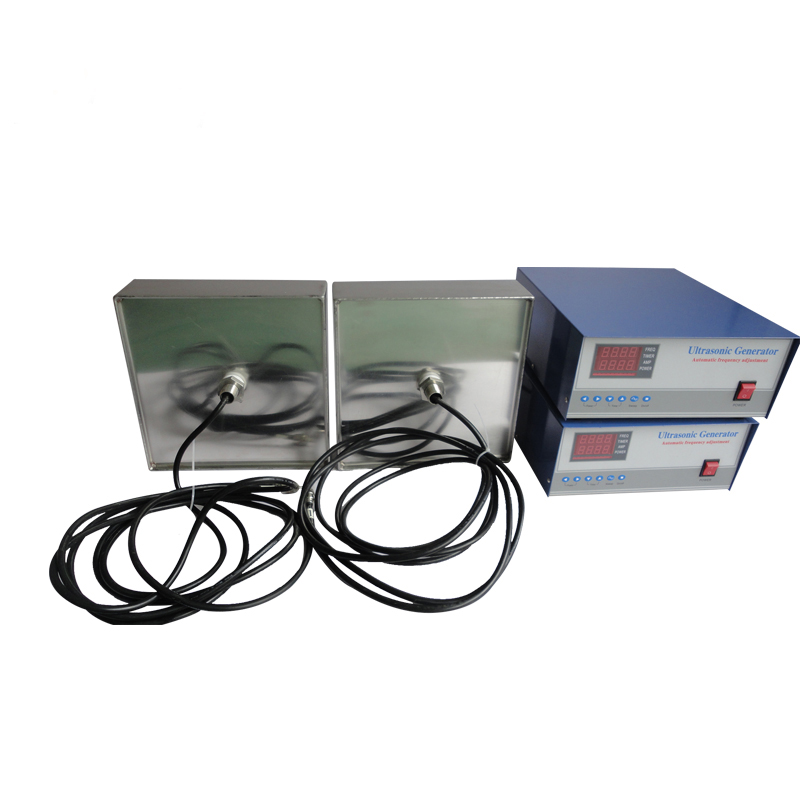

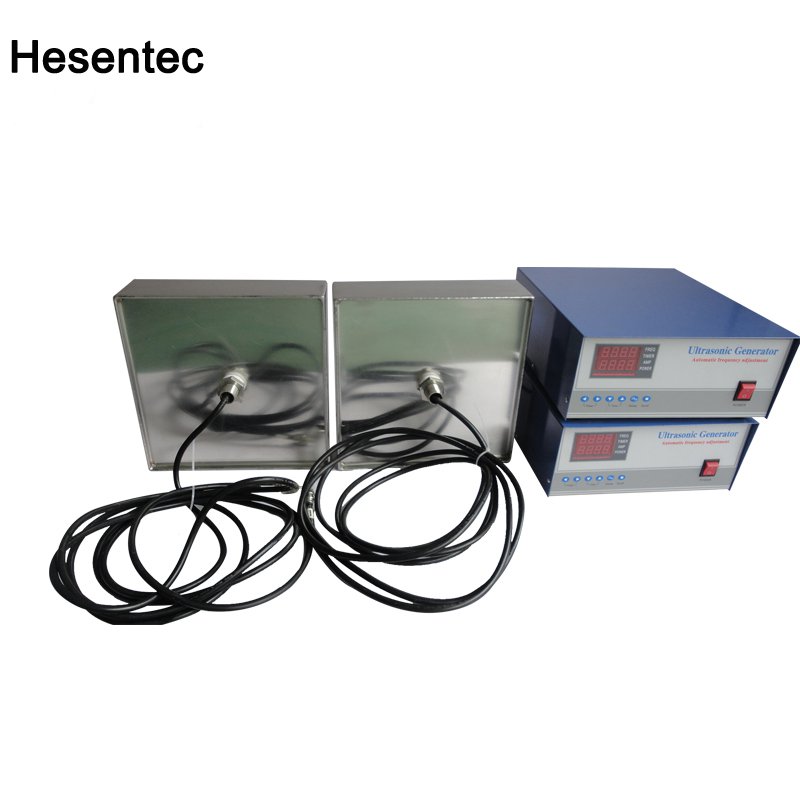

Hesentec Submersible Ultrasonic Transducer With Generator 1200W

Hesentec Submersible Ultrasonic Transducer With Generator 1200W Introduction

Hesentec Submersible Ultrasonic Transducer With Generator 1200W


Features of submersible ultrasonic transducer

The submersible ultrasonic transducer made of special technology and material has the characteristics of high stability and long service life, as follows:

1. Specially designed and carefully processed transducers have excellent performance and good consistency. Small signal electroacoustic conversion efficiency can reach more than 96%.

2. The gluing process of the first-class transducer and the monitoring range board of the bottom mobile phone card monitor can ensure that there is no debonding consideration, and the sound wave transmission path is smooth.

3. Excellent high temperature resistance makes the vibration plate work stably in boiling water at 100 °C for a long time.

4. The number of transducers is increased, so that the actual working power of each transducer is 70~80% of the designed rating, which prolongs the working life of the transducer.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
Hesentec Submersible Ultrasonic Transducer With Generator 1200W
